2024 Ocean Alexander 28E

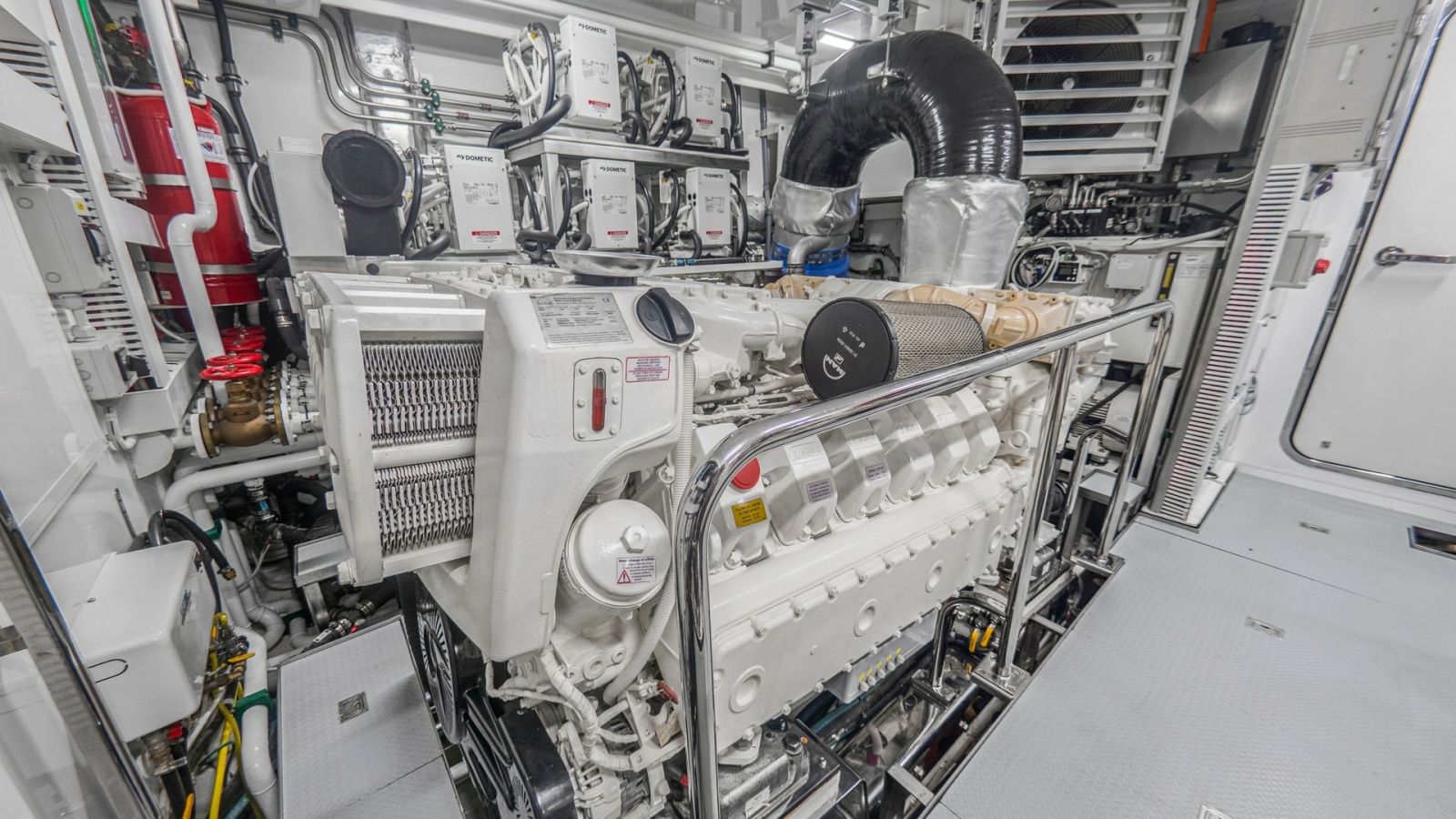

MAN V12 1650HP engine "MAN Gold Standard Warranty" includes 60-month warranty on main components: crankcase, crankshaft, connection rods, and flywheel.Stainless-steel engine stringer caps and stainless-steel removable rails on side of engines.Delta T intake/exhaust fans with variable frequency drives shall be mounted to facilitate the intake and/or exhaust of air through the machinery spaces and providing a high air exchange rate. Air intake & exhaust ducts shall have fire dampers installed with manual and automatic triggering that shall be tied into the machinery shut down circuits.Delta T moisture eliminators shall be installed at front of intake and exhaust ducts.Delta-T fans for engine exhaust located on superstructure versus hull side. Maximizes water protection and reduced salt spray intrusion into engine space, extending life of engine room components.Hard coating with Al6XN alloys on exhaust, provides higher corrosion resistance, especially in the forms of pitting, crevice, and stress cracking.Engine raw water-cooling using cupronickel 90/10 which offers superior corrosion resistance and inherent bio-antifouling.Marine grade aluminum fuel tanks with sight gauges and high/ low level alarms, welded and hydro-tested to ISO standard.Stainless-steel fuel piping system.Dometic Spot Zero Watermaker Unit - Upgraded to 2200(2) 32kw Kohler Generators

Dual (2) hydraulic vertical anchor windlass with foot switch.Dual (2) 150 lb. (68kg) stainless-steel anchors with 200' (60.96m) anchor chain (1/2" HT) each side, attached to the anchors with stainless-steel high-tensile swivels.Anchor chain wash system for freshwater cleaning of chain during anchor operation.Two 1500W, 24VDC motor capstans on aft deck, with foot switches.316 Stainless-steel pop-up cleat for tender mooring.

General:The Yacht is constructed in high-density closed-cell structural foam. High density foam allows for high temperature and advantages in thermal and acoustic insulation.Longitudinal and lateral fiberglass foam-core stringers.Fiberglass with Vinyl Ester/Epoxy infusion lamination manufacturing technology, increases strength by 20% and reduces weight by 18% compared to hand-layup.Reinforced collision bulkhead.Cross-knit carbon fiber in high stress areas to increase structural integrity and torsional strength. Water-tight bulkheads with sound proofing for engine room.Ocean Alexander employs various techniques to reduce sound and vibration. Some of these techniques include multiple insulation barriers including reflective materials, absorptive materials, dampening materials, air pockets and flexible isolation mounts for controlling sound and noise transmission.All exterior hardware to be 316 stainless-steel or per manufacturer requirements. Aluminum components meet marine grade 5052 or 6061specification.Engine foundation: Main engine stringer will be constructed from stainless-steel plates custom formed to encapsulate over engine structural stringers. Allows for industry leading support and isolation.Frameless windows.Exterior ceiling panels removable for easy service of navigational electronics and plumbing runs.Sound insulation above bilge mechanical areas with rubber mounts for motorsLightning protection system. Lightning arrestor pole installed on mast with dedicated ground cable to grounding plate attached to underwater hull surface. Minimizes potential lightning strike damage to yacht electrical and critical systems.Hull / Bottom: Interior structural components all bonded to hull.Three coats of "self-polishing" antifouling bottom paint shall be applied on three anti-blister epoxy barrier coats, "Seahawk" paint or equivalent.Rub rail with 316 stainless-steel striking plate. Bronze through-hull fittings.Metallic painted hull Stardust Silver M7905

Ocean Alexander designed oversized shafts, rudder, and other drive train systems typically one-class larger than the competition. This result in superior handling and longevity in the Ocean Alexander drive-train system.High-performance computer designed and machined Nibral propellers.Twin Disc Hydraulic steering system.Stainless-steel rudders with integrated zinc plates.Ocean Alexander 5-blade propellers to provide better holding power and handling.Ceramic coating for 22HS shaft offering extra protection from crevice and corrosion, anti-fouling and reduce marine growth. (Usually found in military/commercial vessels)Utilization of laser-assisted calibration instrument to ensure alignment of the drive shaft.

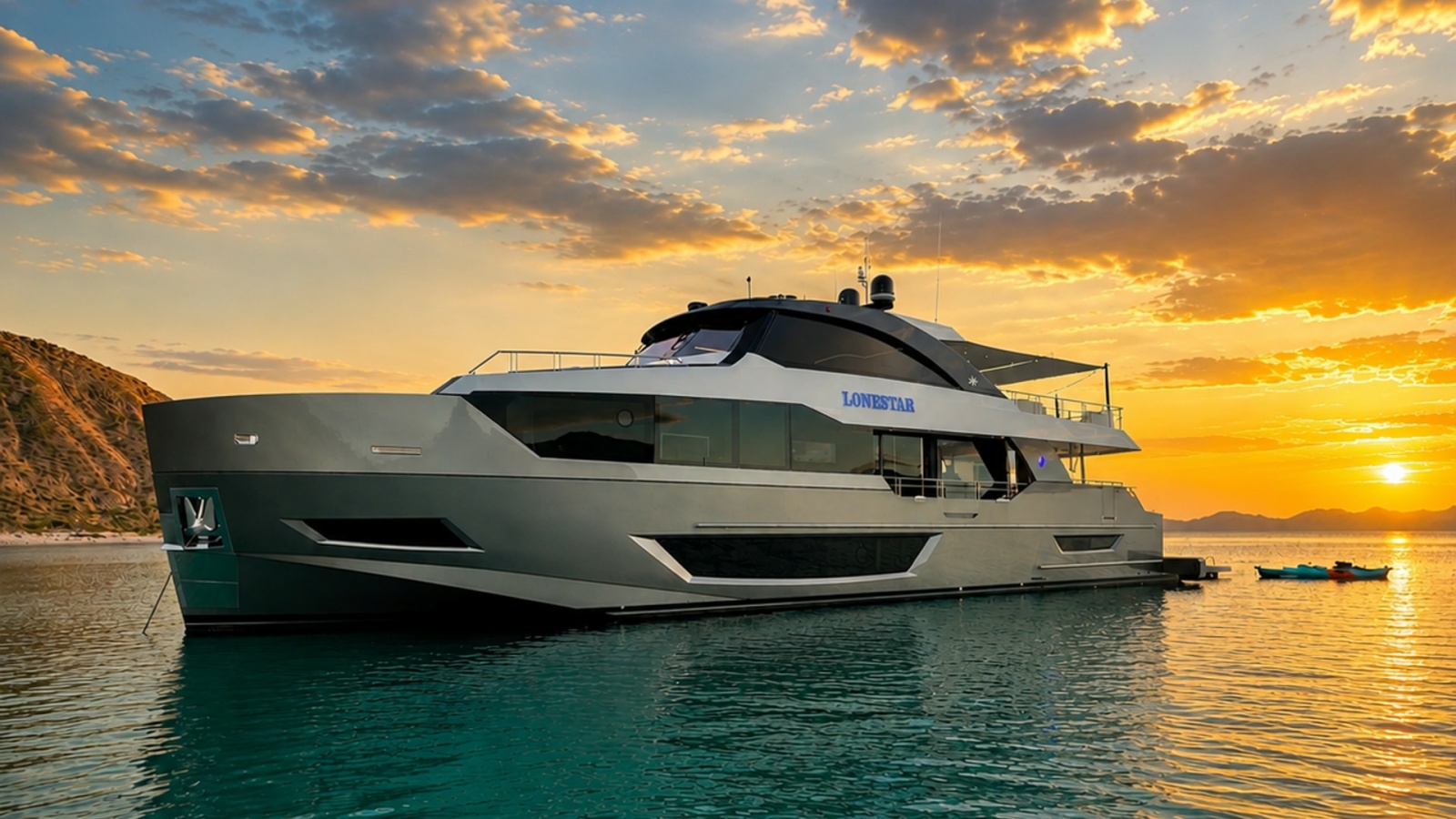

Built with a GRP hull and GRP superstructure, with teak decks, she benefits from a semi-displacement hull to provide exceptional seakeeping and impressive speeds. Powered by twin diesel MAN (V12-1650) 1,650hp engines. Her low draft of 1.25m/4'1" makes her primed for accessing shallow areas and cruising close to the shorelines. Her water tanks store around 1,700 Litres of fresh water.Global Cruising Package:50/60 Hz Power Converter.Electrical transformer allows for automatic marina connection irrespective of 110V/60 Hz (USA) or 220-240V/50 Hz (European/Australia) standards.Swappable wall plugs convert between 110V/220-240V and 50/60 Hz.True global yachting and global resale capability.Inverter Package:Upgrade 100AMP charger to inverter/charger. (5000W/120AMP)Allow inverting from DC batteries to AC circuits.Blue-Power full function programmable controller.Extended Cruise Package:Install on yacht as back-up, 2nd freshwater pump and hot water pump.Custom 5/5 potholder for cook-top for securing pots.Additional washer and dryer in lower utility.Additional full height freezer in lower utility room

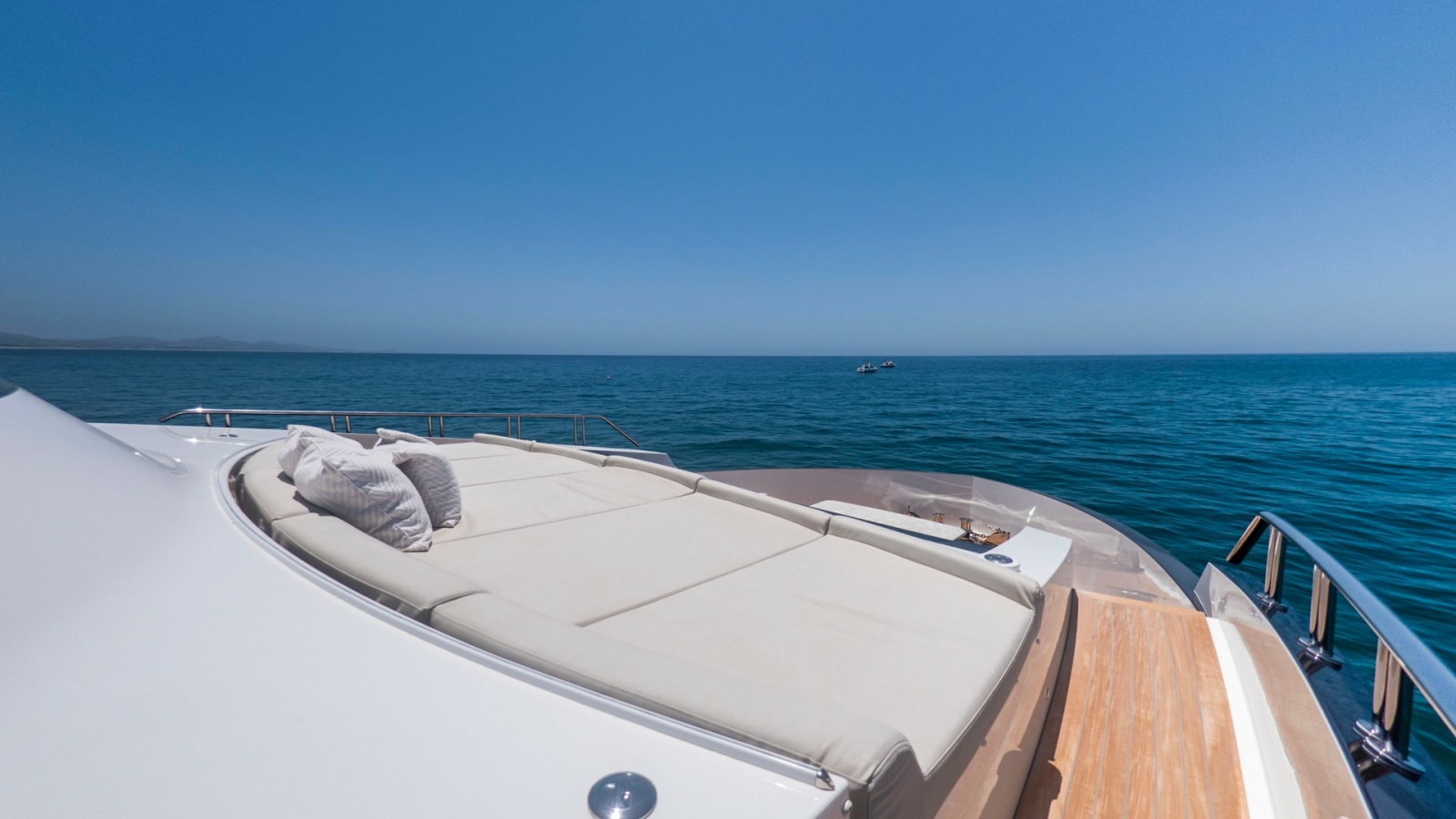

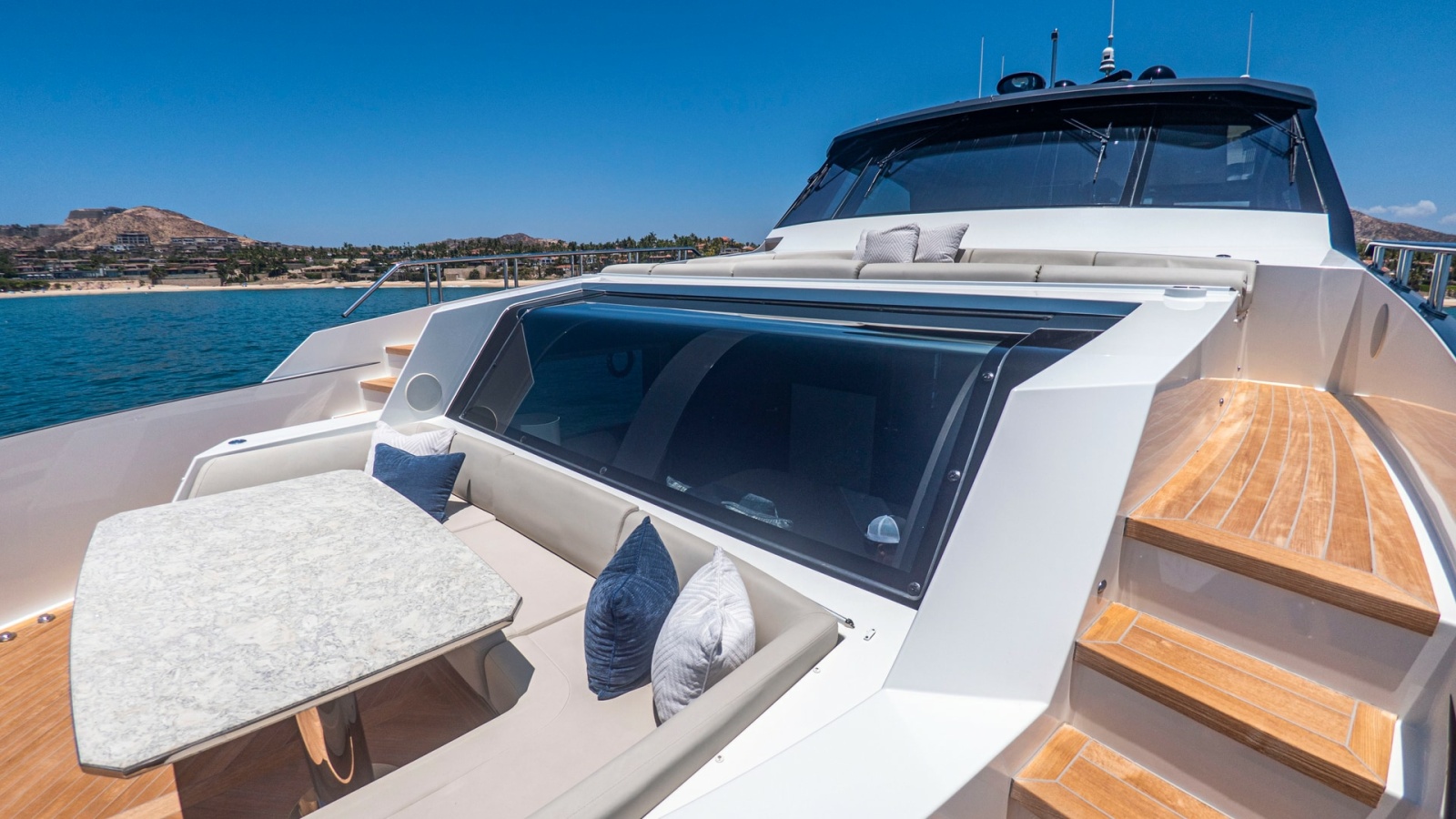

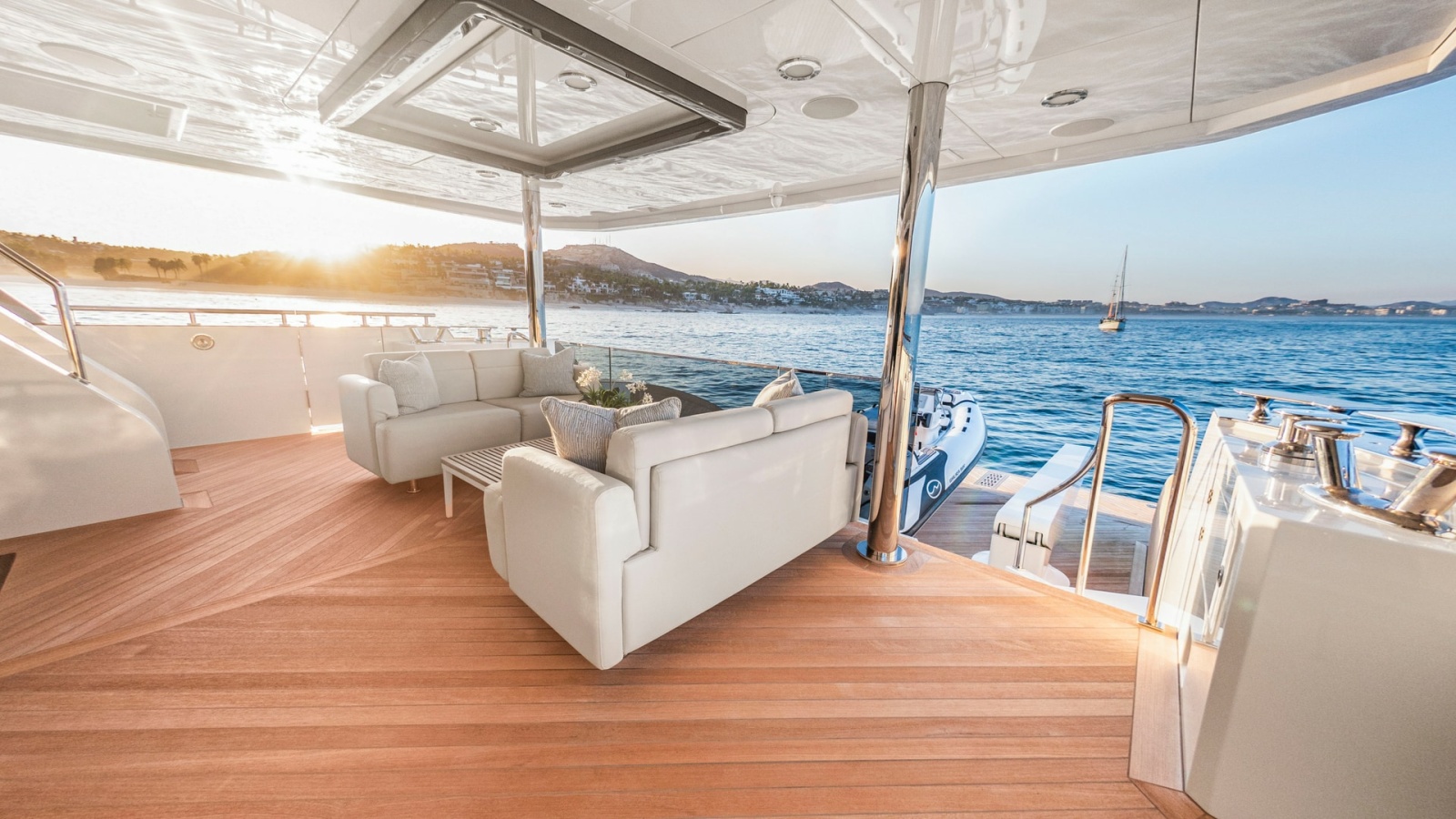

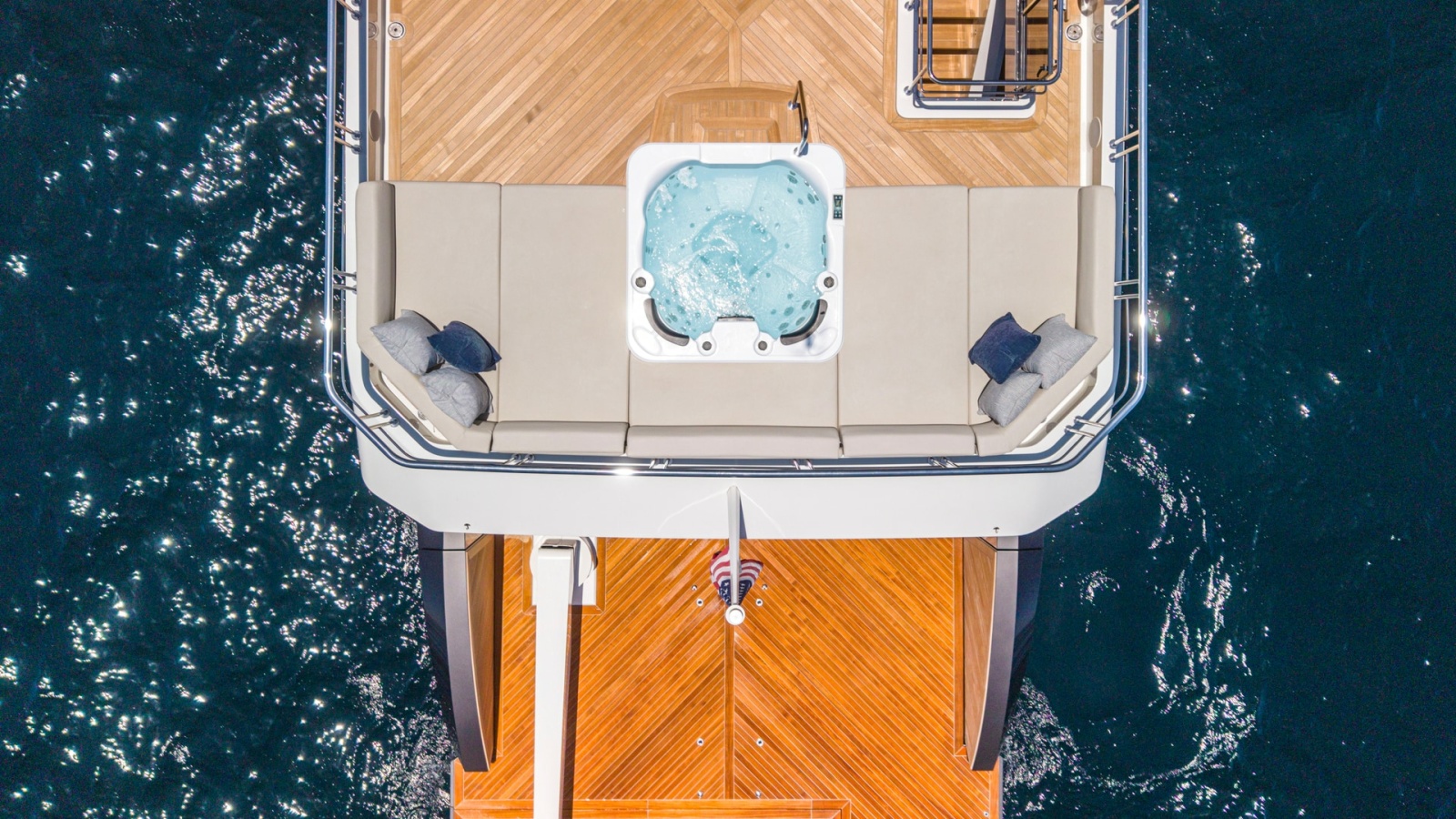

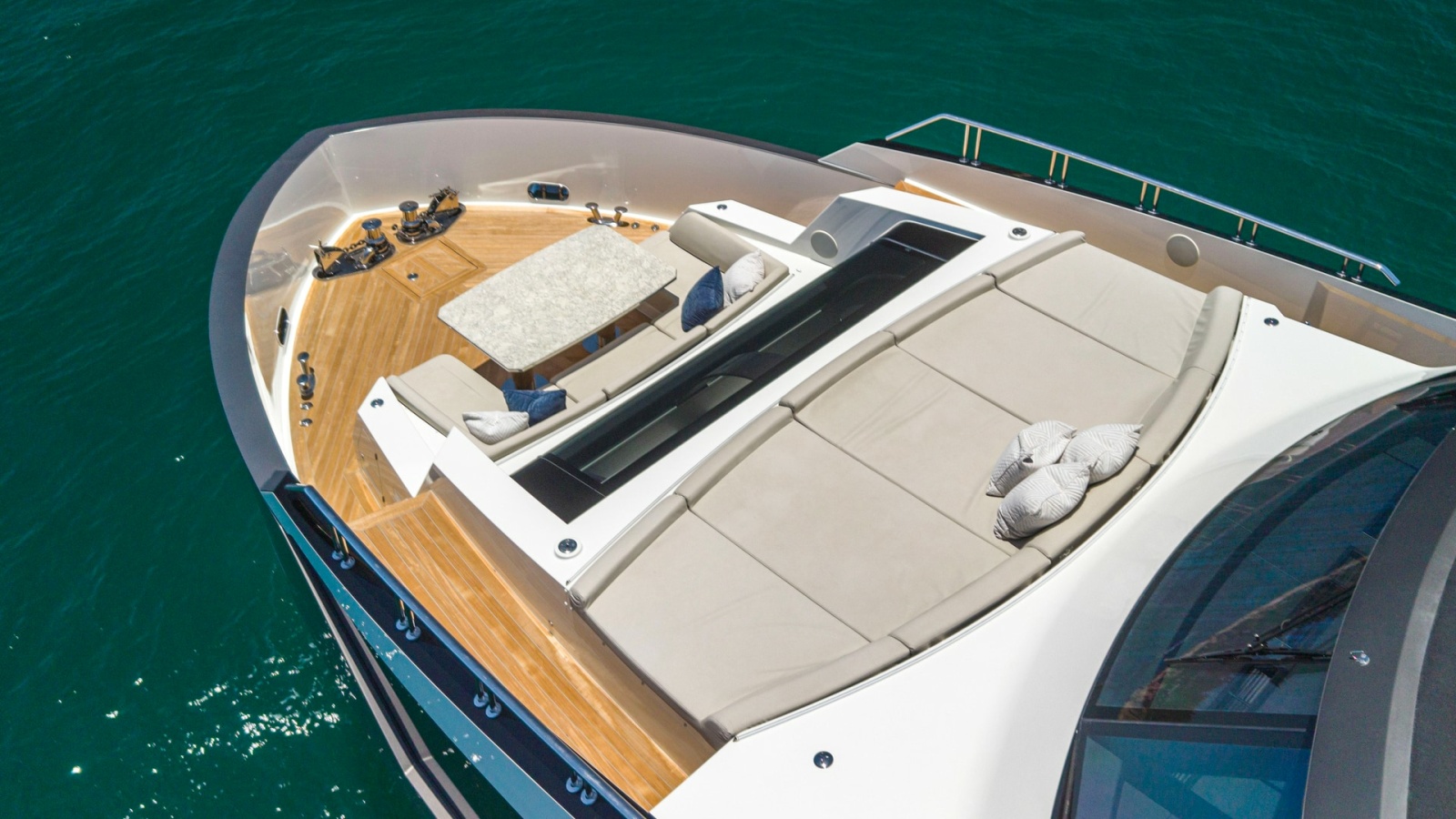

Yacht quality Italian door hardware.Windows with dramatic architectural details allowing for greater visibility and incoming natural light. Hardtop with dedicated custom removable 316 stainless-steel ladder to navigational electronics.Elliptical 316 stainless-steel handrails & stanchions. White non-skid decks.316 stainless-steel cleats.One aluminum flagpole at stern. Side boarding gate in cockpit.Sun pads & settee at bow. Flush mounted deck lights.Sink with faucet, drawers for storage and bait-tank at transom. Elka shower rod with flush connection at swim step.Teak Deck Package:Main deck (aft deck to bow).Steps from aft deck to boat deck.Steps from swim deck to aft deck.Swim deck.Boat deck.4-person Jacuzzi on boat deck with 18KW water heater. Exterior Convenience & Awning Protection Package:Sun awning for boat deck, swim step and bow with custom-made fiber glass poles and marine grade exterior Ferrari mesh fabric. Includes custom designed built-in storage for poles.Custom exterior protection canvas covers for exterior cabinetry and windshield mesh cover.Boat deck hatch.Custom-designed exterior factory-built settee package with coffee table at boat deck.Boarding ladder with teak steps.Bow concealed "pop-up" lights (4x).30" electric barbecue and fridge at boat deck.High output LED underwater lights 7x (three at stern, two on each side of port and starboard side). Afterdeck custom ceiling feature with indirect lighting.

Electrical (AC/DC System):OctoPlex NEMA 2000 electrical safety/security control system. Based on aerospace technology for remote activation, control and status reporting of all AC and DC breakers. Monitors all power sources (AC and DC) for voltage, frequency and amperage abnormalities and provide visual and audio alerts. Includes enhanced circuit breaker functionality with no-load indication. Brown-out capabilities provide sensors for main doors, tank level, bilge and battery monitoring of current, voltage and temperature.This security/safety automatic monitoring and alert capabilities include using Apple iPad or Android for remote access to operate, view, and arm OctoPlex data and navigation system with remote notification accessibility.Shore power connections: Two CM-8 100Amp cable master with 85' (25.9m) cables with lso-boost which manages voltage drops due to shore power by boosting output voltage, thus keeping electric system stable.Mechanical/ Electrical Convenience package:Lube oil change system for engines and generators.Gulfcoast Fuel polishing system based on US Military Abrahams-M1 Tank design.Compressed air in engine room and aft deck.USB outlets in lieu of Panasonic intercom system.Military grade searchlight and spreader lights for swim step and boat deck.Dimmer package for interior and exterior main ceiling lights.Starlink - Onboard intranet, driven by commercial grade 4G SIM card capable Wi-Fi router. Allows outside 4G Internet card and/or internal intranet net connection via supplied iPad to Systems monitoring, and other onboard video/audio equipment apps.Plumbing:316 Stainless-steel water tank with sight gauge.Headhunter fresh-water system.Freshwater wash down at bow, stern and upper deck.Dockside water connection.Two 40-gallon (151liter) hot water heater with high density insulation and dual high efficiency heating element that speeds heating by 50%.Dometic Water maker - Upgraded to 2200/per day4 stage best in class freshwater filtration/sterilization package.Air Conditioning:Dometic system throughout, rated for "Extreme Tropical Climates" [with reverse cycle for operation down to 50°F (10°C) water temp].Refrigerant type is accepted worldwide under the Montreal Protocols.Dedicated engine room air conditioning.Ocean Alexander Clean Air System incorporates in-duct Nano-mesh UV sterilization technology in Salon and MSR to remove up to 99.9% of bacteria, fungi, mold, virus, fumes, and reduce odors. System has no moving parts, is completely silent and ozone free. Ensures fresher, cleaner, and healthier air onboard.

Navigation Package:Garmin 8700 Series Black Box with (3) 24" touch screens.Garmin GRID remote input device installed on helm chair.Garmin 25KW Open Array RadarGarmin Autopilot GHC20ICOM VHFGarmin Card ReaderGarmin Blackbox sounderGarmin AIS with NMEA GPSGarmin Marine Cameras (2 in engine room and 1 aft deck).KVH TracVision UHD7 satellite TV antennaRitchie Compass 5"iPad with built-in Garmin App for navigational control/viewing via iPad.

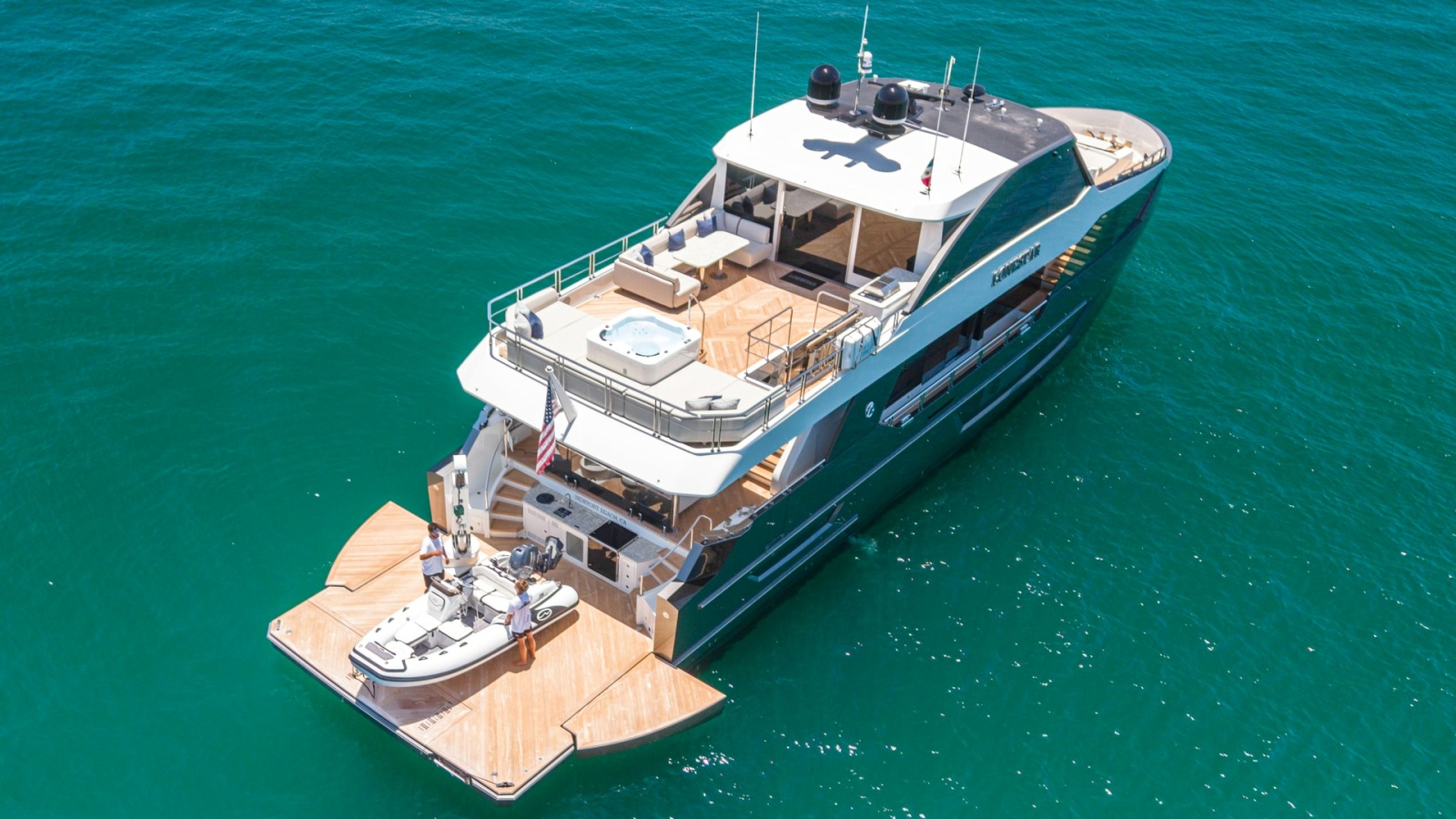

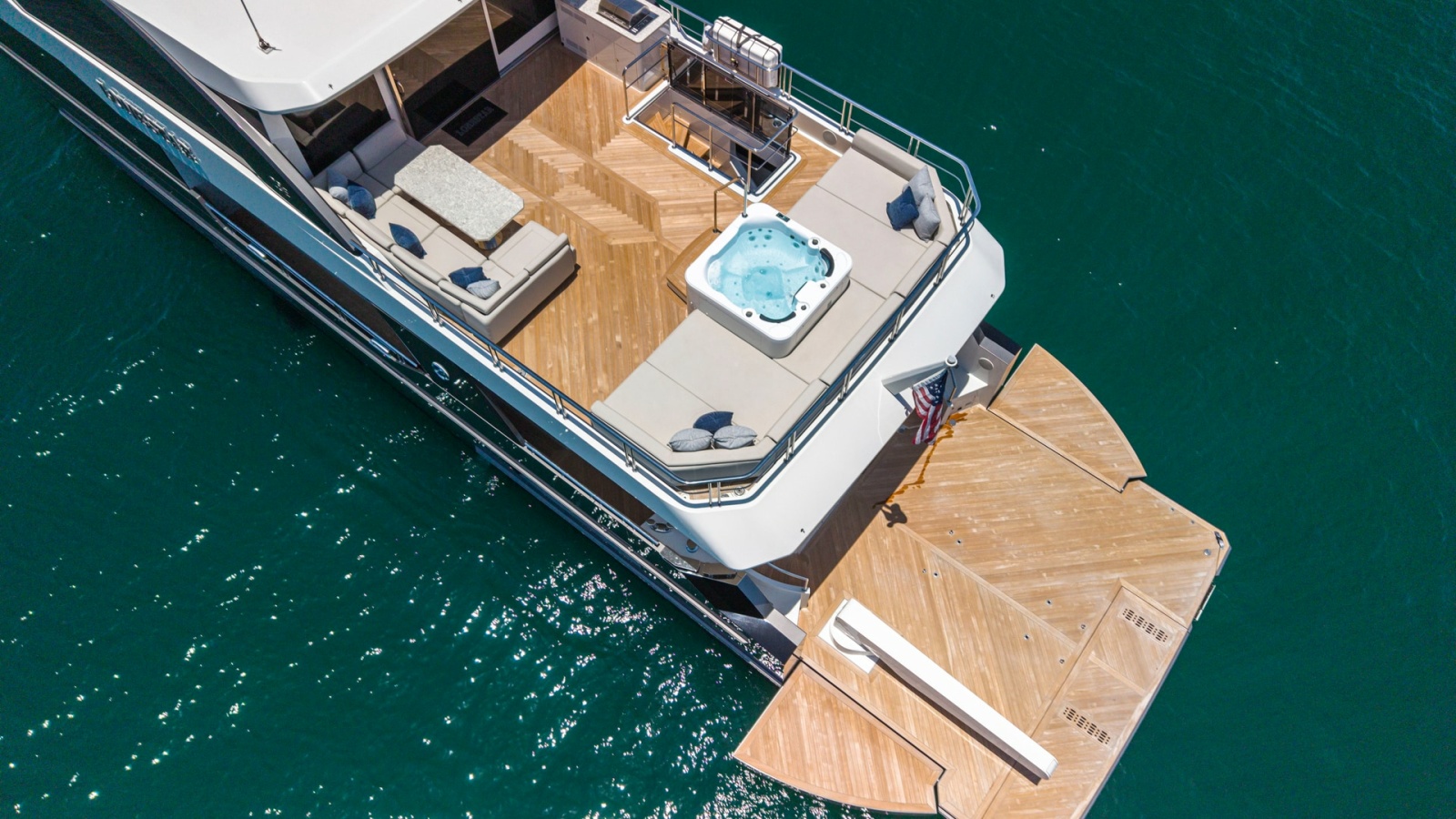

Aft on the lower deck is a transparent glass-enclosed "beach club" area that leads down to a hydraulic swim platform perfect for snorkeling or lounging right on the water. A standard davit/crane is incorporated for launching tenders or water bikes. Double fold-out bulwarks on starboard and port side of multi-function platform to extend beam increase from 20'5" (6.2m) to 26'10" (8.2 m)332 sq.ft. (30.8 sq. meters) of teak- covered space allowing for private beach experience without leaving the vessel2,500 lbs. (1,134kg) crane on multi-function platformcapable of holding two full-size jet skis, two SEABOBs, and a 16' (4.8m) Tender (Customer supply)Hydraulic 1,000 lbs. (453kg) capacity Hi-Low swim platformElectric gangway on starboard transomAft-deck transom structural reinforcement per Froude Friction Evaluation for towing tender base on towing force for an approximate 45ft Length (13 ft beam), 25,000 lb. displacement boat, with capstan

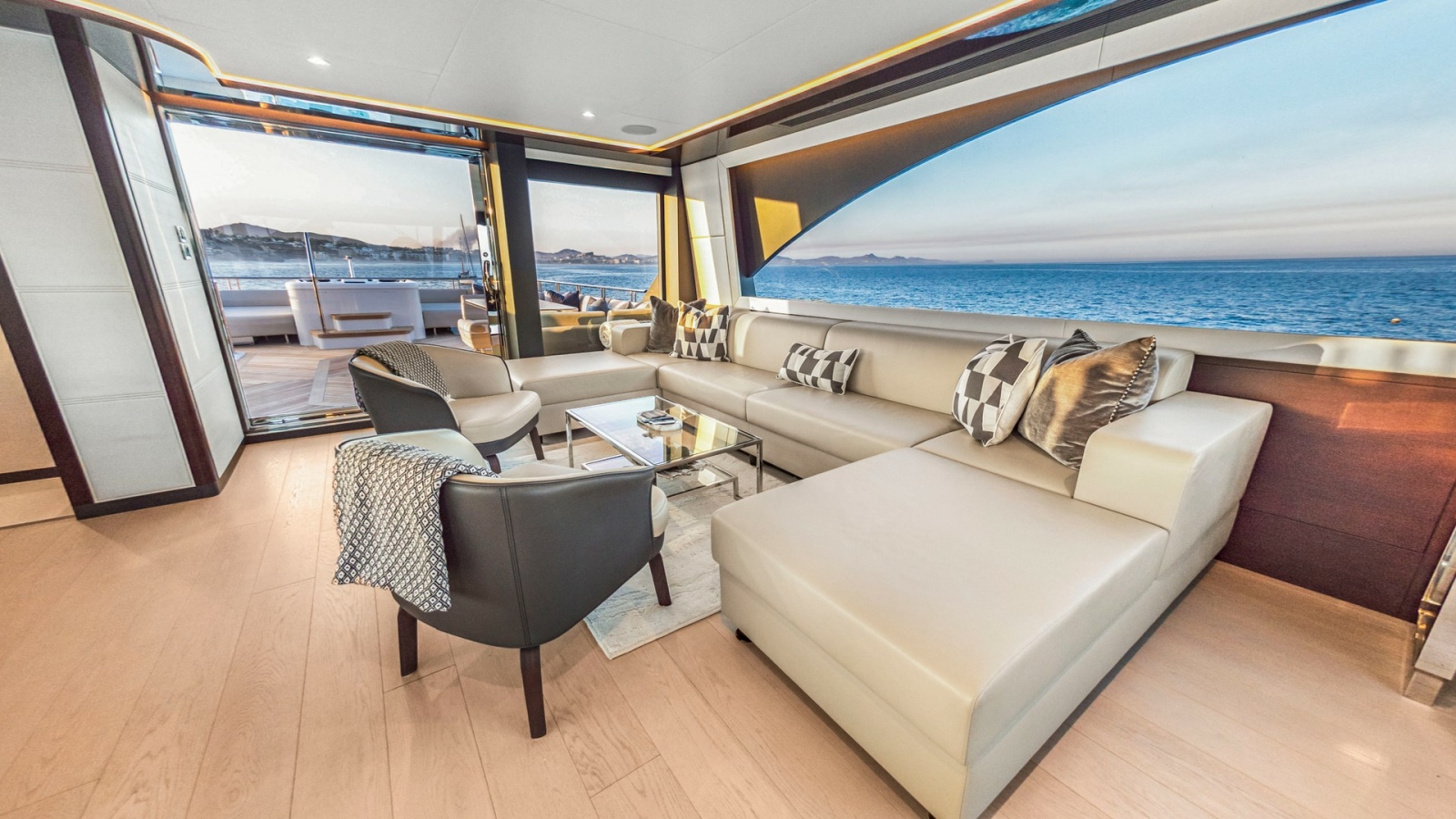

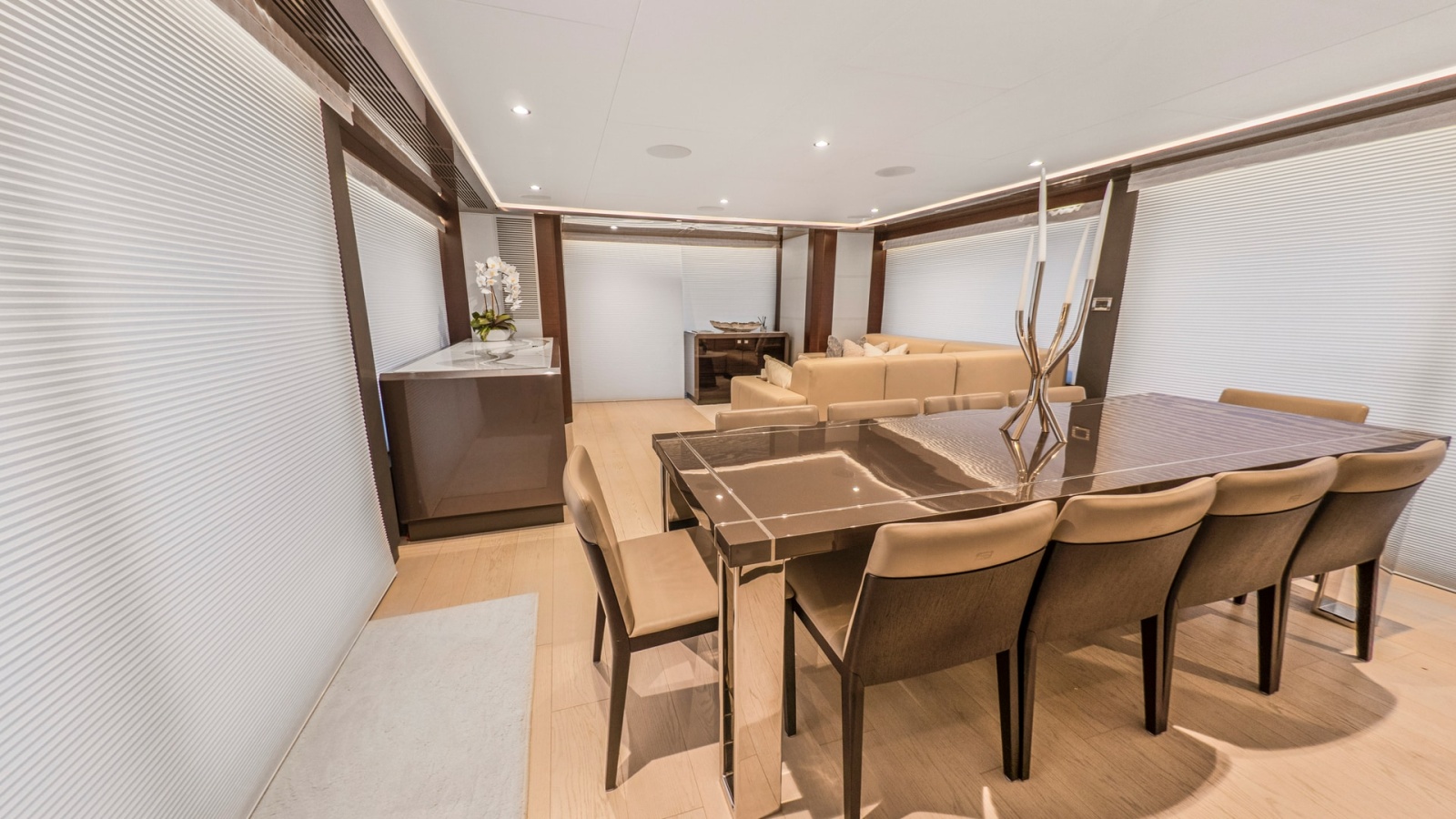

Entering from the aft deck through powered glass doors, you are greeted by massive floor-to-ceiling windows and loose, modular Italian furniture. The starboard side features a fully equipped wet bar with a wine cooler, ice maker, and refrigerator. Forward of the salon is a formal dining area and an enclosed, high-end galley equipped with top-tier appliances.Salon/Dining Room:Custom-designed Poltrona Frau furniture and sofaCustom-designed window mullion with ceiling treatmentCustom- designed salon tableStone countertop at wet-bar and cabinetsFlip down 50" TVElectric shades with remote controlFull height electric glass sliding door in lieu of manual sliding doorDay Head with stone countertopAdjustable shelve tracks for China, glass, and silver storageTen-person dining table secured with chairsIce-MakerGalley:Painted paneled cabinetry with positive latch doorsStone countertopsStainless- steel kitchen sink with pull out faucetGalley storage cabinetry with hidden hingesWhirlpool garbage disposal30" Subzero refrigerator30" Jenn-Air electric cooktop30" Jenn-Air Over-the-Range microwave30" Jenn-Air electric oven15" Whirlpool trash compactorASKO dishwasherScotsman Brilliance gourmet clear ice maker (crystal clean, odorless, unique ice cube shape that won't clump or dilute drinks)

Sidepower Vector Fin 15 square feet hydraulic stabilizer fin with zero speed stabilization function.Sidepower patented "curved" fin design not only provides lift underway it is also unique in the industry with active "predictive" inertia control.Up to 50% more efficient than flat fins at anchor.Up to 30% more efficient than flat fins underway.42.6HP for bow thruster and 23.3HP for stern thruster.

Apple TV multi-zone distribution experience system form Salon, Boat Deck, Aft Cockpit, and Bow seating area.Salon: 50" TV with A/V system and subwooferAft Deck: 43" TV with AV systemMSR: 43" TV with A/V systemSkylounge: 50" TV with A/V system and subwooferPort and Stbd VIP stateroom: 43" TV with A/V systemFWD VIP stateroom: 43" TV with A/V systemStbd Guest stateroom: 32" TV with A/V systemCrew Mess: 32" TV with A/V systemUpgraded Sonos System Throughout the Vessel - Controls with your Phone

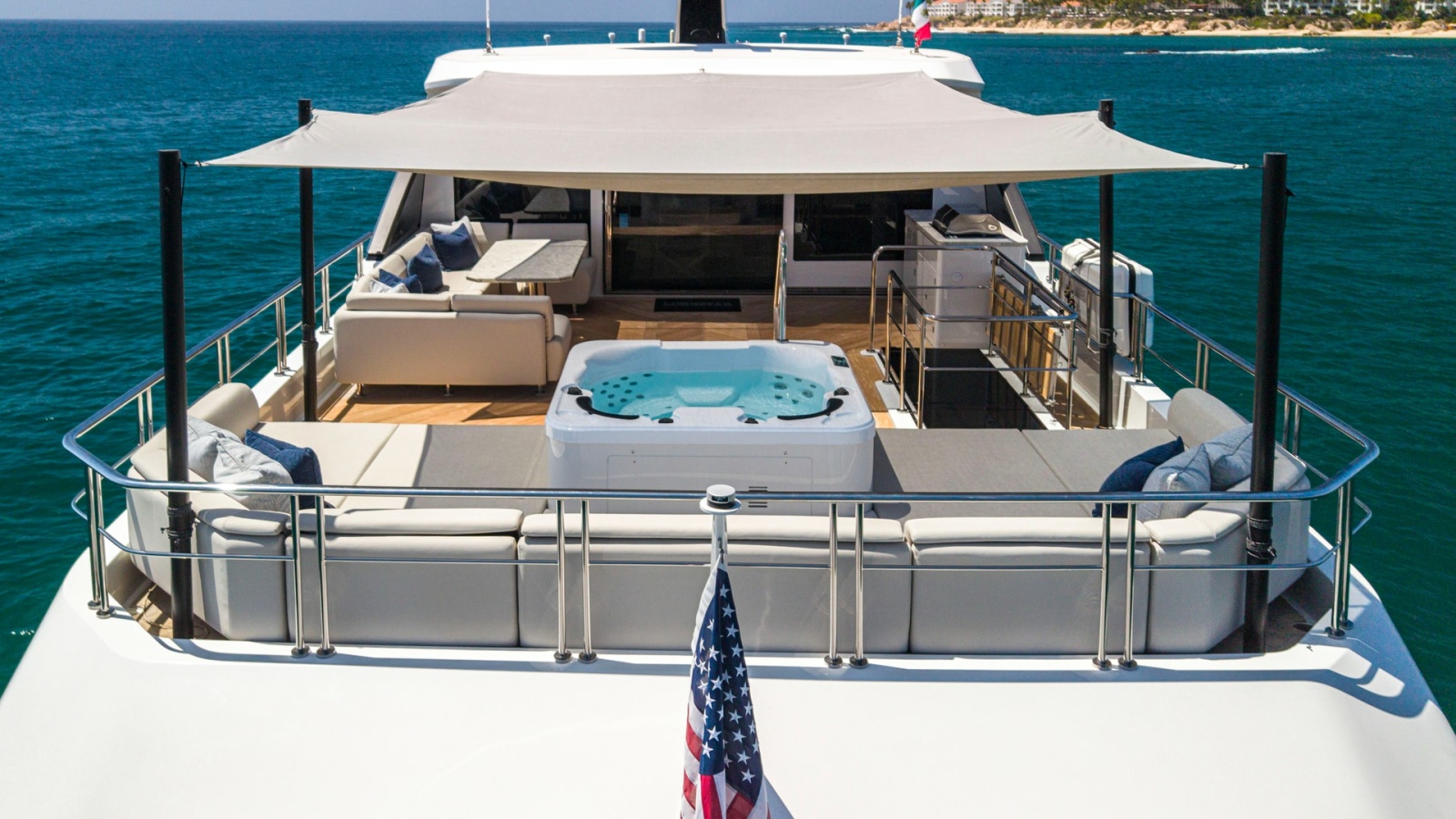

The enclosed Skylounge features floor-to-ceiling panoramic windows and a secondary helm station fitted with triple supersize Hatteland touch screens. It includes a comfortable lounge, drop-down TV, and a bar. Stepping outside from the Skylounge leads to an outdoor entertainment zone, complete with a electric BBQ, stone-topped tables, and a jacuzzi flanked by sun loungers.Custom-designed Poltrona Frau furniture and sofaCustom-designed window mullion with ceiling treatmentCustom-designed coffee tableTable with Chairs for Relaxing or Dining on the Port Forward on upper deckStone countertop at wet-bar and cabinetsDesk with chair for pilotFlip-down 50" TVWindshield defrosterElectric helm seats x3 in lieu of one standard manual helm seatFull height electric glass sliding door in lieu of manual sliding doorDay head with stone countertop4 Person JacuzziElectric BBQ

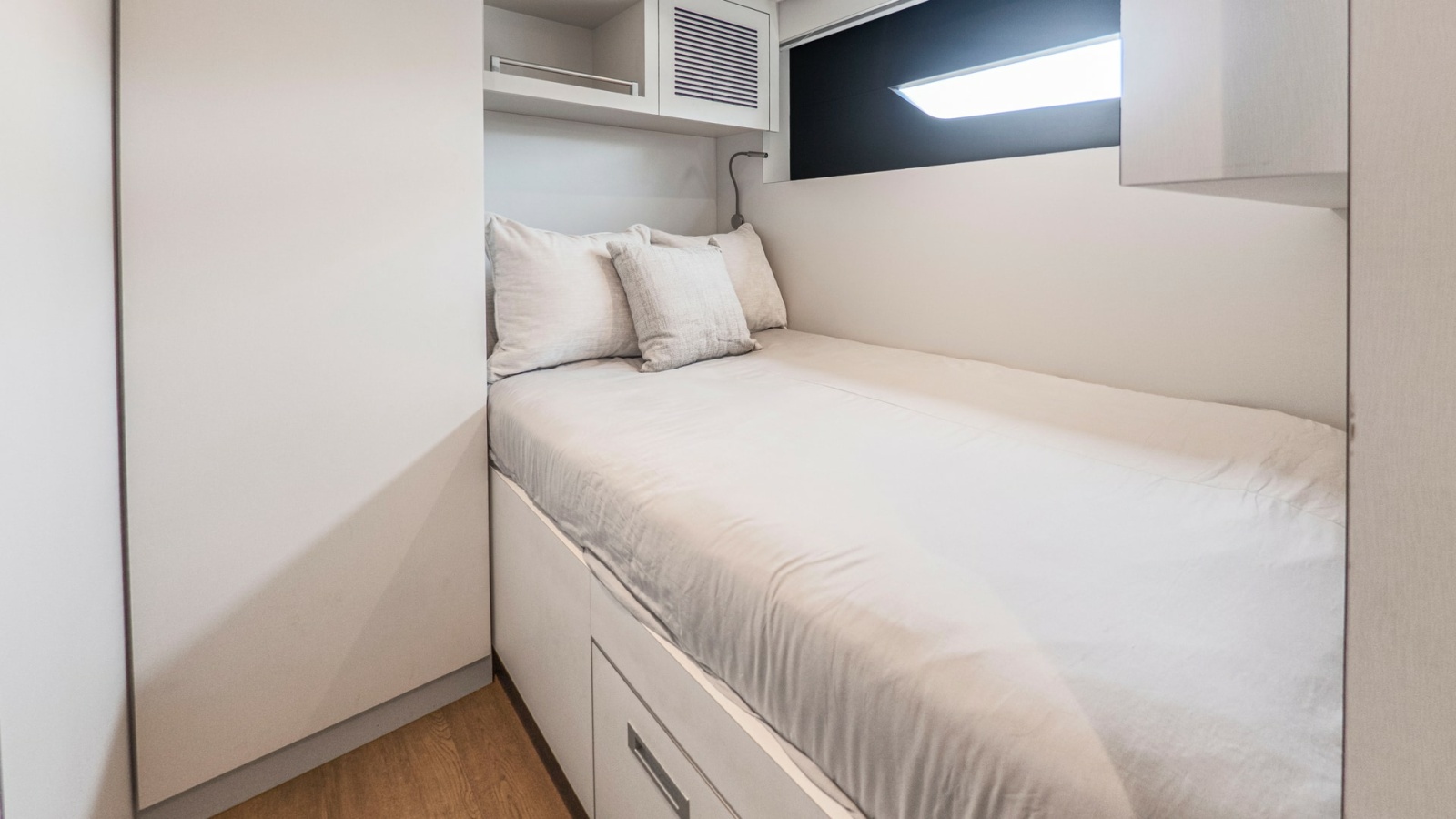

Accessed via the aft deck or transom bustle door, the crew quarters house a captain’s cabin, bunk-style crew beds, a private head/shower, laundry, and a dedicated workshop with a stainless-steel workbench and built-in tool storage.Kitchenette (sink, microwave, and refrigerator)Washer and dryerStorage locker in each crew stateroomSettee with foldable tableThree crew staterooms: one captain, one high-low bunk bed and one with workbench and a murphy bedCaptain quarter includes N2KView linked Apple iPad for system diagnostic/alert/settingsPrivate head and shower

Additional ASKO washer and dryerStone countertops sink with faucetPeloton TreadmillFull height freezerWine-Cellar

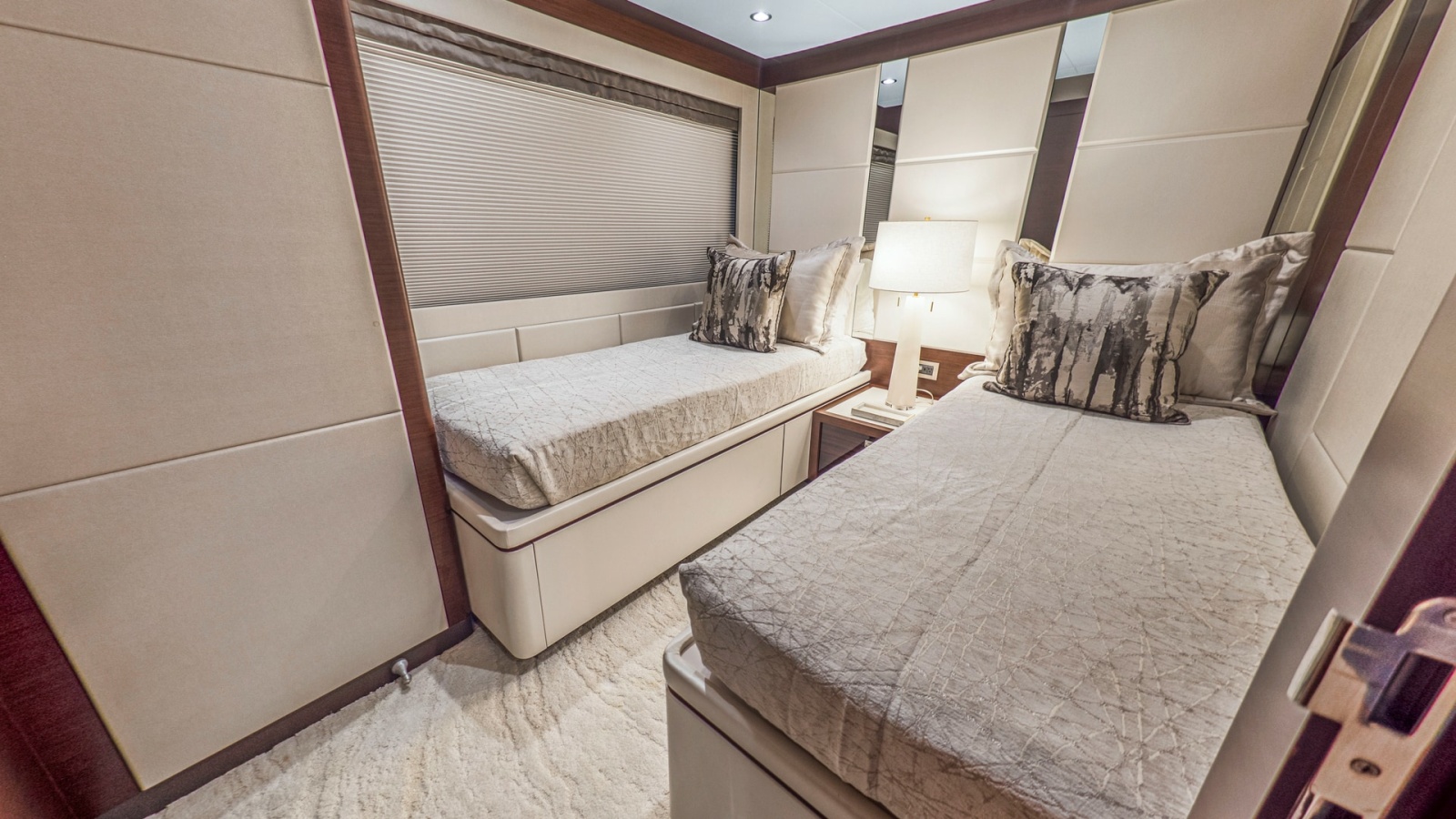

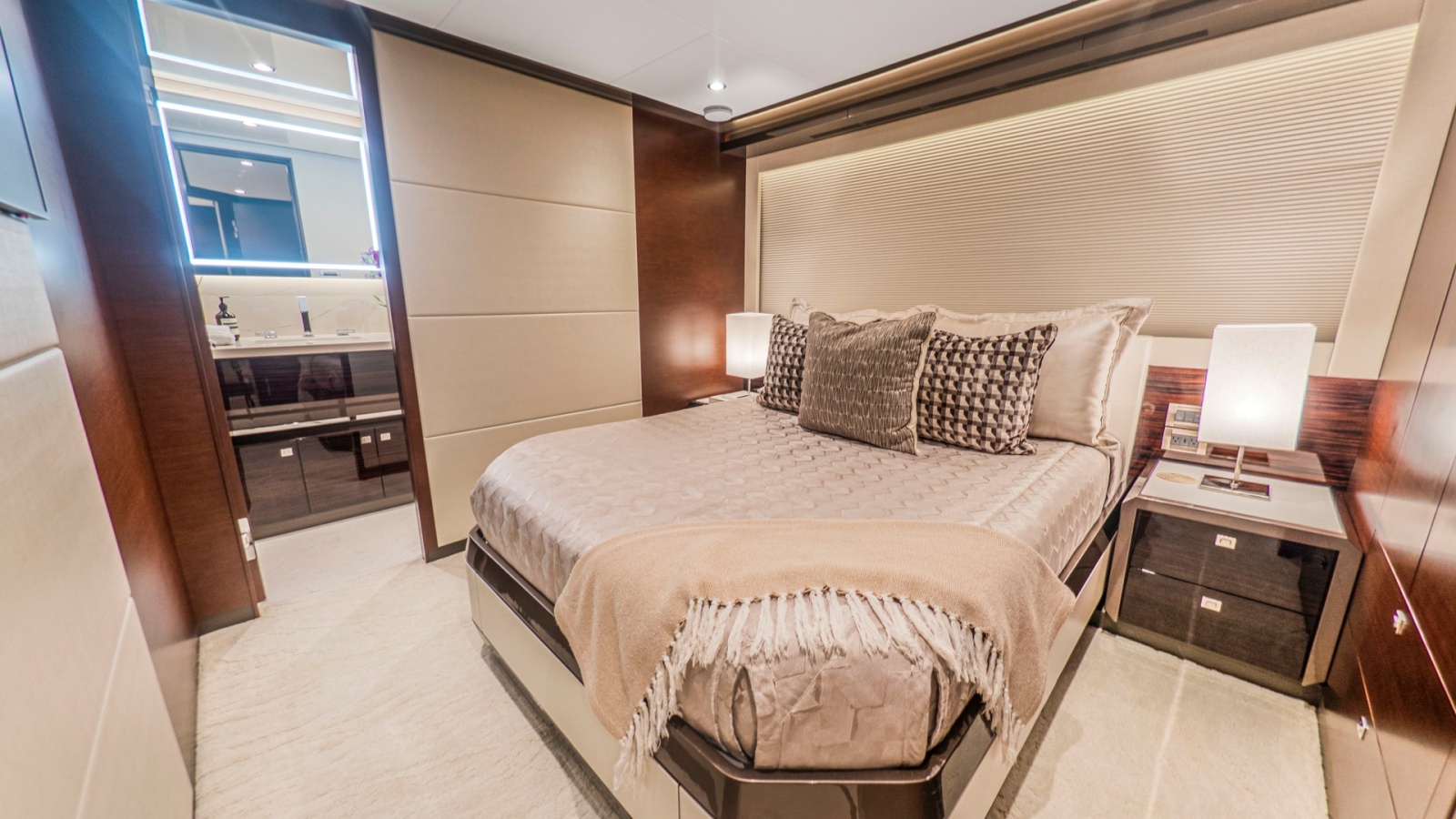

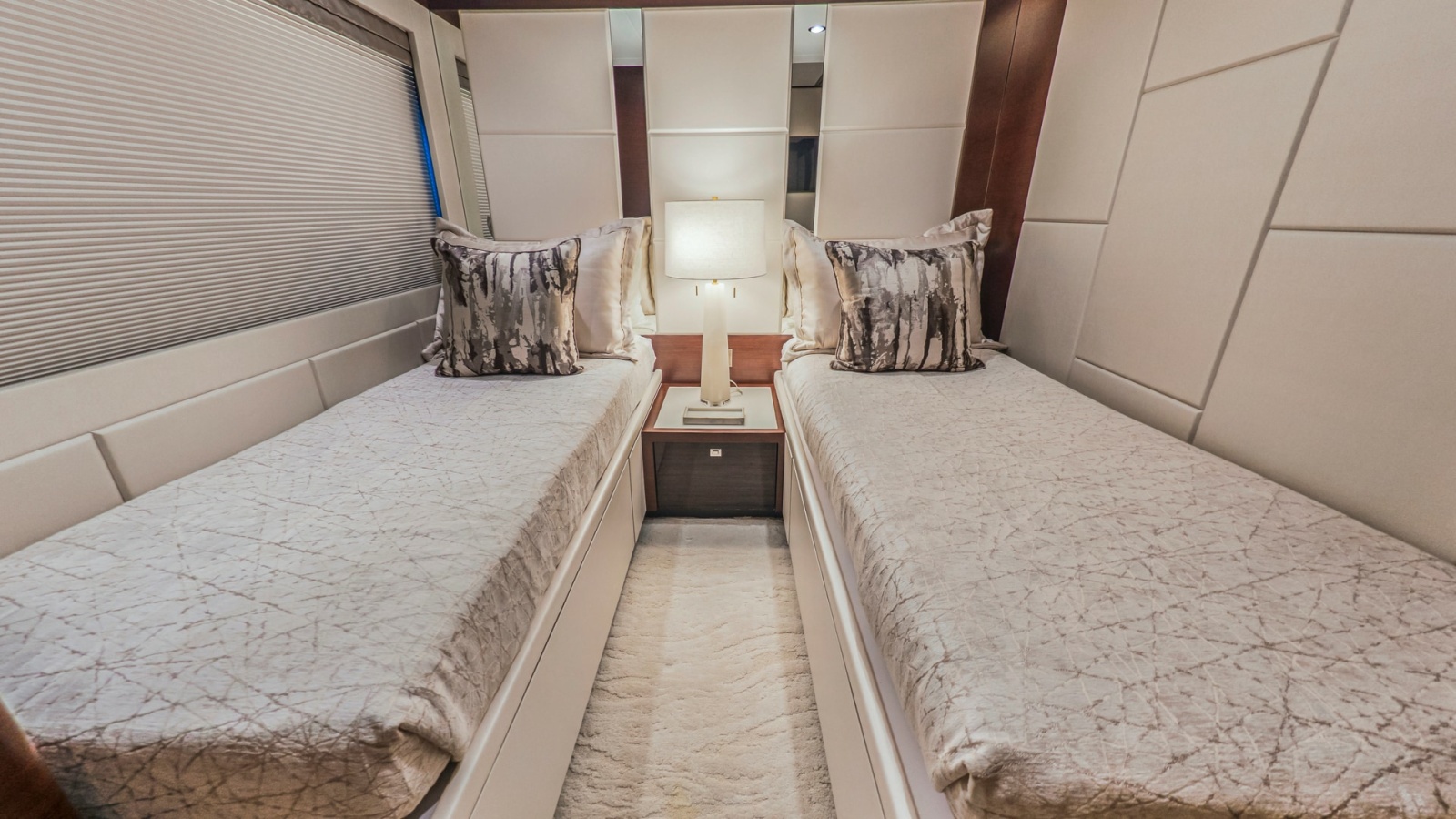

The lower deck accommodates guests via an internal staircase from the main deck. The layout offers up to 4 to 5 luxuriously appointed staterooms, all with large in-glass portlights for natural lighting.Forward VIP Stateroom:Queen-size berth with upgraded Memory Foam mattress and storage beneathNightstands with drawersLarge Windows with Electric BlindsDressing mirrorHanging locker with automatic lightingPrivacy locksetSettee for twoAfter Port/Stbd Staterooms: Queen-size berth with upgraded Memory Foam mattress and storage beneathNightstands with drawersLarge Windows with Electric BlindsDressing mirrorVanity / dressing tableHanging locker with automatic lightingPrivacy locksetIn glass port lightingStbd Guest Stateroom:Twin-size berth with upgraded Memory Foam mattress and storage beneathSide-by-side berth conversion berthsLarge Windows with Electric BlindsNightstand with drawersHanging locker with lightingDressing mirrorPrivacy locksetIn glass port light

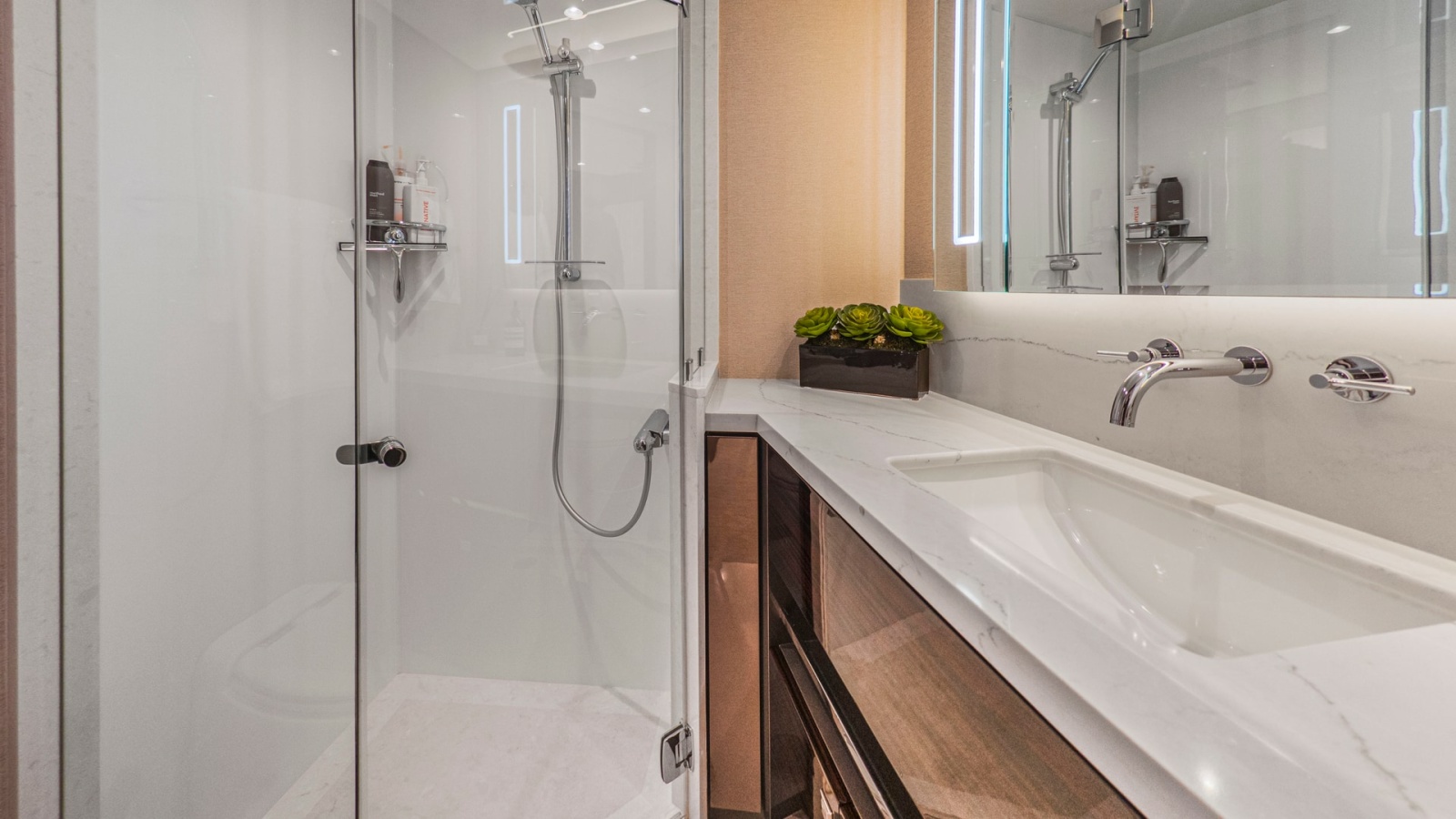

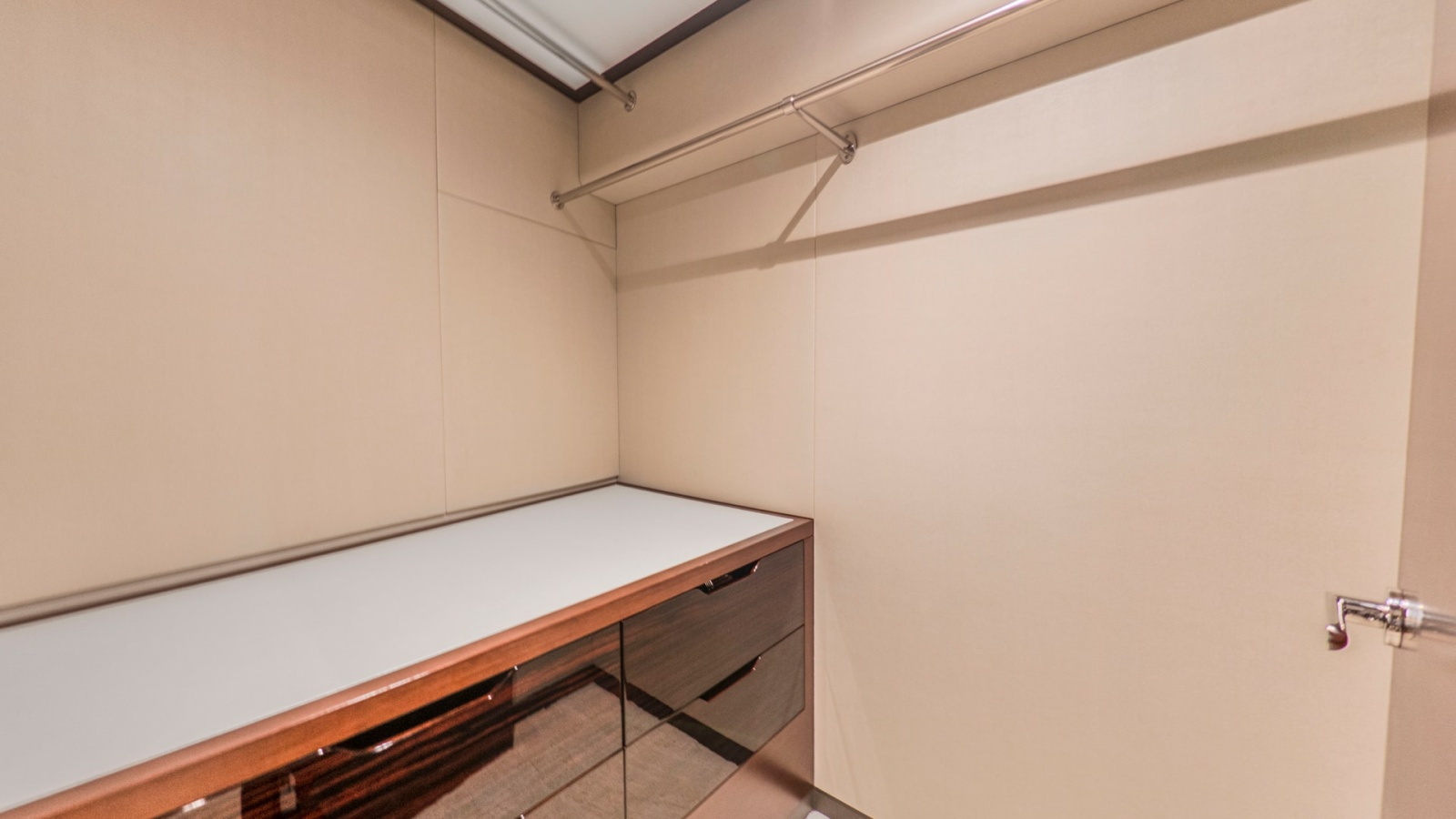

The highlight of the 28E is the full-beam master suite on the main deck. It features a king-size bed and a large, curved skylight above the bed designed for in-bed stargazing. The en-suite bathroom includes his-and-her sinks and a stone-clad, spa-like rain shower.King-sized berth with independently coiled his & her sections to ensure minimal transfer of movementUpgraded Memory Foam MattressLarge Windows Including a Skylight with Electric BlindsNightstands with stone countertopsVanity tableWalk-in closets on starboard side of stateroom (featuring hidden safe for valuables)Swivel chair with coffee tableElectric shades with remote controlIn glass portlightToto toilet x1Heated Bathroom Floors
