2020 Azimut Azimut Grande 27M

• Excellent condition• Five-cabin layout• Best interior volume of her class• Advanced options and upgrades• Registered below 24 meters• Low engine hours• Bright and modern Salvagni interior design• Full beam master cabin• Large flybridge• Beach-club style aft platform

Electricity:Onboard voltages: 230 V - 50 Hz AC24 V DC from battery set12 V DC from battery set and AC/DC voltage reducerShore-powered power supplyDC electric panel: Installed on fore bulkhead of the engine roomAC electric panel: Installed on fore bulkhead of the engine roomAuxiliary electric panel: Installed in the wheelhouseEmergency control panel: Installed in the wheelhouseBattery cut-out/emergency/fire extinguishing system control panel:located in the cockpitDimmable lights in the interior, cockpit and flybridge (option) Shore power: EU 2 sockets, 3P 63AUSA 2 sockets, 4P 100A and 4P 50AThe AC power sources terminate on the main electric panel in the engine room, provided with a voltmeter and ammeter for the 230 V power supply. The AC power sources are protected by suitably sized fuses, and introduced into the network by means of remote control switches2x electrical shore power cable entry (option) Batteries: Services: 12x 10.90 Ah@12 VEngines: 6x 6.90 Ah@12 VGenerator: 2x 2.90 Ah@12 VService battery charger / service backup: 2x Mastervolt 80 Ah - 24 VEngine start-up battery charger: 1x Mastervolt 30 Ah - 24 VGenset start-up battery charger: 1x Mastervolt 10 Ah - 12 V Air Conditioning: Air conditioning type: The system is of the thermally-treated water circulation type, with fancoils located in various roomsCompressor unit in engine room, total 180,000 BTU with inverter technologyOne seawater pump Distribution: Wheelhouse: three fancoils of which two AP5 (9,200 BTU) and one AP10 (16,000 BTU)Owner’s cabin: two fancoils AP8 (12.500 BTU)Owner's head: one fancoil AP3 (6.200 BTU)Galley: one fancoil AP8 (12.500 BTU)Dining: two fancoils AP8 (12.500 BTU)Saloon: two fancoils AP8 (12.500 BTU)VIP cabin: two fancoils AP5 (9.200 BTU)Port guest cabin: one fancoil AP5 (9.200 BTU)Starboard guest cabin: one fancoil AP5 (9.200 BTU)Commander's cabin: one fancoil AP1 (4.480 BTU)Crew cabin and crew dinette: one fancoil AP3 (6.200 BTU)Each area has its own control panel making it independentUnderwater lighting at the stern - oceanLed Explore (4x) (option)Underwater lighting lateral - oceanLed Explore (2x each side, total 4) (option)Watermaker 180L hour HP (option)

Owner’s cabin: Double bed at the center of the yacht, with foldaway bed base and locker Access to servicecompartment under the bedWalk-in wardrobe with wardrobes equipped with hanger bar, internal lighting, chest ofdrawers, full-height mirror with concealed sliding doorTwo bedside tables with drawerFix side windows on each side of the cabin, full heightChest of drawers, forward of the owner's bedMain lighting with dimmer, LED technologyLED technology courtesy lightingFull-length mirrorVenetian blindsWood-upholstered bulwarksLacquered and wood ceilingCarpeted floorAir conditioning system control panel Two double cabins: Double bed with foldaway bed plane and locker below, headboardTwo bedside tablesWardrobe on port side with hanger bar and internal lightingChest of drawersTwo wall units with storage above side panoramic windowsLighting with recessed LED spotlightsTwo LED wall lights on headboardFixed panoramic windowsOpenable round portlights built-in the panoramic windowsWooden Venetian blindsLacquered and wood ceilingWooden/fabric upholstered bulwarksLacquered/fabric-upholstered headliningCarpeted floorLED courtesy lightsAir conditioning system control panel Two twin guest cabins: Double bed placed transversally onbulwark, with foldaway bed plane andlocker below, headboardTwo bedside tables with drawerOne wardrobe with a hanger bar and shelvesLacquered ceilingUpholstery on bulwark in wood essenceFull-length mirrorPanoramic fixed window with built-inportlightVenetian blindCarpeted floorLED technology lightingHeadboard lightAir conditioning system control panel Custom options : Flybridge U-bench extension, curved furnitureStainless Steel Teak Bar Stool on flybridge 3 piecesTeak table on bowMosquito nets for portholesSalon round tableWooden floor in salon/couch areaLacquer tableMarble washbasins, shower cubicle floor and wall and kitchen exchangeReading lights flexible installation in owner's cabinGlass top fixed on dining table in salon

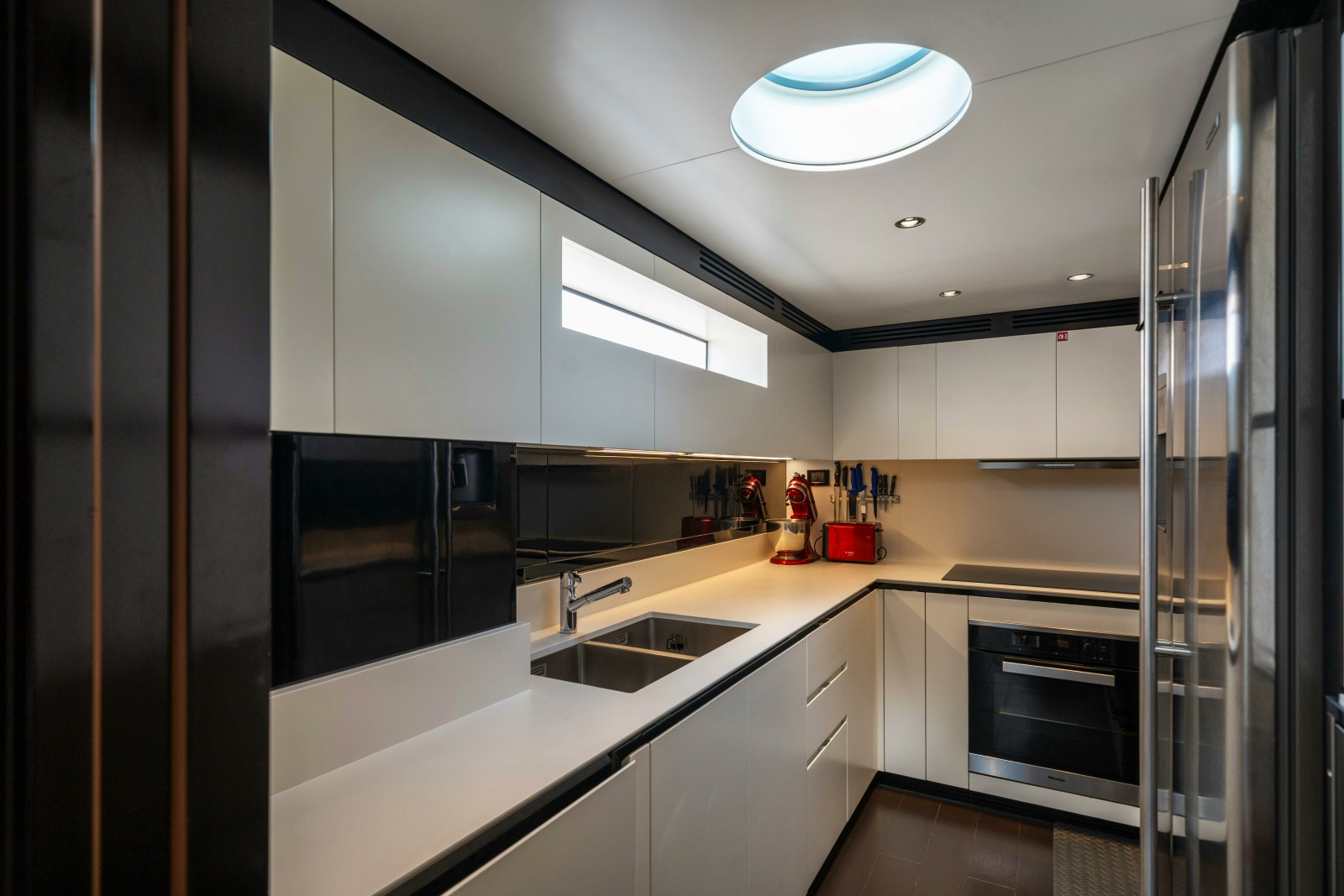

Galley Located on port side, the access is through concealed sliding door located forward of the pantry. This layout allows full isolation of this area from the saloon and dining area reserved for the owner and his guests.419 l (14.8 cu.ft) refrigerator + 247 l (8.7 cu.ft) freezerDishwasherStainless steel sink with faucets Extractor hood76 l (2.68 cu.ft) oven Four-burner induction rangeFlooring in vinylComposite material worktopStorage wall units on port bulwarkLED technology spotlightsSocketsAir conditioning outlet gratingWine cooler in galley (option) Laundry: Washer-dryer in crew cabin (option) Exterior appliancies: Icemaker flybridge (option)Refrigerator in cockpit furniture (option)

Communication systems (VHF)Profesional Wifi systemPre-insertion for SAT antenna KVH TV6/TV8Starlink

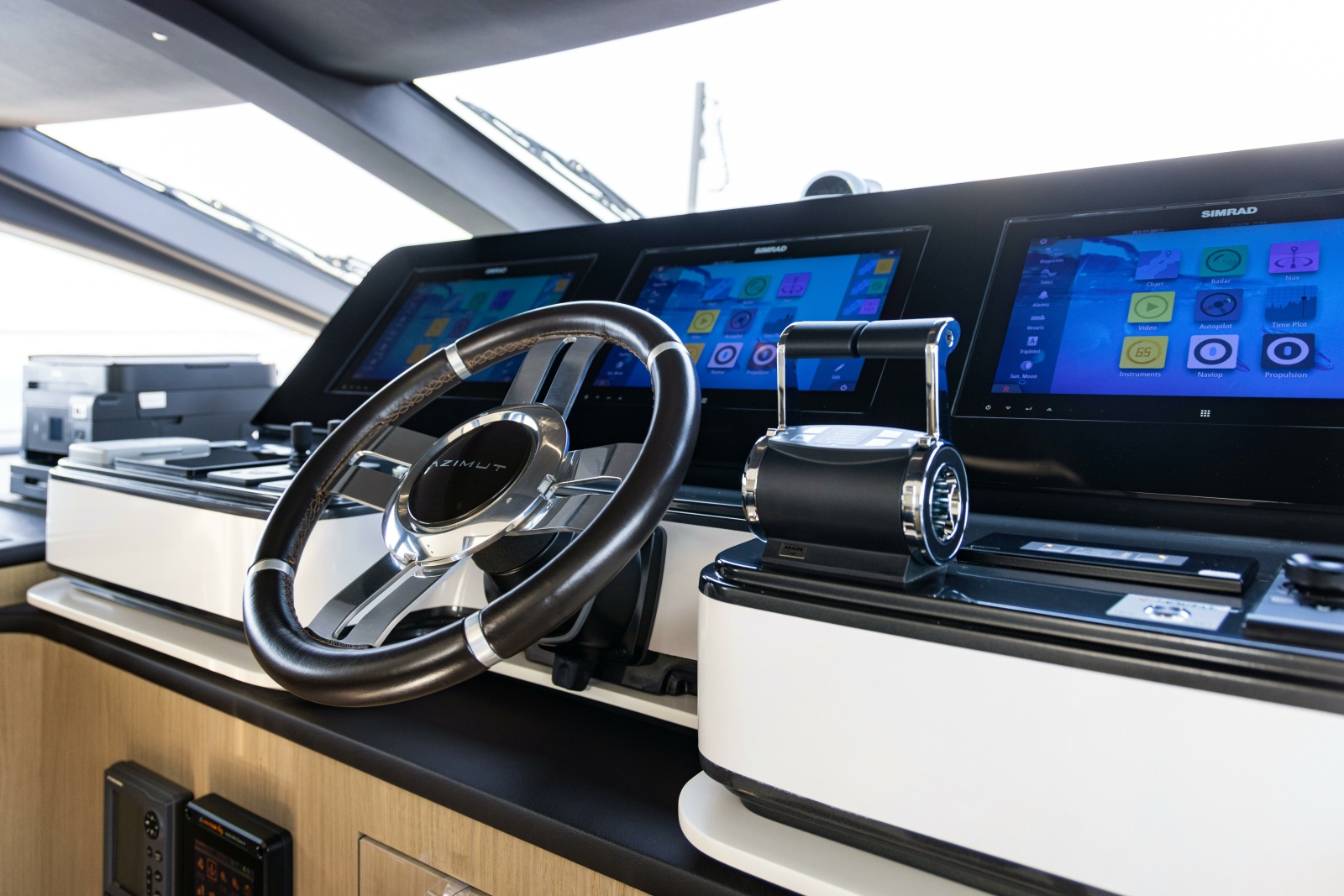

Simrad gold package:Roll bar: RADAR HALO3 VHF ANTENNAS (x2)GPS ANTENNAS - GS 25 Flybridge: Display multifunction NSS-16 EVO 3 (x2) VHF Station RS90Remote controller OP50 Wheelhouse : Display multifunction NSS-16 EVO 3 (x3) VHF Station RS90Remote controller OP50 Radar interface moduleVHF transreceiver RS90 (with integrated AIS receiver)Autopilot computor for optimus SG05Compass precision-9 Multisensor DST800 Other: Panasonic video cameras (x4) Electric searchlightBow spotlight Stern spotlight on spoiler from flybridge

Audio/Video Gold PackageGuests cabins: Smart TV LED LG 43" 50/60 HzAmplifier FUSION APOLLOSpeakers FUSION 6“ – 2 WAY FULL RANGEUSB & 3.5 mm AUX CONNECTORAUDIOVIDEO GOLD PACKAGESMART TV LED LG 32" 50/60 HzAPPLE TV 4 HD 32GB Salon: Speakers BOSE LIFESTYLE 600Smart TV LED LG 55" 4K 50/60 HzSubwoofer BOSE LIFESTYLE 600APPLE TV 4 HD 32GBSONOS CONNECT AMP Master cabin: Subwoofer BOSE LIFESTYLE 550Speakers BOSE LIFESTYLE 550Smart TV LED LG 55" 4K 50/60 HzAPPLE TV 4 HD 32GB Aft cockpit: Speakers JL 7.7” MX-770 Flybridge and bow area: Speakers JL 7.7” MX-770Subwoofer JL 10“ M6-10IB-S

Tender is not included in the sale, below the possible option:MAXIMUM DIMENSIONS OF TENDER - GARAGE: 4.50 x 2.00 m (14' 9'' x 6' 6.7'')RECOMMENDED TENDER - GARAGE: WILLIAMS DJ445

Anchor Two anchors 135kg Anchor chain Quantity: 2Diameter 12 mm (0.47 in)Length (each) 130 m (328’ 1”)Material: galvanized steel Hawse plate Quantity: 2Thickness 3 mm (0.12 in)Material: stainless steel Anchor winch Quantity: 2Engine power 4000 WEngine voltage 230 V - 50/60Hz threephase Mooring winch Quantity: 2Engine power 3600 WEngine voltage 230 V - 50/60Hz threephase Chocks Quantity - bow: 4 Quantity - stern: two (with rollers)Material: stainless steel Cleats Quantity - bow: 4 (mushroom type) Quantity - midship: 2Quantity - stern, on mooring station: 2 Material: stainless steel Options Deck washing system at bow, on fly and at sternFixed fresh water connectionCockpit cover sunshade electric Preparation for electric awning flybridge to sternPreparation (power) for additional BBQ furniture Flybridge to sternPreparation for recording bow bimini with carbon poles and sail

Fire extinguishing system System manual activation control in the cockpitSystem indicators/reset on internal and flybridge dashboards and also in the crew roomOne 106-liter (3.74 cu.ft) gas extinguisher in the engine room with nozzles located above the enginesTwo hoses located in the compartment under the cockpit's ladder and in the chain locker at the bowAll safety equipment requested by current commercial regulation.

All maintenance/services performed in line with highest standards.Year-round crew on board. Upgrades performed in 2022/2023/2024: Two anchors 135kgAdditional 30 meters of anchor chains Installed 5G Router + Antenna Peplink 4 + StarlinkInduction hob 90cm (60cm as standard)Additional fridge in the lobbySecond grill on the flybridgeDiesel pump in the garage for tender Shower refitHard-top/coaming/coach roof Wrapped in BlackTimothy Oulton, London Saloon/Dining Furniture
