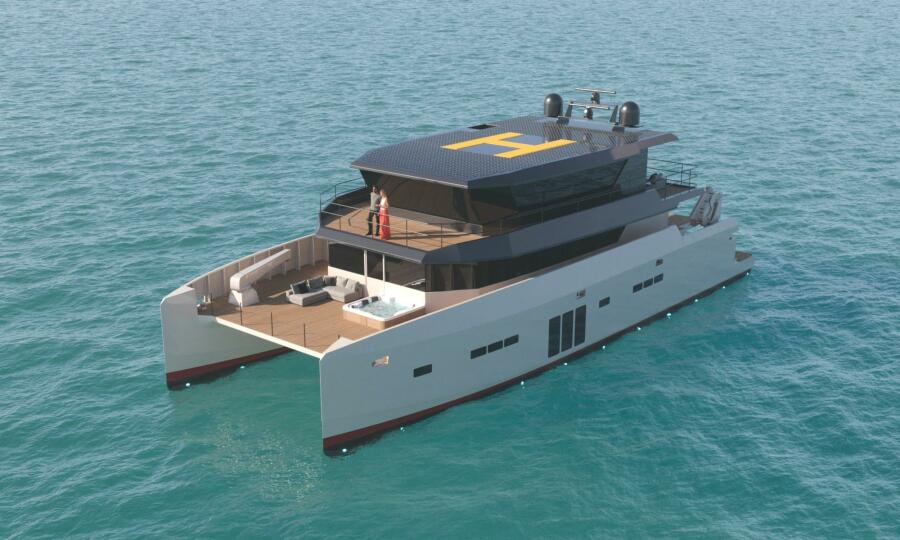

2026 Archipelago A-80 Expedition

Master Cabin + Four (4) VIP Guest cabins + Crew cabinMaster Cabin + Three (3) VIP Guest cabins + Crew cabin + Captain's cabin

PROPULSION:(2) MAN i6-850 main engines, 850 hp/ 625 kW each(2) Stainless steel propeller shafts with dripless shaft seals and spare seat(2) Bronze Veem fixed pitch 5-blade propellers with interceptor adjustment bladesSet of propulsion, helm, and speed control panels with levers in upper wheelhouse POWER SUPPLY SYSTEM:(1) Marine type generator set (19,0 KVA, 230 VAC @ 50 Hz, single phaseRENEWABLE ENERGY SOURCES:Set of Solar panels across the entire roof area, giving c.20kW installed power RUDDERS AND STEERING SYSTEM:(2) Bronze rudders(2) Rudder stocks, stainless steel(2) Sets of self-aligning lower and top bearings(2) Emergency tillersSet of Electro-Hydraulic steering system MANEUVERING EQUIPMENT:(2) Proportional Sleipner 48V DC bow thrusters(2) Proportional Sleipner 48V DC stern thrustersDockmate system with Dynamic Positioning (DPS)

ANCHOR EQUIPMENT:(2) Quick windlass 3000w, 230 VAC(2) Galvanized anchor 75 kg VQR, plus 50m 14mm galvanized chain and 100m rode(1) Emergency anchor 34 kg + 20m chain MOORING EQUIPMENT:(1) Mooring kit – 8 Fendertex inflatable fenders plus 4 mooring ropes(2) Lewmar electrical mooring capstans aft(1) Hinging swim ladder on the sugar scoops

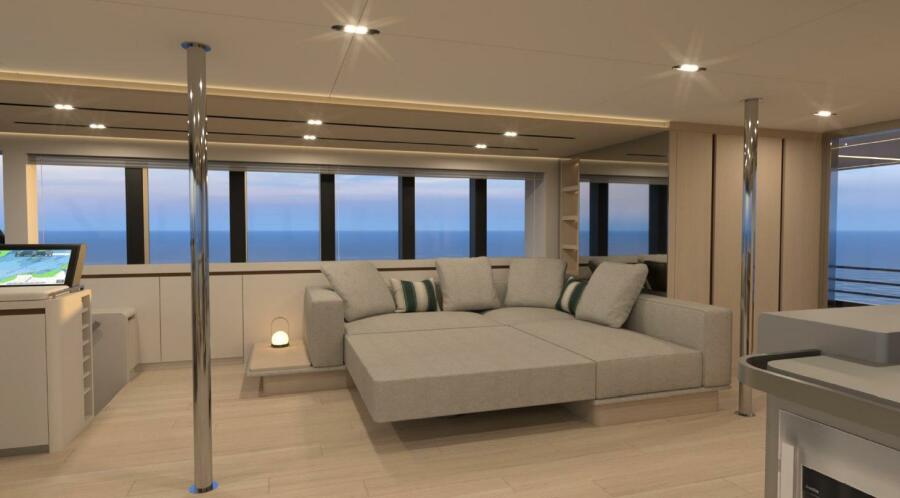

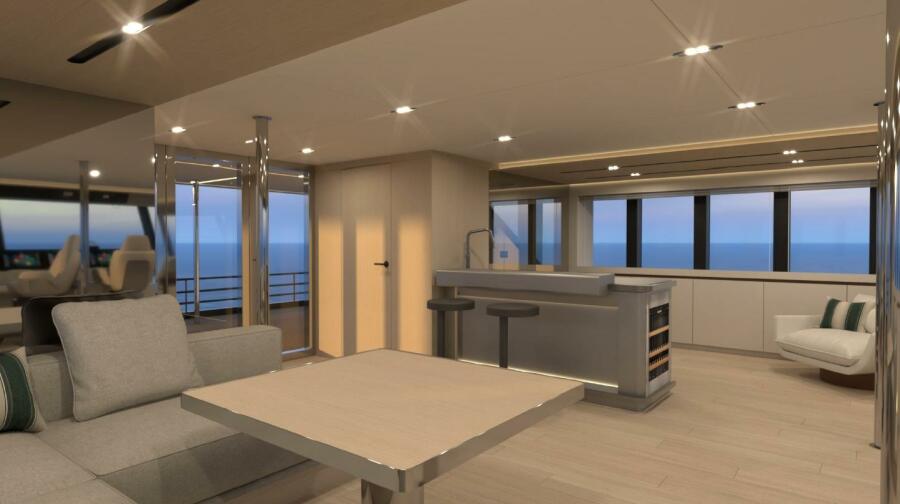

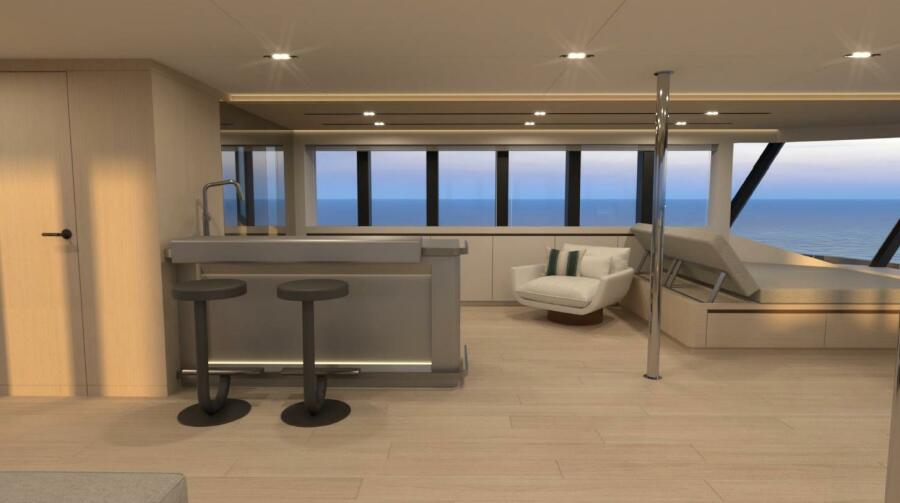

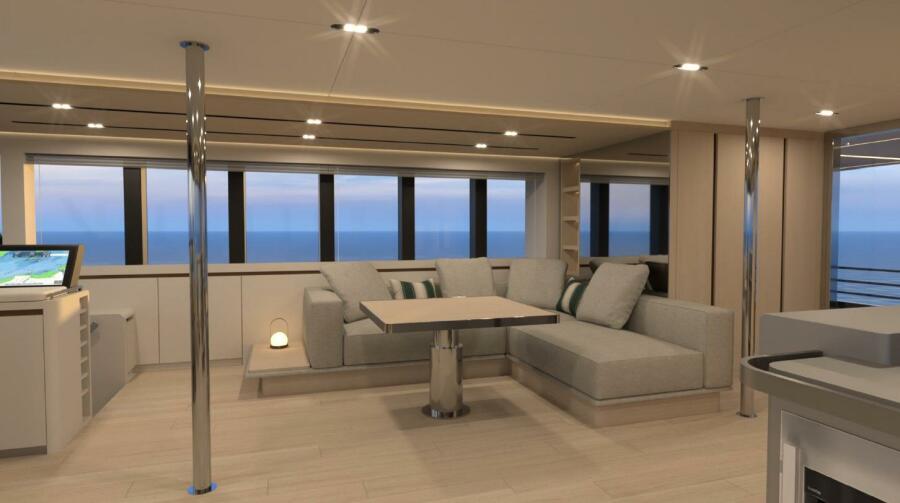

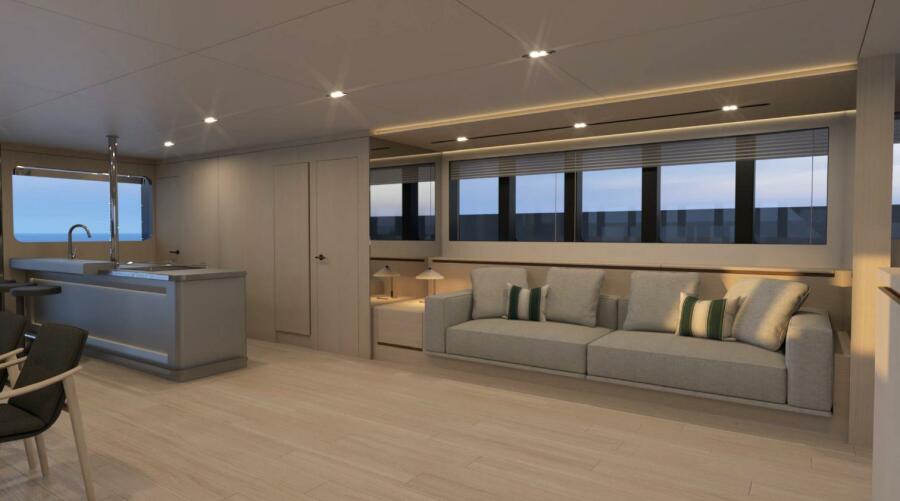

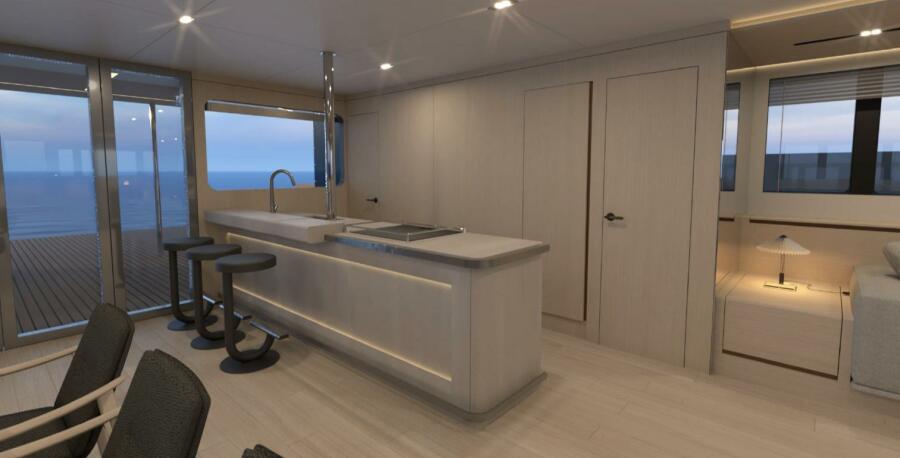

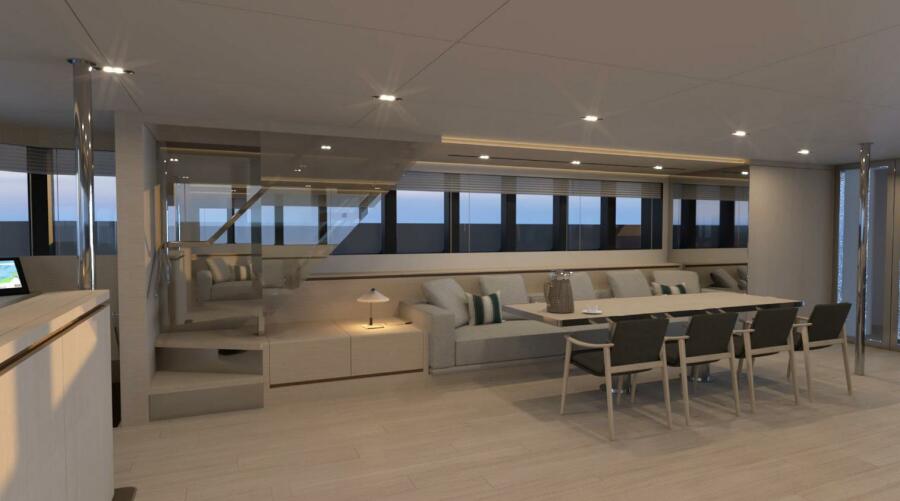

INTERIOR DESIGN:Personalized design including:(2) Days with dedicated Archipelago interior designer(1) Render of Salon(1) Reder of Owner’s Cabin(1) Render of Owner’s Head FLOORING COVERING:Laid timber strip synthetic floor in salon and wheelhouseDecorative carpet in salon – design type TBA, removable FURNISHINGS AND INTERIOR OUTFITTING:Set of galley and household appliances as listed (Siemens or Bosch):(1) Refrigerator with freezer(1) Dishwasher(1) Electric oven(1) Washer/dryer

EXTERNAL HULL FINISHING SYSTEMDECK COVERINGS:All working decks finished with anti-skid painted surface EXTERNAL DOORS:(1) Sliding door (manually operated) from cockpit to salon – stainless steel frames(2) Sliding door (manually operated) from wheelhouse to balconyPantograph fore access door for access to foredeck from salonWINDOWS:Set of fixed windows with tinted glass on main deckSet of fixed skylights in salon fore areaSet of window wipers for wheelhouse with wash wipe system

FUEL SYSTEM:Set of separated fuel oil tanks with (2) day tanks, and (4) bunkering tanks (20,000 l total capacity)(2) Racor Duplex fuel filters with drip tray and water sensors(2) Fuel polishing units (one per hull)BILGE SYSTEM:(8) Electrical bilge pumps, with oil filter in engine room, in compliance with MGN280FRESH WATER:(2) Fresh water tanks with electronic readout level indicators (volume 1000 l each)(2) Fresh water pressurizing pumps(2) Fresh water heaters (100 l capacity each)(1) Hand shower on deck(1) Blue Water water maker 280l/h – 220V DECK WASH SYSTEM:(1) Fresh water outlet on cockpit (female quick-coupling snap connector)(1) Fresh water outlet for washing the foredeck(1) Fresh water outlet on balcony(1) Fresh water outlet in both sugar scoops(1) Retractable 5m hose in both chain lockers for chain wash SANITARY DRAINS SYSTEM:(2) Black/ grey water tanks 500L with discharge systems(2) Electric sewage discharge pumpsSet of 24V electric toilets in bathrooms with fresh water flushHVAC System:Set of Termodinamica air conditioning system – capacity 250 000 BTU/h (new technology ultra-efficient – Energy Saving VFD controlled 230V AC)

AC DISTRIBUTION SYSTEM (110 or 230VAC, depending on configuration):Set of AC distribution system and wiring(1) Main switchboard AC 230V @ 50 Hz, 1 phase(1) Shore connection (32A, 230V @ 50 Hz, 1 phase)(1) Shore connection power cord 20m long(2) Victron Quattro 24V/5000W/120A combined inverter and battery chargerSet of 230V @ 50 Hz sockets, with USB charging DC DISTRIBUTION SYSTEM:(1) Main switchboard, 24 V DCSet of DC distribution system and wiring(1) DC-DC charger for 24V battery bankSet of Lithium battery banks (25.6V DC / 14,0 kWh)(2) Sets of starting batteries for gensets(2) Chargers for genset starting batteries (one per each engine room) DIGITAL SWITCHING:Set of Automation system (digital switching) with following functions shall be installed:Lighting with dimmingNavigation lightsControl valves and pumpsTank level monitoring

Set of deck lightsSet of interior lighting with LED lampsSet of lights in engine roomsSet of spot lights on sugar scoop steps and side decksSet of spot lights on front terrace deck and cockpit ceilingSet of Smart system controlling lights (including dimers for ceiling lights

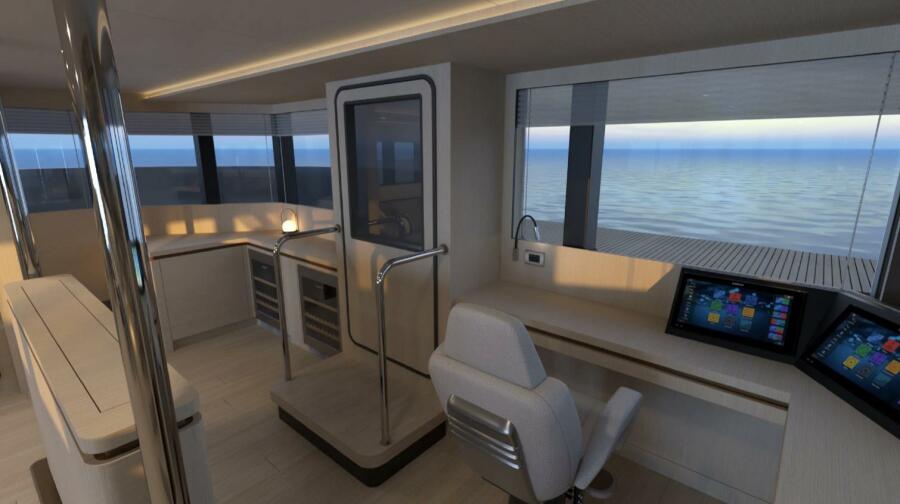

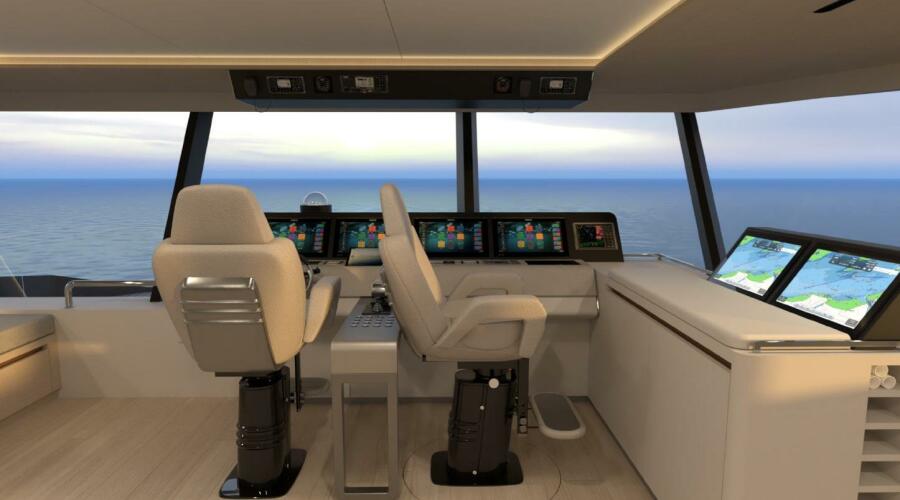

Set of Solas navigation lights with LED lamps, including NOC lights(1) Compass (135mm)(1) Chronometer(1) BarometerRAYMARINE NAVIGATION PACKAGE:(3) Raymarine Axiom 16” Touch Multi-function display(1) Raymarine RD424HD 24” 4kW 608mm digital radome radar(1) Raymarine Evolution autopilot(1) Raymarine AIS700 – Automatic Identification System(1) Multisensor (depth, speed & temperature sensor)(1) Wind sensor(1) GPS(1) Raymarine Modular Dual-Station VHF radio system Ray90(1) Searchlight with control unit(1) Electric fog horn(1) Wireless autopilot controllerFurther navigational equipment / manufacturers can be supplied as required

TV’s:(1) Wide screen LED 55” TV with installation (salon)(1) Lifting system up/down (if possible depending on customer layout)Set of 40” LED TVs with installation (price per cabin)AUDIO:Set of Sonos wireless speakers in all living spaces (excluding heads) and eternal for aft deck and balconyIT:Set of wireless distribution throughout vessel, including 4G mobile antenna (SIM not included)(1) Starlink Marine antenna with installation (subscription not included)

ADOPTION TO SPECIFIC FLAG REQUIREMENTS:Compliance with MCA Small vessel Commercial Craft Code (MGN 280 (M))FIXED FIRE EXTINGUISHING SYSTEM:Set of Stat-X automatic fire extinguishing system with helm controls MISCELLANEOUS SAFETY EQUIPMENT:Set of complete rescue equipment with life-rafts for 16-people with Solas grab bag and Cat C first aid kit(1) EPIRB
