2023 Offshore Yachts ELV

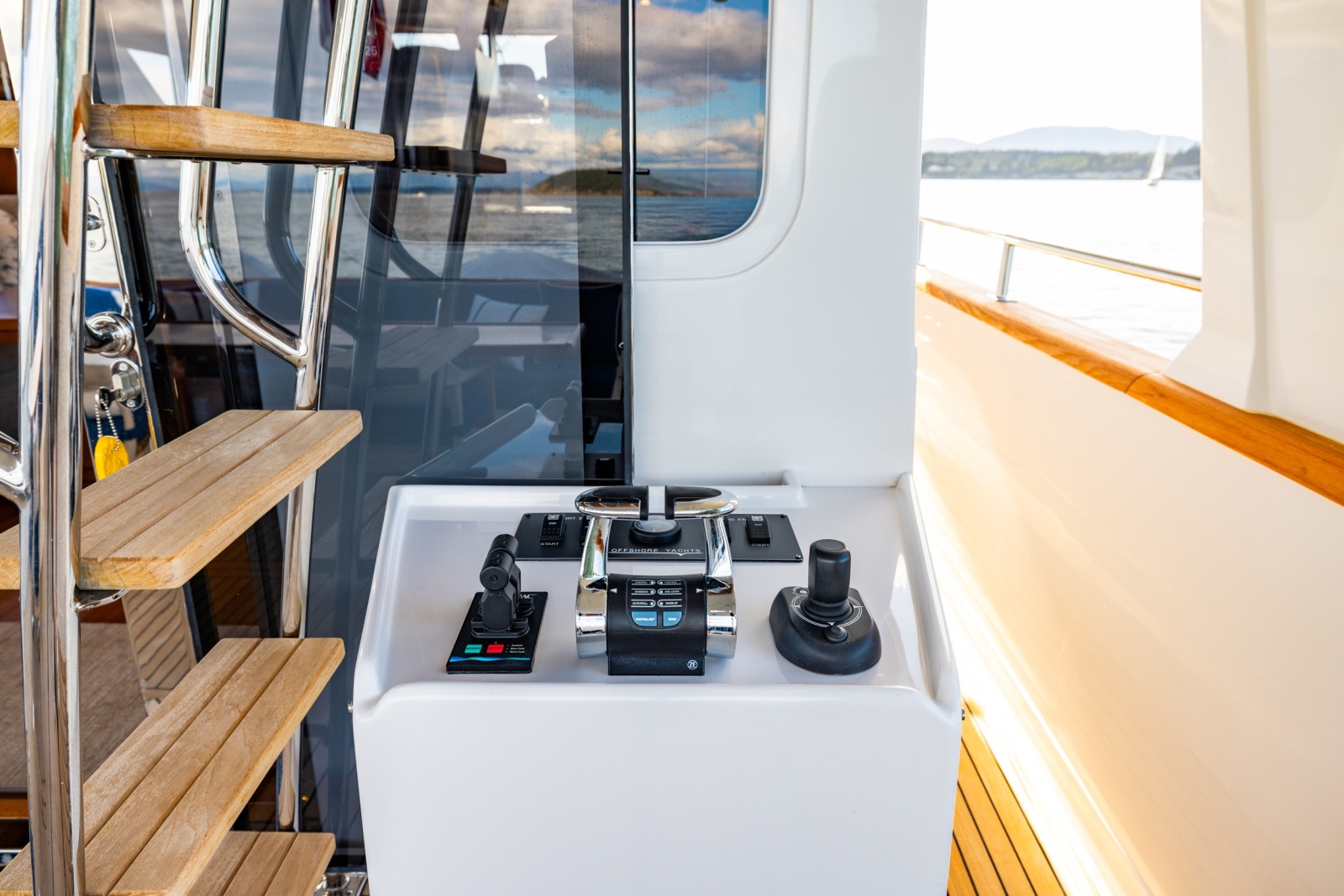

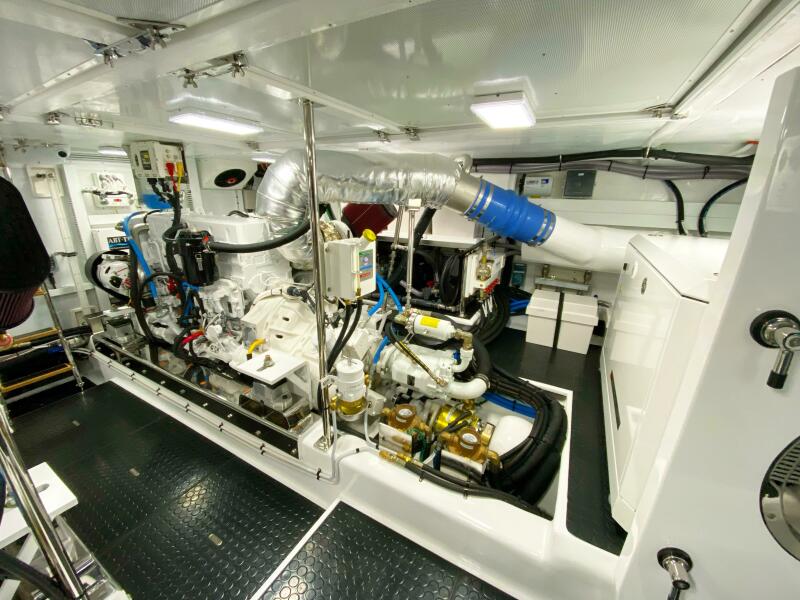

PROPULSION SYSTEMTwin Cummins 715 hp with ZF 305A 1.964:1 gearsTwo 24V alternators start banks316 stainless (w/316-L rod) exhaust risers with zinc plugs connecting to FRP underwater exhaust system w/bypass pipes to Aqua Quiet mufflersSeatorque M4-250 enclosed shaft system with Aquamet 22 HS shaftsBronze V strutsExpanded ratio, computer-designed NIBRAL propellers54" trim tabs with controls at the pilothouse and flybridgeHydrodynamic 316 stainless steel ruddersTides rudder shaft seal and bearingsAmerican Bow Thruster Trac 220/6' hydraulic stabilizer system with ptoAmerican Bow Thruster 25 hp hydraulic bow/stern thruster system with ptoProportional ABT thruster controls3 Station ZF Smart Command electronic controlsZF Joystick Maneuvering System with i-anchor and 3 joysticksOptimus EPS electronic power steeringEngine room start & stop panels with engine gaugesENGINE ROOM AND BILGEWhite aluminum perforated covering on overhead, side, fwd, aft engine room bulkheads covering multiple layers of the latest technology sound dampening & insulationFloorboards covered with non-skid vinylSmooth finish polyester painted bilgesHigh-polished welded stainless engine beds bedded in chockfastThree marine-grade aluminum fuel tanks, epoxy-painted, interconnected Aluminum fuel tanks are insulated to minimize condensation and noise transferFuel manifold system for supply & return management with 2" crossover for port or starboard fuel fillSight gauges (marine grade w/protective guard) at fwd bulkhead fuel tanksCopper fuel system plumbing with shut-off valves at all tank supply fittingsMarine-grade bronze sea cocks for through-hull skin fittings, labeledGroco sea strainers at all raw water intakesMain seawater intakes plumbed for emergency bilge pump useFull flow stainless ball valves for all piping systemsDual Racor marine filter system with vacuum gauge for main enginesSingle Racor marine filter system with vacuum gauge for generatorTwo high-output 24V sump pumps with Rule super switchesSix high-output 24V bilge pumps with Ultra Systems automatic switches and check valvesUltra Systems high water bilge alarm with warning lights at the pilothouseHigh-output Whale 40 manual bilge pump4 Delta T engine air intakes to control water inductionTwo 11" 24v DC engine room blowers24v DC LED lights in the engine room & bilgesFire Boy automatic fire extinguishing system with engine shut-down systemCO/smoke detectorsFresh water wash down faucet in the engine roomTrident blue silicone exhaust hoseMultiple layer insulation at fore & aft engine room bulkheads & overheadHeavy-duty aluminum dog down engine room doorLabeled through hullsRise brand sealant for bulkhead penetrations at the fwd eng room and overheadRudder storage shelfEQUIPMENTMaxwell 3,500 lb windlass, dual direction, 3 station control, chain stopped & anchor roller.Single 316 stainless 120lb Ultra bow anchor with 400 ft 3/8" high test grade 43 chain and chain stopperMarine Air 65,000 BTU A/C system with four compressors, six air handlersEmergency tillerBuel dual low-profile air horns w/120v compressor, compressor outlets @ lazaret & engine roomExalto stainless articulating windshield wipers with a washer system3 Tecma silent flush headsVentilation system at each head2 Sealand macerator pumps2 holding tank vents with filtersDeck discharge for holding tankStainless ball valve at each watertight structural bulkheadHeadhunter Mach V 120v fresh water pressure pump with filter and accumulator tankHeadhunter 24v standby water pressure pumpTorrid 30-gallon stainless steel 220V water heaterEasy access clean-outs on all tanksStainless lazarette water tanksWater makerFlojet saltwater washdown system with seawater strainerFRP under the forward sole water tanks & holding tankAll high-grade fresh water plumbing with brass fittingsHigh water sensors on the fwd & master bulkheads and the laz bulkheadWater/gas separator for generator exhaustAsko washer & dryer (110v/220v)Washer & dryer overflow drain to bilgeTwo shower sump tanks are designed for convenient accessBilge pumps set in bilge wellsDockside water pressure connectionCentral drain system minimizing through-hull fittingsElectric assist shocks for lazaretteELECTRICAL SYSTEM:Northern Lights 20 kW diesel generator, 24v start with sound shield & gas/water exhaust separators and E-A-R anti-vibration mountsFour Lifeline 8D glassmat main engine start batteries (24v)One Lifeline 4D glassmat generator start battery (24v)Five Mastervolt Lithium batteries for the ship's 24V systemBattery crossover for main engines and generator batteriesANG 12.5 KVA 50 amp isolation transformerMastervolt Mass Combi 24/3000, 120/240v 60 HZ inverter charger with interface cable and high temp shut down with remote panel at the pilothouseMastervolt battery systems charger - 24/60-3Mastervolt engine start battery charger - 24/20-3Battery Mate 1602 @ each main engine24v & 12v LED back-lit distribution/circuit breaker panels with amp & volt meters120v & 240v led back-lit distribution/circuit breaker panels with amp & volt metersTwo 50-amp Mastervolt 24V to 12V convertersGlendinning CablemasterMarinco Shore power 125/250v-50A inlets port & stbd side (or fore & aft)ELCI breakers at shore power inletsIMTRA 24v LED overhead lighting throughout the interiorIMTRA 24v LED overhead lighting throughout the exterior24v LED interior safety lights24v LED exterior safety lightsVimar interior switches, dimmers, and outletsGFI breaker protection as appropriate @ deck, galley, heads, engine room & lazaretteElectrolysis bonding & grounding system with two sacrificial zinc platesTinned, UL-approved, high-temperature wiringLED dome lights in the bow thruster compartmentHella LED navigation lightsCameras located in the engine room and cockpitNEMA 2000 cable installedMAIN DECKWalkaround decks with high midship bulwarksTwo-tone non-skid @ all decks. White non-skid @ pilothouse roofMolded in multiple facet & plank lines for appearance and strengthExterior 316 stainless screws, bolts & nuts, welds ground & polished1 1/4" 316 stainless steel handrails with welded joints @ forward deck & boat deck.Molded foredeck seat with storage and a custom Teak tablePort and starboard bulwark doorsManship overhead hatches with Oceanair sliding screens & shadesManship 316 stainless port lights316 stainless hawse holes with cleats, bow chocks & deck cleatsAluminum-reinforced exterior doors, exterior covered w/FRP & gel coated, interiors covered with matching interior wood, stainless steel door framesBow & stern flag staffs with 316 stainless sockets        Rode locker for optional 2nd anchorProvision for 2nd anchor with dual 316 stainless channels and rollersForward deck hatches at the bowFresh and saltwater wash downs at the bowStainless latches at all exterior cabinet doorsCOCKPIT & SPORT DECKCockpit engine & thruster controls, JMS joystick, rudder indicator with engine start-stop switchesStarboard cabinet with a lift top to cover engine controls, thruster, and JMS joystickPort aft deck storage cabinet with covered sinkVentilation grates for exterior cabinets316 Stainless cockpit to boat deck ladder with 316 stainless Manship hatchLazarette access hatch with electric/hydraulic lift and ladderHandheld shower @ cockpitFresh water wash down @ cockpitSalt water wash down @ cockpitTNT hydraulic Swim platform/Tender liftRope ladder @ sport deck for emergency re-boardingDockside fresh water connector & regulatorDual transom doorsTwo LED 24V cockpit flood lightsCockpit storage bins w/drainsCustom pop-up Quickmarine lights at the cockpit cornersCustom extended cockpit with built-in seating and a custom tableFLYBRIDGE AND BOAT DECKNew Offshore flybridge designAn extended boat deck and flybridge for more space Manship hatch access to & from the pilothouseHelm station with complete engine instrumentation, function alarms & rudder indicatorStainless destroyer-type wheelVenturi windshield with 316 stainless frameTwo Stidd Helm chairs with stainless basesFRP “U” settee with storage underneathCustom table with 316 stainless support postStarboard cabinets with sink, stainless steel Isotherm 85 refrigerator, and IcemakerFRP radar arch with down lightsBoat deck drained to waterline with integral drains and scuppers1 ¼” 316 stainess handrails @ boat deck w/welded s/s life linesManship s/s hatch and s/s ladder to cockpit with s/s safety railFresh water wash down outletAFI dual air hornPILOTHOUSEThree extra-large 12mm clear-view forward windowsHelm station with complete engine instrumentation, function alarms & rudder indicatorTeak & stainless steel destroyer-type wheelPilothouse indicator panel for systems readinessMaretron tank indicator sensors for fuel, water, and holding tanks 5.7" monitorBack-lit AC & DC distribution/breaker panelsRocker switches with indicator lights for bilge pumps, lighting & other functions.Three stainless Exalto articulating windshield wipers with a washer systemInterior stairway to flybridge with 316 stainless steel Manship hatchPort and stbd FRP doors with 316 stainless framesOne ventilation overhead hatch with “Oceanair” sliding screen/shadeTwo Stidd 500-200 helm chairs upholstered in Ultraleather and matching powder-coated basesRaised “L” settee with manual high-low tableUpper storage cabinets above the setteePadded vinyl at the forward helm console counter topEngineered hardwood soleUV protectant varnish on all console veneersPadded soft vinyl removable headliner                    Custom starboard day headU-Line 3024R 24" undercounter refrigeratorSolid wood compass baseSALON:Upgraded SS large aft salon sliding doors with full-height glass panelLow/large windows for sit-down visibility"U" settee in salonElectric high-low table with leaves50" custom fold-down LED TVSolid wood crown molding surrounds the salonPadded soft vinyl removable headlinerSecondary engine room access from galley hatch/ladderGALLEY AND APPLIANCES:Granite countertops with overhead storage cabinetsSingle basin Franke PRX11021Grohe sink faucetInSinkErator 1hp stainless steel garbage disposal with top switchGE full-size refrigerator/Freezer with SS doorsU-line refer drawer with teak face to starboardForce 10 65336 220V oven/cooktopGE trash compactorGE stainless microwave/convection oven with cooktop exhaustDrawers & cabinets fitted with push lock latches & lined with FormicaPadded soft vinyl removable headlinerEngineered hardwood soleOWNER'S STATEROOM & HEAD:Custom “full beam” master cabinKing-size walk-around bed with drawers & lockers underCedar-lined hanging lockers with automatic lightingCustom LED fold-down TVTwo LED reading lights over the berth with dimmersSafety escape hatch at overheadPadded soft vinyl removable headliner                    Xtra large view window port and starboardFull-length mirrorGrohe faucets, towel bars, and towel ringsShower with a frameless glass door and an integrated towel barHead ventilation blowerFORWARD GUEST STATEROOM & HEADQueen-size berth, hinged for storage and drawers belowCedar-lined hanging lockers with automatic lighting24” LED TVTwo LED reading lights over the berth with a dimmerOpening 316 stainless port lightsPadded soft vinyl removable headliner                    Grohe faucets and towel ringsShower with a frameless glass door and an integrated towel barFull-length mirrorHead ventilation blowerOne Manship overhead ventilation/escape hatch with Oceanair sliding screenUPGRADESTwin Cummins QSM11 engines20Kw Northern Lights generator to replace the Std 12Kw"Extended Stay Package" Upgrade to 5 Mastervolt MLI Duty-Extreme lithium  batteries, Mastervolt battery management system, and 80amp Delstar       24v/200A alternator2nd Mastervolt ChargerExtended Cockpit with built-in seatingExtended Salon and galleyExtended PilothouseExtended Boat deckCustom Kayak lift at the Boat DeckTNT tender lift/ Swim platformHard top with full enclosureKabola diesel heating system Reverse cycle heat and air(4) Stidd Helm seats (2 PH and 2 FB)Day Head in the PilothouseFlybridge BBQ cabinetWatermakerReverso oil change systemQuickKutters shaft cuttersSeaTorque shaft systemABT StabilizersABT hydraulic bow and stern thrustersJMS joystick controls at three stations with iAnchorElectric roman shades throughout
