2023 Outer Reef Trident 620 Trident EVO

Vinylester resin infused FRP hull with PVC core sandwich constructionVinylester barrier lamination for osmosis protectionMolded stringer/grid systemHull superstructure to be white gel coatTwo (2) coats of black antifouling paint over three (3) coats of epoxy primer below waterlineIntegrally molded rub rails with stainless steel cappingFull length keel extends below running gearCE-approved stainless steel portlightsBoat construction from only 4 major moldsAll deck and hull area hardware attachments are finished with solid lamination – no coringBilge area finished smooth and coated with bright white top coatWindows with 3/8" tempered safety glass in salon and ½' tempered safety glass in pilothouse

Copper bonding system to all underwater fittings with zinc anodesFresh water linesHeadhunter 24v DC fresh water pump with accumulator tank with Whale Backup Pump.Three (3) 24v DC automatic shower sump systems with external pumpAccessible wiring chaseway throughoutExtremely quiet central ventilation system for heads and bilge areasProp Speed propellers

All tankage located in the belly giving more storage and space throughoutOne (1) FRP integral holding tank with a max capacity of 150 US gallons (568 lts) with one (1) Headhunter diaphragm/discharge pumpOne (1) stainless steel fresh water tank with a max capacity of 185 US gallons (700 lts)One (1) aluminum fuel tank with a total capacity of 800 US gallons (3028 lts)Inspection and cleaning ports on all tanks20 gallon water heaterWater Maker 24v, 40 gphWhole boat filtration and UV Sterilization

Two (2) 110v AC GFI outletFRP finish on wallsMain electrical distribution panels with gauges and circuit breakers for AC2.5kw inverter/charger (24v DC to 115v AC 60hz)Single berth (no mattress-work bench currently)Wet Head with Team toilet, sink

Acoustically insulated stand-up engine room lined with sound absorbing material to highest standard.Aluminum checker plate flooringStandard twin Volvo D8 600 hp engines with ZF transmissions and V-drivesSea Torque SystemTwo (2) Kohler quiet diesel 9kw generator 60HzBall-valve bronze seacocks on all through-hulls below waterlineReverso Oil change pump for engines and generatorOne (1) 50amp isolation transformerTwo (2) Racor 1000 MA single fuel filters for each main engineTwo (2) Racor 1000 MA single fuel filters for generatorsFuel polishing systemFireboy fire suppression system including both intake and outlet air shutdown system with aluminum louvers, engine, generator shut downTwo (2) automatic bilge pumps 24v DCFire system and bilge high-water alarm system with warning panelFresh water hose bibbAGM (Absorbed Glass Matt) batteries:Two (2) engine banks with two (2) 8D batteries for each bankOne (1) house bank with six (6) 8D batteries with a total 510 amp-hours (24VDC) in lazaretteTwo (2) generator bank with one (1) battery eachTwo (2) 12v battery charger - One on bridge with day cycle 24 series for VHF/ One in Engine Room.One (1) 24v battery chargerTwo (2) battery isolatorsTwo (2) 24v DC blowersTwo (2) 110v AC GFI outlets with water proof covers316 stainless steel safety rails around enginesWatertight bulkheadWatertight aluminum engine room doorBlue LED lights under engines

Aft deck with teak deckingFRP built-in swim platform with teak deckingDrop down flush mount dingy chocksHydraulic swim platform lift Stainless steel cassette swim ladder on swim platform – deployable from waterStairway built-in to port and starboard side, from swim platform to aft deck with stainless steel tube gate doors and laid teak stepsAft deck FRP bench seatingSunbrella® furniture fabric for aft deck and sunbedAft deck door and opening windowFRP weather tight door on transomTransom shower in recessed box with hot and cold water supplyFresh water wash down outletStair to sun deckSide gates port and starboardOne (1) 50 amp shorepower inlet with single Glendinning cable master for 110v/220v 60hzOne (1) 110v AC GFI outlet316 stainless steel heavy duty cleats secured to stainless steel backing plates on bulwarksDeck scuppers piped out through hull at boot stripe316 Stainless steel hand rail to and from aft deckTeak cap rails around the setteeCovers on all cushionsCockpit Sun ShadeWindshield Cover (black mesh) front windows

Walk Bay 340 Inflatable with 40hp Yamaha Outboard 35 hours

Teak side decksWeathertight door opening into pilothouse on starboard side onlyHouse side fixed windows with tinted tempered glassTwo (2) sets of spring-line cleats per side flush mount, retractable One (1) 316 stainless steel cleat per side set on anchor plinthMolded FRP cap rails

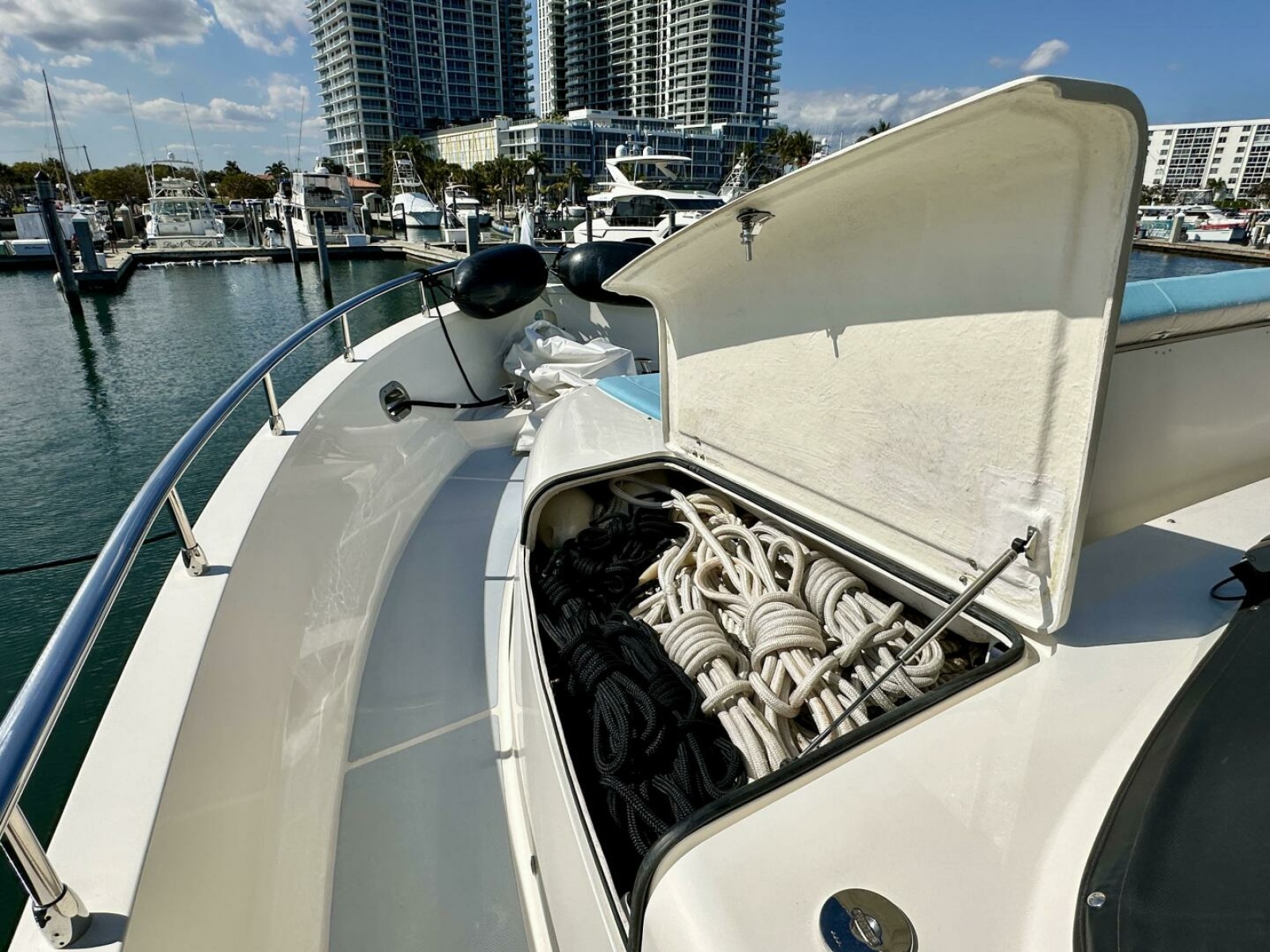

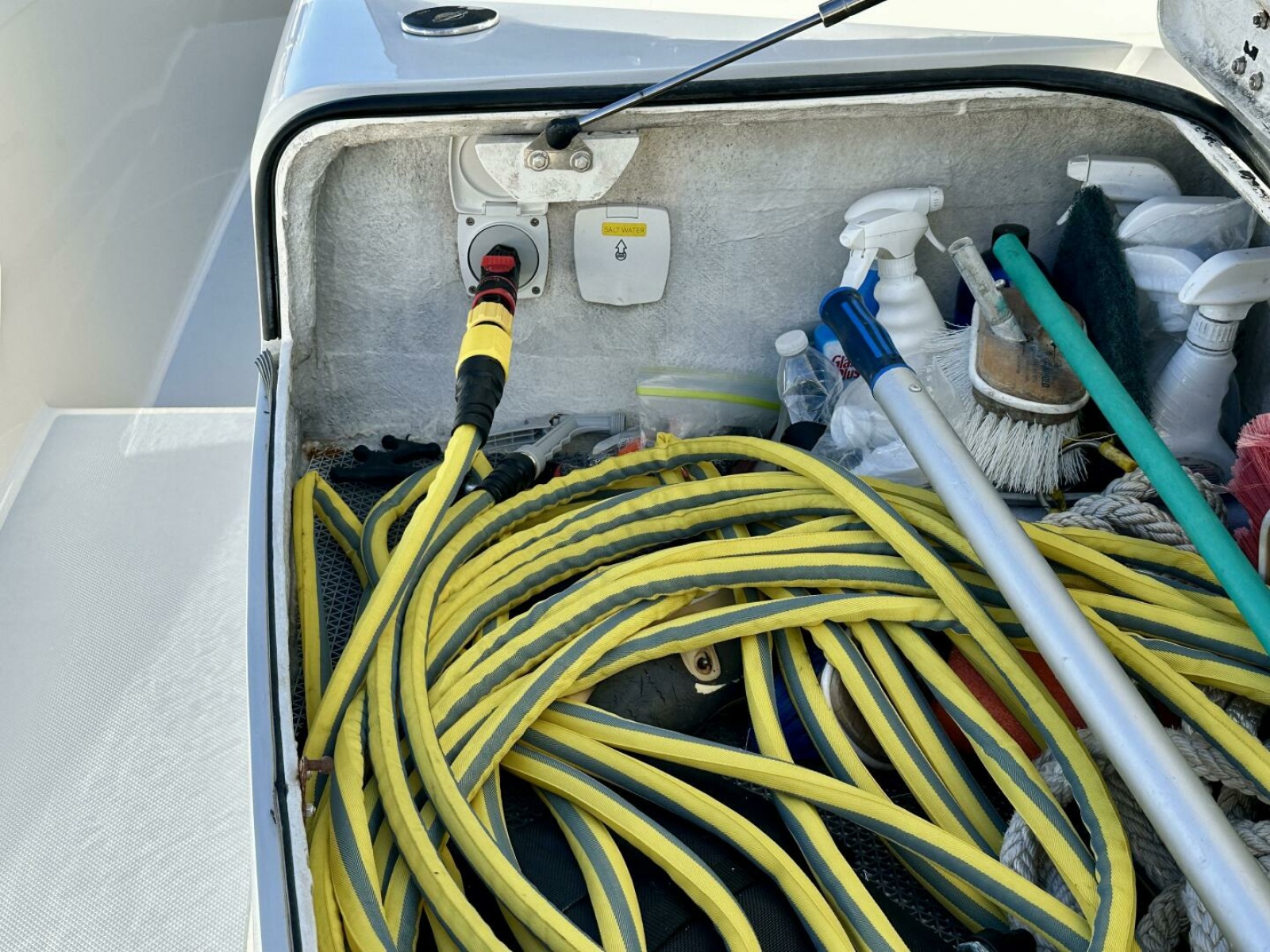

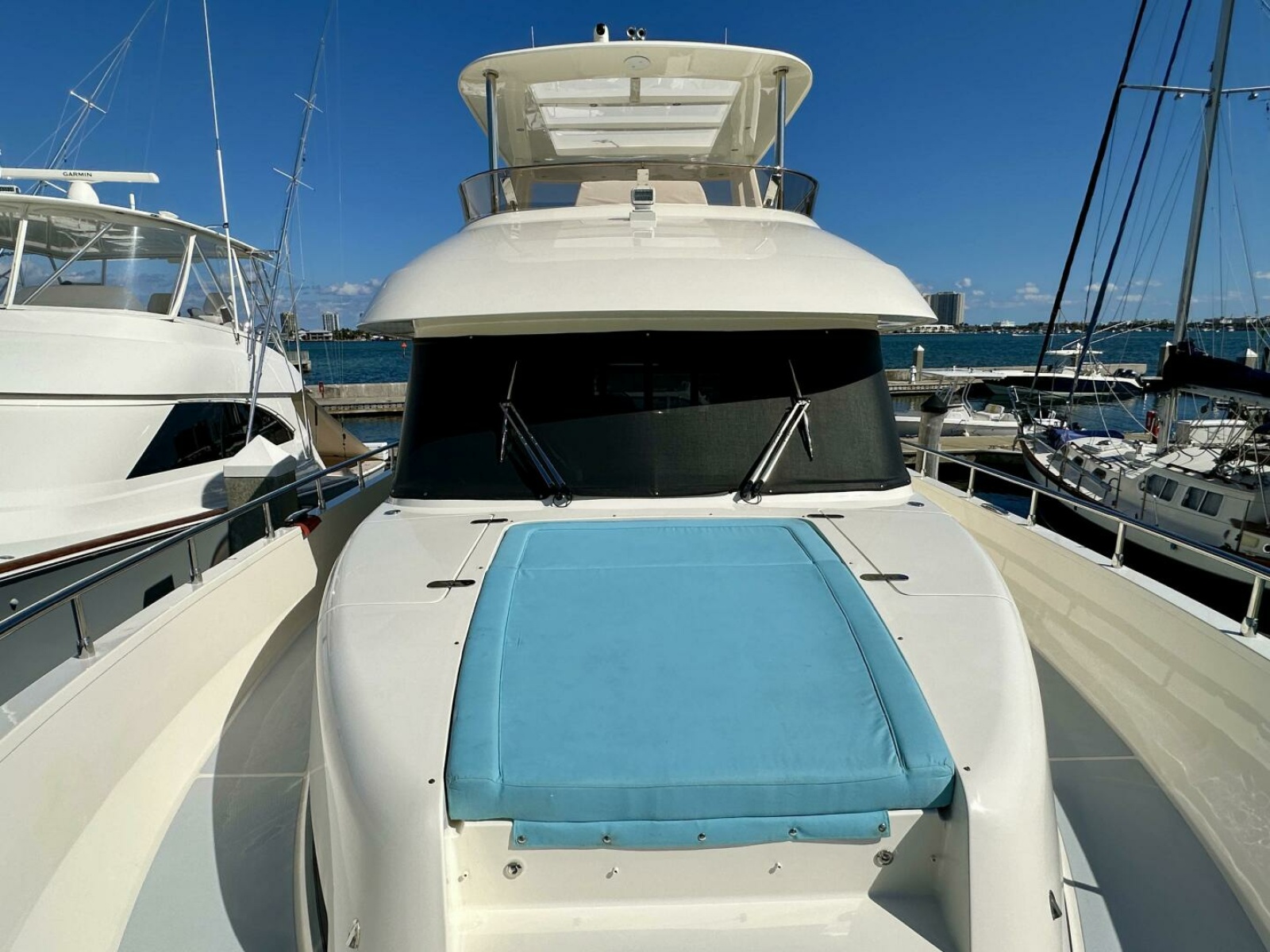

Foredeck with white non-skid surfaceWindow on front of foredeck trunk316 stainless steel rails on bulwarks per designer details316 stainless steel stanchions to support handrailDeck lockers within coach house sides forward either side finished in white epoxy paintSun pad with hinged backrest and hinged seating backrestMolded FRP cap rails316 stainless steel anchor roller at bow75lb stainless steel Ultra anchor with 393' long 10mm high test chainLofrans x3 1700w, (24v) vertical windlass with wireless remoteCustom bow flag staffSalt water and fresh water stainless steel faucets inside foredeck lockers

Wide beam deck with white non-skid surface and ample storage spaceVenturi windscreen with 316 stainless steel railsMolded FRP steering console with engine controlsElectronics console4" magnetic compassVesper Cortex VHF with AIS and Anchor Alarm System.Volvo Steer by Wire systemSteering wheel - TiltOne (1) Stidd helm bench seat with powder coated base and naugahyde fabricFire system repeater alarmOne (1) L-shaped settee with Sunbrella® furniture fabric for cushions and one (1) white FRP table to portFRP seating with storage under to port and starboardFive (5) Aquasignal navigation lights in accordance with appropriate collision regulationsDual trumpet air horn with compressorEdson radar mast with navigation/anchor lightsHardtop Overhead Lights (White) and Blue LED AccentsACR 24v DC searchlight with dual station controlsTwo (2) 110v AC GFI outletsOne (1) 12v DC outlet and USB'sKeyon GrillSink with Hot and Cold H2O2 refrigeration drawers (fridge/freezer)

(2) Garmin 8616 lower and bridgeGarmin Fishfinder and Depth Garmin 48 Mile radarGarmin Auto PilotGarmin/Vesper VHF with AIS class B and anchor alarmSionix low light cameraBack up Engine room cameras Humpree Zero Speed stabilizers - fins work at restHumpree Interceptors Star LinkFusion Apollo stereo with XM Radio

Deck with white non-skid surfaceMesh Safety for Kids and Pets

Walnut InteriorUltra Leather bottoms with fabric backs

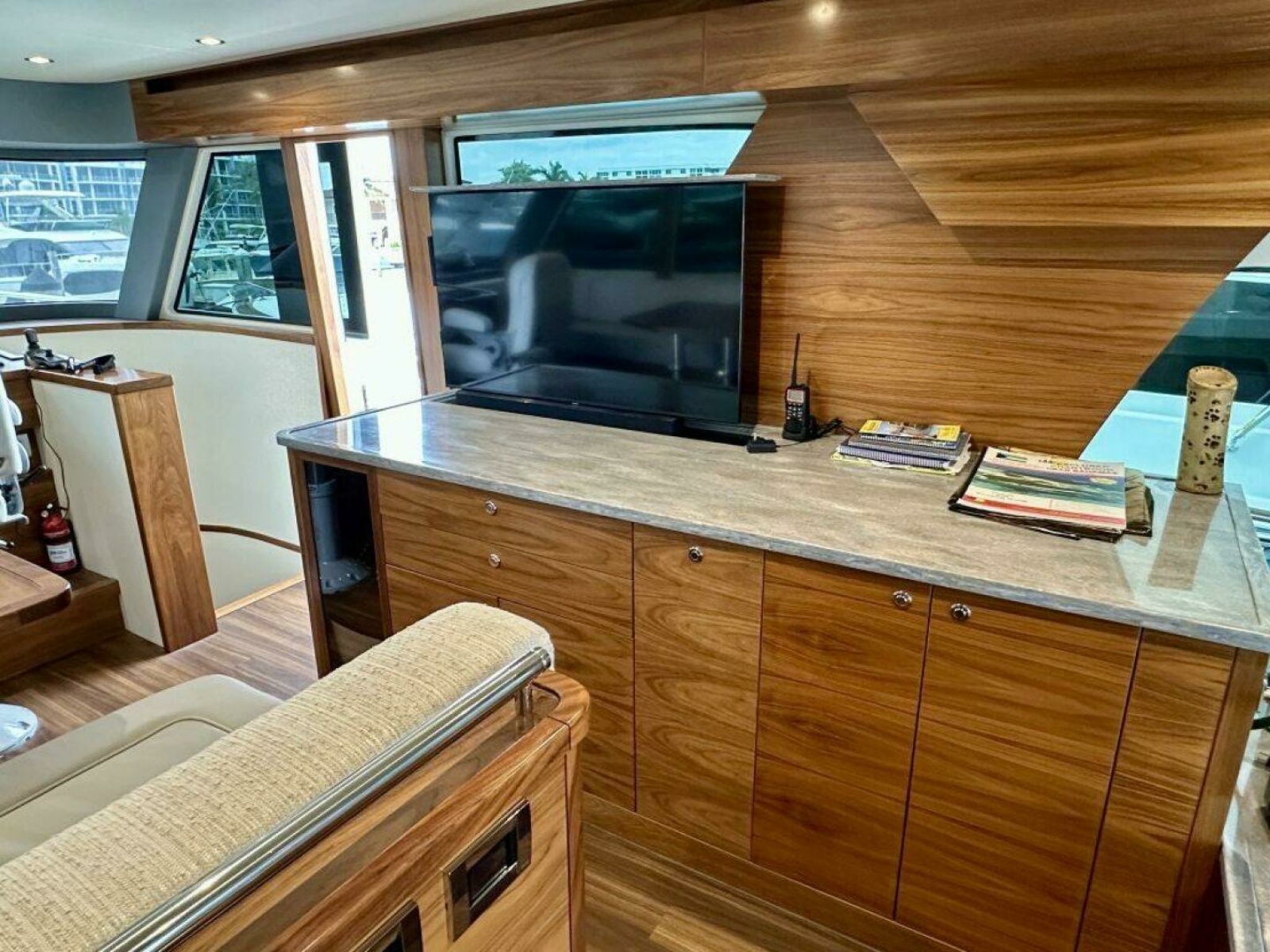

Custom wing door entrance from aft deckFixed windows in house sides with medium 3/8" tinted tempered safety glassValance over windows with LED rope lighting, Pull down shadesBottom Cabinetry Lighting Trident Logo LightsVinyl headlinerBuilt-in L-shaped setteeEntertainment center cabinet with TV liftDrop Down Dinette with option for lounge or sleeping(2) Air conditioning control panelsCabinetry and lockersFour (4) 110v AC outletsOne (1) USB outletOne (1) TV outletPre manufactured wood flooringDrawers with full extension guides and push button latchesChrome door handles on all interior lockers

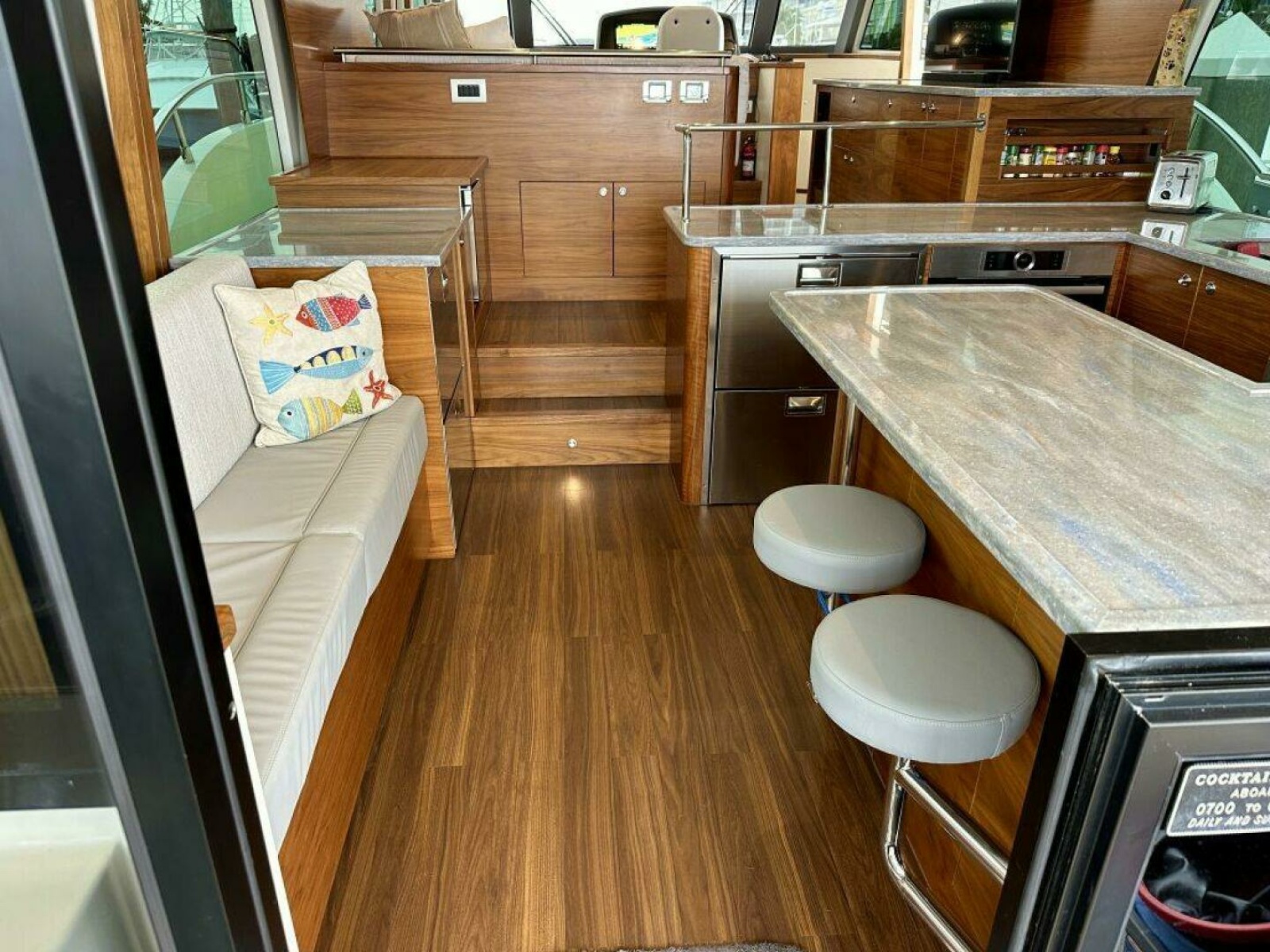

Corian (grey) countertops with a stainless steel under mount sinkCabinet for soap and sponges under the sinkChrome faucet with pull out sprayTwo (2) swing out bar stoolsBench seat with storage opposite galley (port side)Cabinets and cabinet doors with chrome push-button locksSatin varnish on interior veneers Drawers with full extension guides and push button latchesChrome door handles on all interior lockersTwo (2) 110v AC GFI outletsPre-manufactured flooring

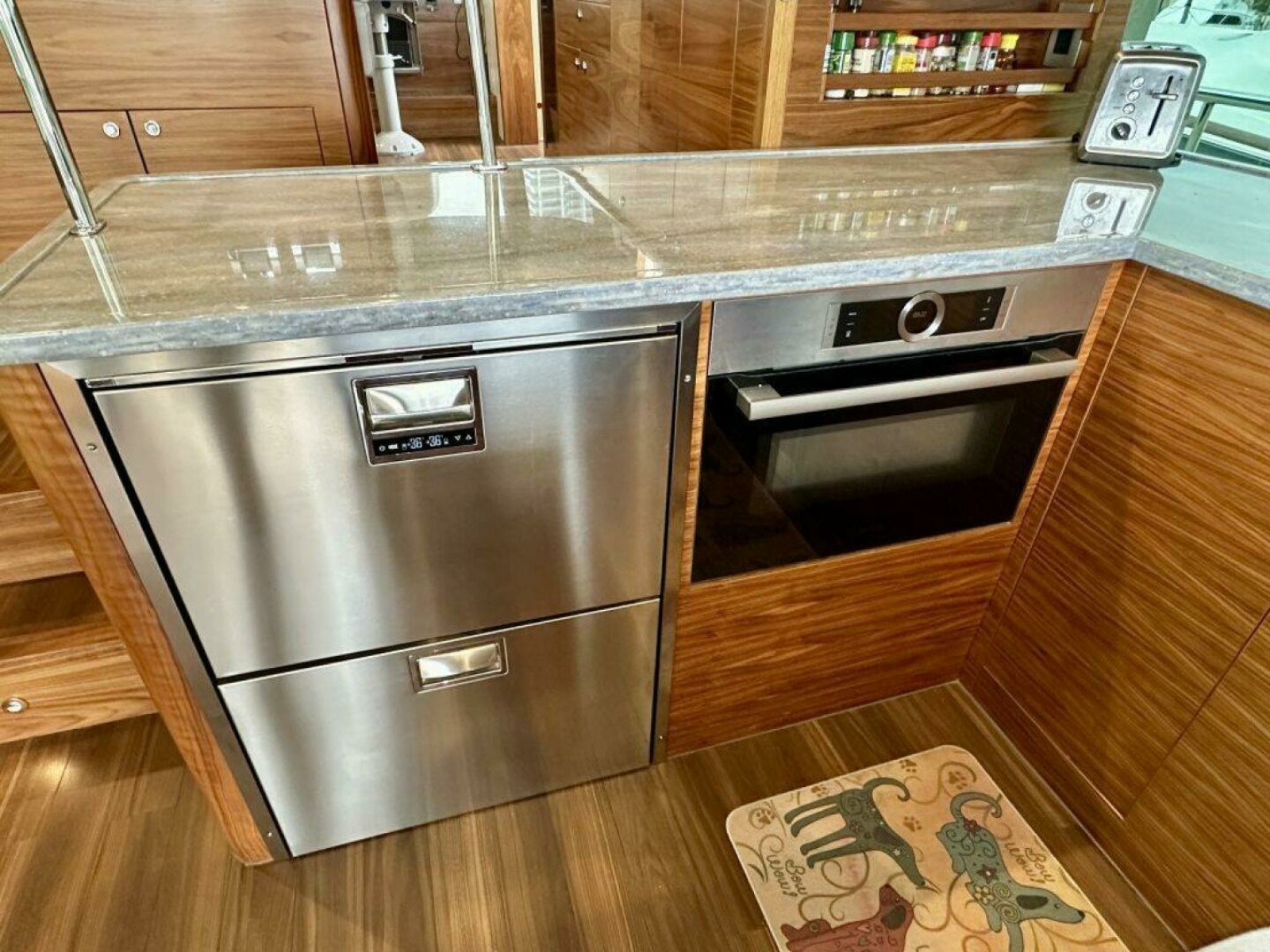

Four (4) -drawer Vitrifrigo DW180 Inox RF 12/24v fridge/freezers (programmable) Bosch fully integrated dishwasher (18" / 45cm)Induction cooktop/hob (36" / 90cm)Bosch compact oven/microwave (24" / 60cm)Exhaust hood (24" / 60cm) **Aft galley configuration onlyGarbage disposalMiele washer and dryer located in lower companionwayDeep chest freezer located in utility room

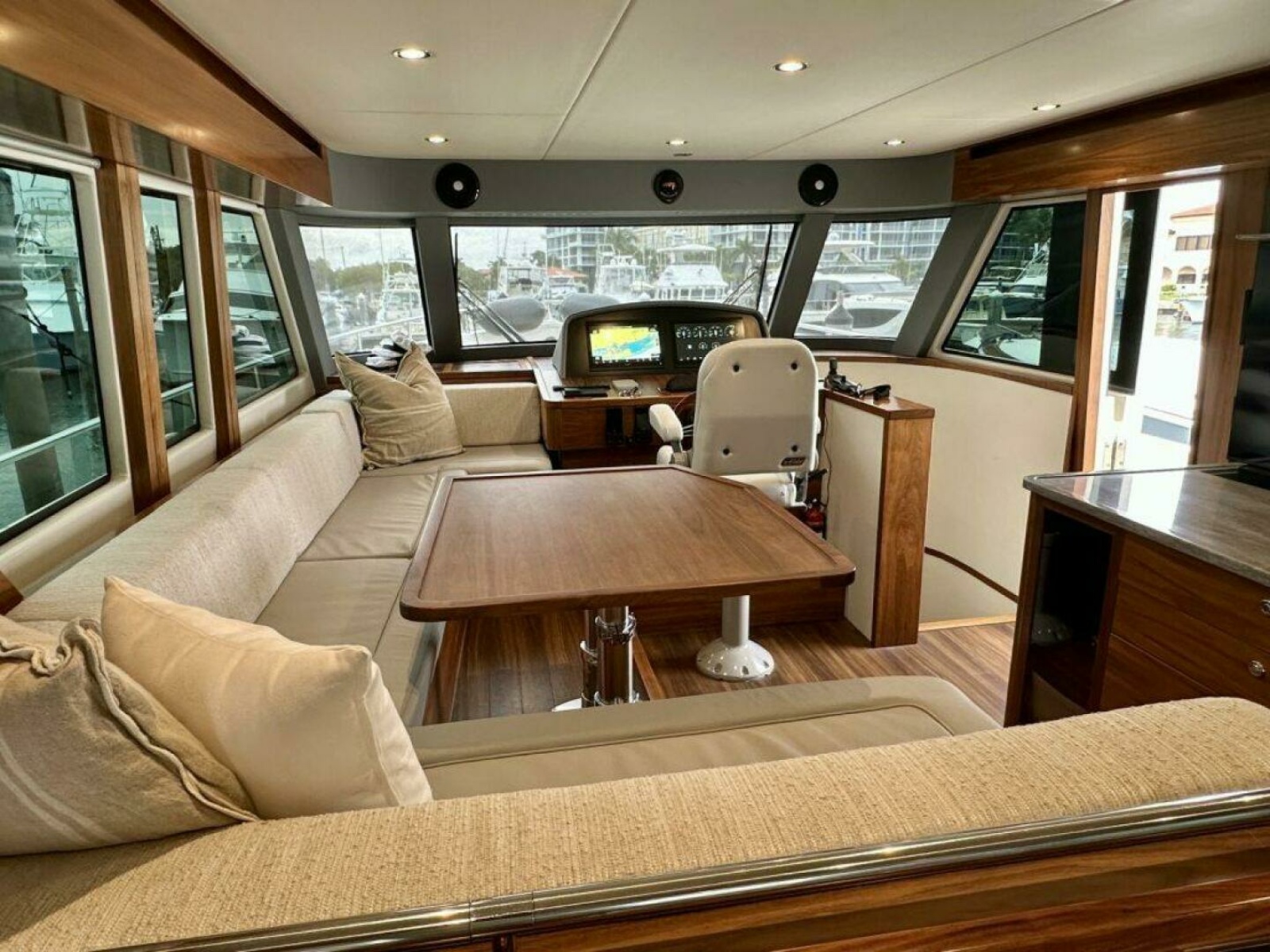

Settee on raised platformDining table - Convertible into lounge/sleeper One (1) chart lightLED red and white bridge lightsTwo (2) 110v AC outletsOne (1) 12v DC outletOne (1) Stidd helm seat with powder coated base and Naugahyde fabricEngine display screens on GarminVolvo electronic steering wheelVolvo throttle and controls4" magnetic compass (overhead, flush)Two (2) stainless steel dual speed self-parking windshield wipers with wash down system½" clear tempered glass in forward facing windshieldsVinyl headlinerGenerator control panels24v DC to 12v DC converterWindlass up/down switch and control circuit breakerWeathertight door opening out to starboardCurved stairway leading to accommodationsPre-manufactured flooring

Curved stairway from pilothouseBulkhead finished with wall coveringMeile Stackable washer and dryerAccess doors to stateroomsPre-manufactured flooring

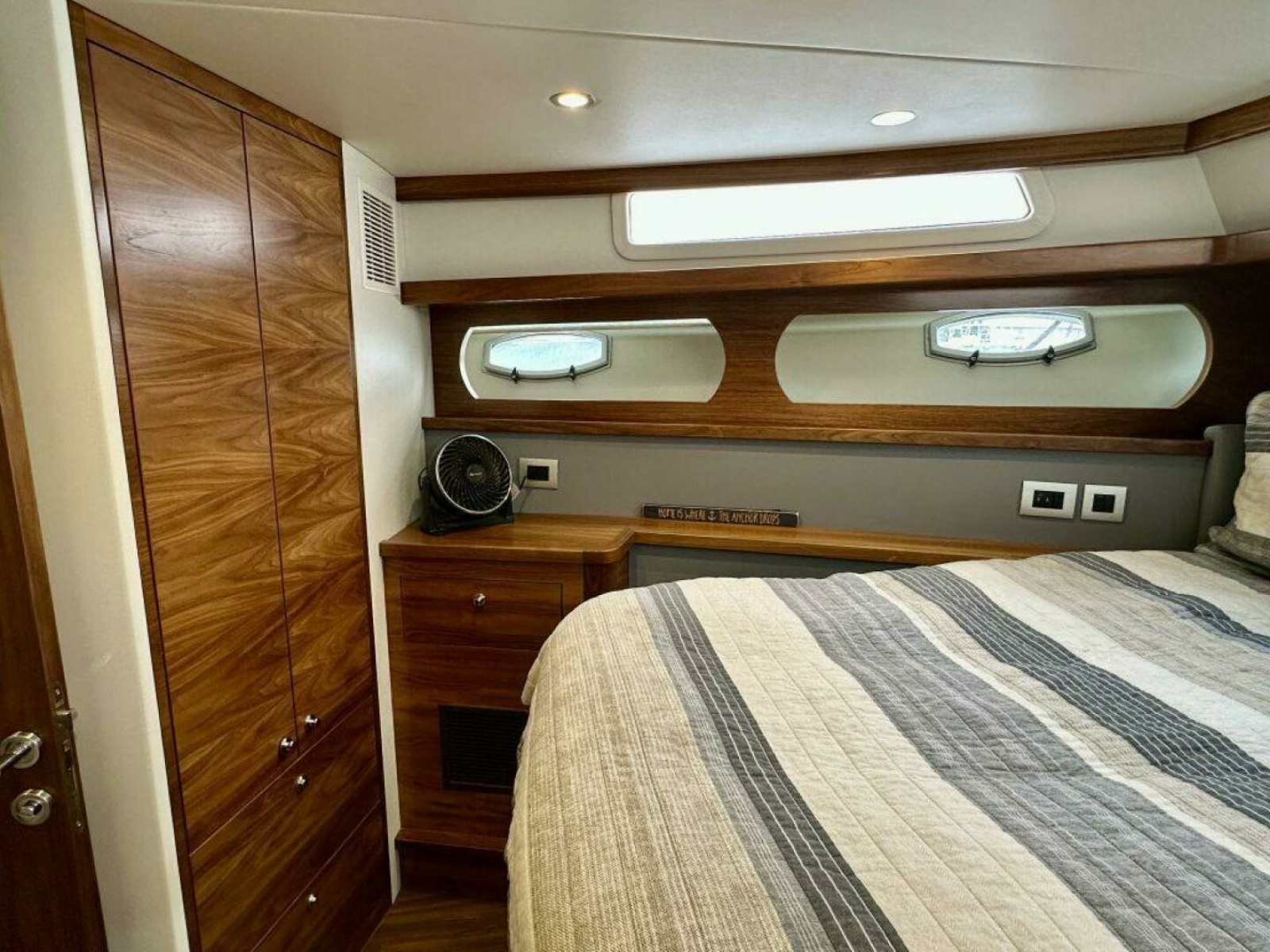

King size berthDrawer storage under the berthLED rope lighting under the bed and at valanceOne (1) walk in hanging locker with doorAutomatic interior lights in lockersDrawers with center guides and stopsDoor stops and holdersBulkheads with wall covering and /or veneerFour (4) oversized CE-approved portlightsThree (3) 110v AC outletsOne (1) TV outletOne (1) USB socketAir conditioning control panelNightstand tables with two drawers eachSatin varnish on interior veneers Drawers with full extension guides and push button latchesChrome door handles on all interior lockersPre-manufactured flooring

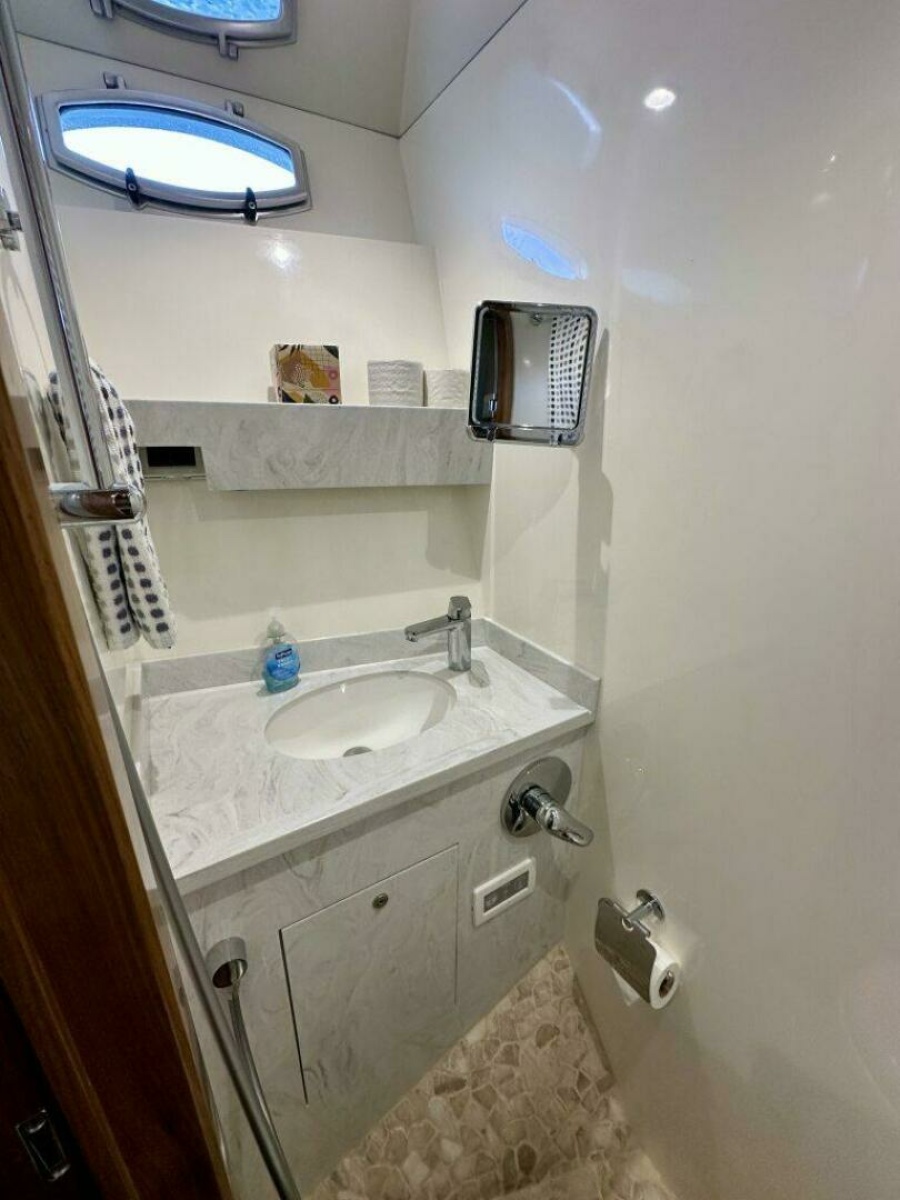

Ensuite head with showerCE-approved portlight in showerMolded white FRP shower with custom frosted tempered glass doorGrohe hand shower with hose and soap dishCorian countertop with white under-mount sinkChrome Grohe center-set single lever faucet at sinkMirrorStorage cabinet under sinkSatin varnish on interior veneersDrawers with full extension guides and push button latchesChrome door handles on all interior lockersTecma 24v electric white toilet with sanitary hose for all discharge plumbingOne (1) 110v AC GFI outletPre-manufactured flooring

Tapered queen-size berthStorage drawers under the berthTwo steps on each side of the berth for easy accessLED rope lighting at valanceFour (4) CE-approved portlightsOne (1) hanging lockerAutomatic interior lights in lockersSatin varnish on interior veneers Drawers with full extension guides and push button latchesChrome door handles on all interior lockersBulkheads with wallpaper and veneerTwo (2) 110v AC outletsOne (1) USB socketAir conditioning control panelPre-manufactured flooring

Ensuite head with showerCE-approved portlightsMolded white FRP shower with custom frosted tempered glass doorGrohe hand shower with hose and soap dishCorian countertop with white under-mount sinkChrome Grohe center-set single lever faucet at sinkMirrorStorage cabinet under sinkTecma 24v electric white toilet with sanitary hose for all discharge plumbingOne (1) 110v AC GFI outletPre-manufactured flooring

CE-approved portlightSingle berth with storage drawers underneathLED rope lighting at valanceOne (1) hanging lockerSatin varnish on interior veneers Drawers with full extension guides and push button latchesChrome door handles on all interior lockersAutomatic interior light in lockerDoor stops and holdersBulkheads with upholstered panelsOne (1) 110v AC outletAir conditioning with control panelPre-manufactured flooring

Head with showerMolded white FRP showerGrohe hand shower with hose and soap dishCorian countertop with white under-mount sinkChrome Grohe center-set single lever faucet at sinkTecma 24v electric white toilet with sanitary hose for all discharge plumbingMirror with medicine chest
