2026 Toy Marine 51 Fly

Hull length 15,01 mt. 49.3 ftLength overall 15,74 mt. 51.6 ftLength at waterline 13,64 mt. 44.7 ftBeam 4,80 mt. 15.9 ftDraft (max) 0,90 mt. 2.9 ftDisplacement (half load) 19.5 tonsEngines N. 2 Volvo D8 600HpPropulsion IPS 800Fuel capacity 580 UK gallons (2200 Lt)Water Capacity 130 UK gallons (500 Lt)Cruising speed 26 knotsTop speed 33 knotsDesign: Nauta DesignCertification CE – B offshore

Vessel built in accordance with CE certification, cat. B offshoreSandwich hull sides and single skin bottomStructural bulkheads in marine grade plywoodWatertight bulkheads: bow - midship / engine roomHull colored gelcoat in accordance with client’s selectionHinged transom doorGRP swimming platform with teak gratings

Deck and superstructure with fly bridge laminated in GRP sandwich with PVCcore.White gelcoat finish with sprayed non-skidEngine room accesses, N.1 systems locker hatch and anchor locker hatchForepeak for anchor winch and chainTeakCockpit, helm station and dinette sole covered with 10 mm teak and solid side coamingsSolid teak sheer line toe railHatches, portlights and windowsLow profile deck hatchesCustom smoke grey safety glass windshield with PVB and UV treatmentWindshield center section opening with upper hingesN.2 wipers with freshwater washer. Pump connected to boat freshwater tankHatches handles and hinges in stainless steelPortholes with safety stainless steel enclosures / darkenersDeck accessoriesFlagpoleStern recessed telescopic hydraulic gangwayHidden deck shower with hot and cold fresh waterCourtesy foot-lightsTender liftInox Swimming ladder withdrawn in the aft platformMooring systemN.1 2000 W anchor windlass with remote switches at helm and forepeakStainless Steel Trefoil type anchor Kg 20Stainless Steel stem plate with mooring fairlead integratedGalvanized 10 mm steel chain, 60 m length with swivelN. 6 flush deck cleats, N.2 on the bow, N.2 midships, N.2 at sternN. 2 flush deck stainless steel cleat on the swimming platform form tender mooringN. 4 mooring fairleads: N. 2 on the bow, N. 2 at sternN. 10 Folding pad eyes on the deck toward the CL. for fenders

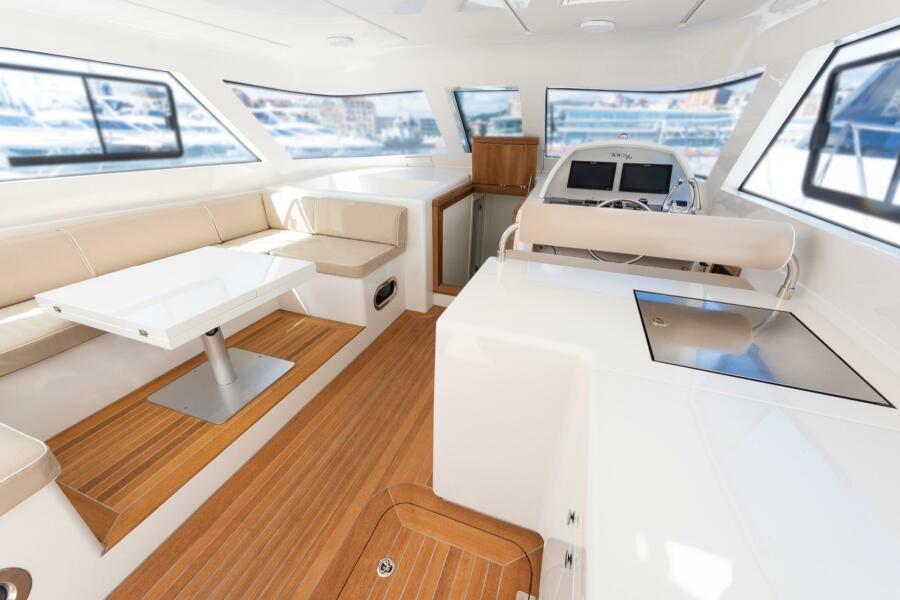

DinetteC shaped lounge with folding CL seatTeak covered hi-low tableGalleyOpen galley on stbd side facing the dinetteInduction cooktop with two burnersSink with hot-cold mixer faucetRefrigerator 110 l.Freezer sunk in countertop 50 l.Steering stationDouble helm seat to the front of the galleyHelm console with instruments and engine controls and various3” Ritchie magnetic compassOngaro Stainless steel steering wheelHydraulic steering systemFly bridge helm seat and stainless-steel steering wheel with engine controlsUpholstery and canvasDinette cushion with Sunbrella washable external cover.External cushions with closed cell rubber foam and with Sunbrella washable external coverFly bridge cushions with closed cell rubber foam and with Sunbrella washable external cover

Interior materialFurniture and bulkheads and hull linings off white lacquered with teak trims or teak/mahogany veneered, door frames bulkhead flush and teak doorsCabin sole made of marine grade plywood and finished with teak, oak or mahogany veneerDoor handles, and interior fittings in polished stainless steel or satin finishCABINSFront cabinKing size bedN. 2 hanging lockers with drawersDrawers and storage under berth220V 60hz outletN. 1 opening deck hatchN. 2 hull opening portlightsN. 2 bookshelves at stbd and port sideGuest cabinTwin bedsN. 1 hanging locker with drawersDrawers and storage under berth220V 60hz outletN. 2 hull opening portlightsHeadsSink with storage below and vanity mirrorSeparate shower with teak gratinHot-cold lever mixer faucetElectric toilet220 V 60hz outletTeak cabin soleShower with mixer & supportComplete set of bathroom accessoriesOpening deck hatchCrew cabinAccess hatch from port deckSingle bedN. 1 hanging cockerPortholeWashbasin, WC and shower with gratingUpholsteryFoam berth mattresses with liningBedspread quilt and shams available in different coloursUpholstered ceilings in sky leather

Volvo D8; 600 hp.IPS 800Integrated LowspeedVolvo Penta Interceptors system for stability controlFuel system50 mm Stainless steel fuel fills on deck with drainStructural GRP fuel tank of 2200 lt capacity, with stainless steel inspection and cleaning port including fills, supplying engines and generatorTank level gauge at steering stationRacor filter for each engineCooling and exhaust systemEngine cooling system with heat exchangerBronze seacocks with valveRaw water strainers with removable stainless-steel filtersIntegrated exhaustVentilation and insulationEngines air intakes in hull top sidesEngine compartments blowersEngine hatches and engine room acoustically insulated with fireproof and washable material

Fresh water systemStainless steel flush fill on deckN°2 structural VTR water tanks for a total of 500 ltrs with inspection portsWater level gauge at steering stationShore water supply connection with pressure regulatorFresh water pressure pump220V AC, 50 lt stainless steel boilerWater distribution system for galley, head and cockpit showerCockpit shower with hot and cold waterSalt water systemRaw water pressure pumpManifold for distribution to WC, galley and anchor locker chain washerGrey water systemGrey water tank for head sink and shower including 24V drain pumpGalley sink with overboard dischargeBlack water systemN. 3 electric toiletsBlack water polypropylene tank with electric sump pump and Y valve, 150 l.Alarm for full tank, valves manifold for dock / overboard dischargeBilge systemN. 3 24V DC automatic bilge pumps. One in aft peak, one mid ship / engine bay, one for cabin / forepeakBilge pumps have automatic switch floats and manual override switches on helm consoleN.1 emergency hand bilge pump in cockpit with three-way valve to drain all bilges and overboard discharge with siphon and safety valve

220 V AC 60hzWatertight inlet for shore power 50 Amp.Power genset 9 KW 220V AC 60hz.24 V DCService batteries set 24V 640 Ah.Engines and genset start batteries set 24V 240 Ah.Electrical panelsMain distribution panelFuse panelBatteries switch panelCockpit control panelEquipmentN. 1 24V battery charterN. 2 24V 80A engine alternators1 Inverter 2000 WLightingWatertight led spots in head, dinette and galleyLed spots in accommodationBed reading lightsN. 4 watertight cockpit foot lightsVariousRegister approved navigation lights. Switches for navigation lights on helm consoleEarthing systemCathodic protection with sacrificial anodes

N. 1 VHFHi Fi integrated system, 2 dinette speakers and 2 watertight speakers in cockpitGPS and Plotter including depth sounder and autopilot

Firefighting system in engine compartment with emergency control installed atsteering stationDelivery and documentsSea trialsSystem testCE / RINA certification (12 people)CE approved owner’s manual
