2001 J Boats J 46

Pre-Sale survey available to qualified buyers

IJPE: 1020.00 sq ft I: 58.50 ft J: 16.67 ft P: 53.50 ft E: 19.92 ft Working Sail Area: 1021.00 sq ftQuantum Tri-Radial Polyester / Dyneema composites- Five full battens -2023135% genoaMC6000 105% cruising jib - Approximately 10 seasonsAntal mast carsDutchman flaking systemAsymmetrical spinnaker with Banmar top-down furler and Selden carbon fiber bowspritHarken Mark II roller furling system

LOA: 46 ft 0 inBeam: 13 ft 10 inLWL: 40 ft 6 inMaximum Draft: 6 ft 2 inDisplacement: 24400 lbsBallast: 9330 lbsHeadroom: 6 ft 2 in

Zodiac RIB9' 6"Hull FiberglassYamaha 15 hp 2-cycle engine2017

Total Power: 76 HPEngine 1:Engine Brand: YanmarYear Built: 2001Engine Model: Yanmar 4LH-TEEngine Type: InboardEngine/Fuel Type: DieselEngine Hours:2500Propeller: Folding propellerEngine Power: 76 HP

Fresh Water Tanks: (120 Gallons)Fuel Tanks: (90 Gallons)

Number of single berths: 3Number of double berths: 2Number of cabins: 2Number of heads:

Electric windlassNew replaced Dodger and bimini coversRe-wrapped leather wheelSolar panels on BiminiMagma infrared gourmet BBQ grillNew doradesNew replaced aft showerNew foot switches for windlass

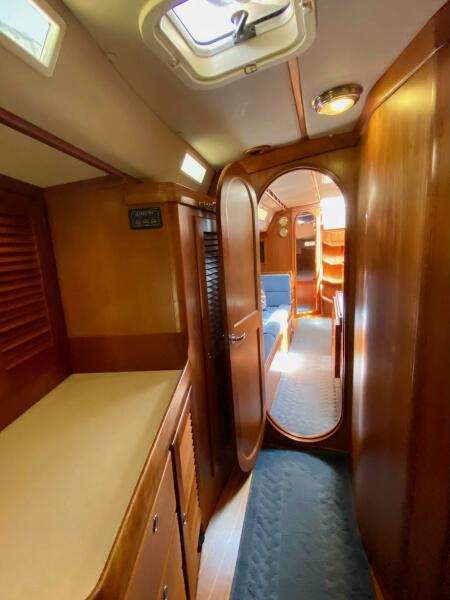

Satin varnished cherry bulkheads and furniture panels with coldmolded cherry trim, drawer and cabinet facesmain bulkhead with single opening and recessed cherry paneled doorwith Mobella lock-setsForward and aft heads trimmed with teakCherry trimmed vinyl headliner throughout forward, main, and aftcabinsPolyurethane teak and holly veneer floor panels with underside andend-grain sealed epoxyInterior cushions5" Layered and bolstered main settee split wrap-around cushionswith two-tier split backrests5” memory foam cushion in forward and aft cabinsLarge twin berth forward cabin featuring 4 drawers, 4 lockers, hinge-up bunk tops to maximize storageHinged v-berth filler, changing seat, hanging locker with louvereddoor and bureau/ vanity with 2 drawers, locker and cabin above withcherry louvered doors and shelves Forward head includes vanity with mirrored acrylic slider storage,teak towel rack, mirror storage cabinet below molded sink, enclosedby cherry paneled door and white laminate finish on head sideStall shower with teak slat bench seat, cabinet locker with mid-height outboard, shower fixture mounted on bulkhead withAdjustable shower faucet self-priming pump services shower, sump and drains overboard in both heads Pilot berth with main cabin to port with small mid-heightconvenience shelf at aft endTwo storage cabinets with louvered doors to accommodate the maincabin entertainment center above starboard setteeTwo book storage shelves between cabinets with removable cherryretainer battensOne large drawer and one locker outboard of the starboard setteebackrest cushionSettee backrests of cherry veneer and cherry trimVarnished cherry wood hull slats in main aft and V-berth cabinsCherry main cabin drop-leaf table with removable fiddles, twodrawers and internal bottle storageLarge 30"x36" sit-down, forward-facing navigation station withhinged tabletop. Features include an outboard shelf, access tochart storage and sliding organizer try below table top, cushion seatof layered bolstered foamInstrument cabinet with two large wood panel faces hinged at thebottom for quick access, file storage drawer below the nav seat to fithanging files. Storage cabinet outboard of the seat and a series of threeutility drawers on the inboard table support face Starboard aft cabin with recessed cherry paneled door, hanginglocker with louvered door and bureau/vanity with two large drawersHinged foot locker and cabinet with cherry louvered door and shelf.Additional drawer above engine Aft head and shower with combined access via cherry paneleddoor. Wet hanging area outboard. The cabinet below, molded sink, mirror,two teak grab rails, and a direct access door to the lazarette locker areequipped with a fore and aft divider Teak companion way steps, cold molded with angled ends andTreadmaster non-skid for safe entrance and exitCherry overhead grab rails in the main cabinAll drawers and cabinets with polished positive-latch push button

Wheat matrix fountainhead color for counter tops with cold-molded varnished and tapered cherry fiddlesScandvik polished 8" deep stainless steel sink recessed below fountainhead on forward island with deluxe hot/coldwater pressureWater goosneck faucet and manual fresh water faucet with whale foot pumpStorage areas in louvered doors below sink for cleaning supplies and a garbage pail with flip lid access6.5 cu Deluxe icebox located on center island. Features include a molded GRP box insulated with Glacier Bay Ultra Rvacuum insulation panels and foam top. Organizing shelves and interior lighting included3.5 cu Ice box, convertible to freezer, located outboard of sink. Featuring a molded GRP box with 3-1/2" foaminsulation and mounting space for refrigerator cold platesThree-burner force 10 propane stove/broiler/oven with thermostat control, patented slide away oven door recess and stainless steel stove bar.Additional storage foot locker below ovenPlate, bowl, cup, and glass storage compartment on bulkhead aft of stoveTop access dry good storage compartment below countertop directly outboard of sinkThree large cabinets are mounted outboard and covered by three louvered cherry doors. Aft two cabinets installed withmid-height shelvesDual slider cabinet, bin storage, and AC outlet mounted below the cabinetsFlatware, utensil drawer, and utility cabinet with mid-height shelf and louvered door under outboard counter. sink-topcutting board stainless steel grab post on forward inboard galley corner

Hot and cold pressure water system with 12-gallon hot water tankService to two headsForward shower, galley, and swim platform showerSelf-priming direct sump pumps for showers draining into seacocksAutomatic bilge pump with float switch and dedicated panel on nav station wired directly to DC system120 Gallons total water capacity in two custom molded tanks, complete with baffles, inspection ports, and secured in place below main cabin settee berthsRaritan PH-2 heads with holding tanksOverboard "y"- valve offshore discharge and holding tank pump out systemsTwo manually operated bilge pumps, one mounted in the cockpit and another in the aft head with a hose to reach the bilge(ORC category 2)

One group 40 (210 amp) and two group 31(105 amp) deep cycle batteries to serve the houseOne Optima 1000 (1,100 CCA) battery for dedicated service to the engine. All batteries are Concorde's Lifeline AGMsealed, absorbed glass mat type seriesProMariner ProMatic 30-3 battery chargerBalmar 91-150 alternator and max charge external regulator with temperature sensor for alternatorBattJMaxx automatic battery system with remote momentary parallel switch near cockpit engine panelMaster battery switch at nav station with 1,2, both, off for house batteries and single on/off switch for engine startbatteryDeluxe bass AC/DC backlit electrical panel with digital condition meters, circuit breakers, accommodations for optionalgenerator installation and air conditioning systemPanel accommodations 33 DC breakers(24 occupied with two spare standard) and 11 AC breakers (9 standard)navigation, steaming/foredeck, anchor, and tri-color masthead lights50 Amp 110VAC shore power system with 6 outlets, 50ft shore power cord, and guest galvanic isolatorBonding system to meet ABYC project E-1Propane solenoid switch panel on galleyTen swiveling stainless steel halogen reading lamps, halogen overhead lights inthe main cabin, flexible arm lamp atnavigation station, two fluorescent lights, one in each headFour Hella variable speed cabin fans over berths

Two Lewmar 64CCST self-tailing 2-speed all chrome primary winches with gear ratio of 3.1:1in 1st gear and powerratio of 64:1 in 2nd gear located in recessed bases on cockpit coamingsTwo Lewmar 54CCST self-tailing 2 speed all chrome halyard/reef/spinnaker secondary winches on cabin trunkTwo Lewmar 48CCST self-tailing all chrome mainsheet winches outboard of traveler in recessed basesThree lock-in Harken speed grip 10" winch handlesTwo 8"speed-grip handles for mainsheetFour cockpit-mounted PVC winch handle holdersThurston cockpit dodger with roll-up forward window, removable side curtains, stanchion supports and stainless steelgrab bar on the aft edgeThurston deluxe helmsman bimini with stanchion supports and viewing windowFive white acrylic cockpit cushions for the helmsman and the cockpit seatTwo Harken black magic 3010 (100mm) foot blocks for genoa sheets when using dodger, mounted on cockpitcoamings aft of primary winchesTwo Harken black magic 3006 (75mm) double foot blocks with lock-off outboard of the primaries for spinnaker sheetsand checkstaysTwo Harken black magic 3005 (75mm) mainsheet foot blocks with lock-offs mounted on angled pads at winches2:1 Mainsheet system consisting of two Hraken 1969 AirBlocks (75mm) mounted in traveler and one 3007 AirBlock(100mm) attached to boom bale Harken 560-S big boat mainsheet traveler track with Harken 1939/1935 car with control blocks for 6:1 purchase ledto both sides of the cockpit to 1893 track control ends through side-mounted 222 blocks to 150 cam cleatsTwo 168 swivel blocks to adjust the traveler from the forward or aft side of the trackSingle rope clutch mounted in cockpit for head sail furlingLewmar Concept 2 anchor windlass system with #203 ropelchain gypsy, manual override, 1S0 amp breaker in navstation, and held control unit mounted in forward deck anchor locker, gypsy requires 3/8" ACCO G40 or G80 chainand S/8" braided ropeCustom 316 stainless steel mast collar with 10 bales for halyard and reef lines and forward halyard barNine Schaefer 08-0S stainless steel halyard and reef blocks with investment cast shacklesFour Lewmar Superlock double rope clutches, mounted in pairs forward of each secondary winchTwo Harken 1969 (75mm) AirBlocks shackled to U-bolts at transom corners for mainsail checkstaysTwo Harken 1969 (75mm) AirBlocks shackled to U-bolts aft on toerail for spinnaker sheetsTwo clear anodized aluminum "T" tracks (12'X1.25") for jib/genoa leads. Additional 3'X1.25" track mounted outboardof 100% jib position for outboard leadsTwo Schaefer 32-33UC screw-pin type jib/genoa lead blocksTwo Schaefer OS-99 snatch blocks for spinnaker twingslor outboard jib/genow leadsTwo stainless steel t-track slider carsAsymmetric spinnaker deck gear, including: two Harken 1969 75mm AirBlocks mounted on U bolts near stern pulpitand one 1969 75mm AirBlock mounted on anchor rollerWhite molded flagstaff mounted in 316 SS deck edge close to center line with 4X6 American flagORC bow pulpit of 316 SS with double rail offshore navigation lilghts and forward gateORC stern rails of 316 SS with two rail split design including a stern boarding gate to starboard and stern lightTapered 316 SS life line stanchions with SS bases mounted to toe railDouble life line height to meet ORC standards with boarding gates to P and S using Gibb hooksPadded Sunbrella lifeline covers for each life line outboard of helmsmen's station color matched to bimini and dodgerTwo 10" bow cleats, two 8" stern cleats, two 8" amidships cleatsCustom designed 316 SS bow rollerSeven Lewmar ocean series articulated, bronze tinted acrylic hatches: size 70 on foredeck, size 60 in main cabin, foursize 12 over forward cabin, aft cabin,shower, head and one size 10 in aft headWhite framed Bomar opening ports with screen in cabin trunk and in cockpit walls for aft quarter cabin and headAcrylic companionway hatch and two-part acrylic offshore drop boards with inside/outside opening, lockabel haspFour 12X20 and two 12X24 poly mesh line bags one foredeck double lined bagFour vetus 4" dorade cowl ventilators to service forward cabin, head and main cabinRemovable stainless guards for forward dorades316 SS swim ladder with gray PVC treads mounted on swim platform. SS PVC tread mounted on transom

Hall spars carbon fiber mast of pre-peg carbon fiber autocalved at 80PSI at 250 deg FMast includes double airfoil carbon spreaders, carbon goosneck, Awlgrip off-white finish, painted black bands, wireruns in conduit, hall/antal main sail J rack with loader and end fittings to accommodate sail maker provided Antalmainsail sliders and or boltropeAlso included with the mast are: Spartite mast wedge material, offshore tricolor/anchor light, bow and deck light withSS guard and J lag halyard cheek block at masthead and cleat at deckHall spars boom of 6061-T6 aluminum with off-white Awlgrip finish, welded goosneck fitting, lug for OuikVang internal12:1 mainsail out haul with external cleat, bale for mainsheet block, and painted bands. Outboard end toaccommodate single line reef to starboard and second clew reef to portHall "J" length carbon fiber whisker pole with 2 bridles and trip line, short track on from of mast and two deckmounted retaining clipsNavtec continuous rod rigging and N690 style open body turn buckle with headstay- 17 pre-assembled furlingsystem, back stay-17, uppers-17, intermediates-12, lowers-22Harken MKII unit size furrling system with airfoil performance extrusion, corrosion-proof spool and drum, taperedtorque tube, AirSwivle for reduced weight aloft, cat aluminum hardcote anodized chafe guard, and all black low stretchNew England adjuster lineHall rigging package includes: two Technora jib halyards and one Spectra spinnaker halyard, each with Tylaska T-12SS shackles and Flemish eye terminations XLS-900 Spectra spinnaker sheets, one XLS Dacron spinnaker tack line, single 3/8" crystalyne checkstays thatcan be clipped forward when not in use, burgee halyard of white 5/32" Dacron cordThree reef lines are also included; tack reef and clew reef #1 together are one continuous reef line to starboardTack reef #2 doubles as Cunningham to portClew reed #2 included with its own dedicated hardware2:1 whisker pole foreguy with Schaefer 504-09 block with snap shackleSailtech-17 long integral hydraulic backstay adjusterHall d-30 aluminum Ouk-Vang with Harken 30:1 cascading adjuster tackle and powerful stainless return spring to liftboom in light air and support boom with sail furled, eliminating the need for a topping liftCustom designed 316 SS chainplates, stemhead, and backstay tang

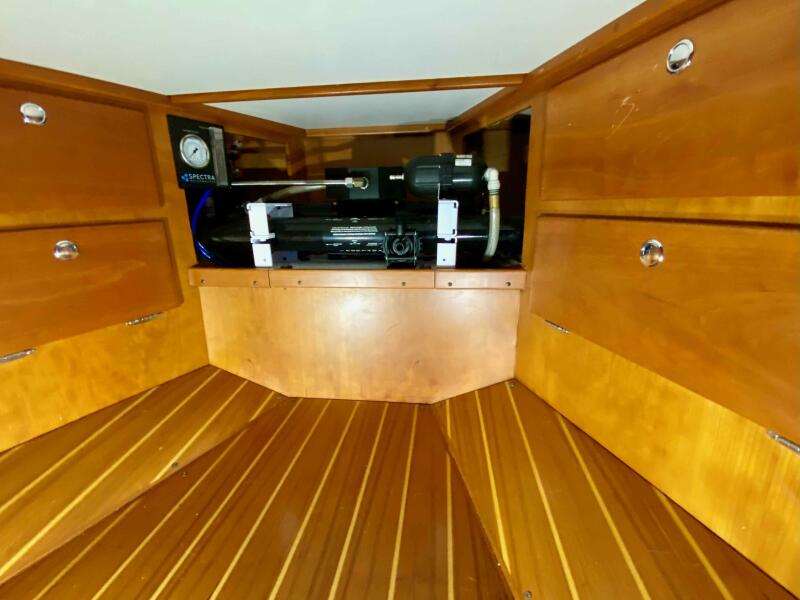

Seafrost mechanical refrigeratorAdditional plates and controls for freezer supplementary 110VAC shore power assistSpectra Catalina 360R Water maker with connections to both water tanksSupplementary Power PackageAn additional 210 amp lifeline AGM battery for a total of 630 amps for house banks (location is instead of bottom of navstation drawer)Heart Freedom 25 inverter/ charger (instead of standard ProMariner 30-3 charger)Heart echo charger (to service engine start battery through the AC system)Heart Link 2000 Battery Monitor ( for two house battery banks)Heart link 10 battery monitor (for engine battery)Supplementary Plumbing PackageVaccuflush forward headDockside water inletSeagull water purifier in the galleyCruising Accessory PackageCockpit tableCompanionway screensEspar D5LC heating system with ducting into two sleeping cabins and main cabinLewmar 64CEST two-speed electric primary winchesUltrasuede or Ultraleather cover cushions in main cabin (instead of standard)Edson radar mast through-deck and under-deck mounting platform (for 3.5" diameter mast)Microwave oven in galleySea water wash down in the anchor lockerHarken adjustable genoa leads

ESPAR diesel cabin heaterLewmar 64 CEST primary winchesBolstered ultra suede cushionsMemory foam in the master cabinRadar mast through deckMicrowave in galleyHarken adjustable genoa car leadsRubrail over cover stripe28" high pulpits and stanchions instead of standard heightSea water wash down pump with faucet in anchor lockerHall spars WindexHall spars no strike lighting dissipaterHall spars GAM antenna and Hall spars painted carbon fiber whisker poleHall Spar whisker pole track and carHall spars 3rd folding mast stepHall spars Dutchman mast sheaveHall spars Dutchman halyardBamar Top Down Furler with Selden Carbon fiber bowspritFlag halyard and hardwareSS turnbuckle cover (6)Cockpit full glass and screen enclosureDodger to bimini insertHelm pedestal coverSS grab rail along aft edge of dodgerSS grab rails port and starboard on dodger sidesSS dodger and bimini supports instead of strapsSS bimini hand rails port and starboardPower engine oil pump-out systemMax prop 3-blade feathering propellerDripless shaft sealMemory foam mattress in forward cabin instead of standardSecond custom V-berth insert for additional standing roomSecond bottom refrigerator doorAlpine stereo AM/FM with Bluetooth, cabin speakers, and Bose marine cockpit speakersWeems and Plath brass ship clockWeems and Plath brass barometerVariable speed cabin fans fore and aft cabins and the main salonAwlgrip hull flag blue with red boot stripes

Navigator pack, Hydra 2000 type 2Standard full function display pack, Hydra 200020/20 Display pack, Hydra with green backlight20/20 Display pack, Hydra with red backlightdepth sensor with bronze flush mount hull housingSpeed sensor with bronze flush mount hull housingAnalog display pack, apparent wind angle, 360 degree with cablelinear rudder position sensor pack with installation kit for type 2 ramPilot ram drive pack, type 2 with cables (12Vdc, adjustable rose joint)Cable, 213 mast with bkt, 80ftPin, quick release, pilotEdson J46 tiller armEdson 3-1/2" deluxe mast 144"B&G 4G RadarB&G 12” Vulcan Chart plotterB&G AIS NIAS-500Edson adapterEdson radar platform deluxeEdson antenna bracket-starboard and portEdson 28" antenna extension (GPS antenna mount)Shakespeare TV antenna 2030-G

ICOM M502 VHF with optional cockpit HM-127 remote12Volt pedestal outletiCom M802 SSB radioIridium GO Sat phoneYB trackerTelephone and TV cable cockpit to nav station

Four regular PFDSix throwable flotation cushionsJonBouy MOB Recovery moduleATN Storm sailFiorentino storm droguePara-Tech Parachute sea anchorTwo jack lines, 45ft port and starboardtwo radar reflectorsOne Bosun ChairOne throwable life slingOne deployable auto-inflatable JonBuoy MOB Recovery Module4 Fire extinguishers- various typesOne submersible handheld HX460S VHF marine transceiver with barometer sensorOne Throwable Rescue line bagOne RIB Zodiac inflatable dinghy with poly pro towing line, bridal, and electric pump1 15 HP Yamaha dinghy motor and aft Edison pulpit motor mountOne Winslow six-person super-light offshore lift raft with SEP packed survival supplies, inflatable insulated double floor, heavy-duty tripod arch tubes with canopyOne hand held a compassVarious rescue flaresLake Michigan, Huron, and North Channel chartsOptions for more, including St. Lawrence, East Coast, Bahamas, and Caribbean

One 44lb Spade anchor with swivel shackle, 100ft high test 3/8" chain and 250ft 5/8" rodeOne fortress Fx-37 aluminum anchor with 15ft 5/16" chain and 200ft 5/8" rode in deployable anchor bag250ft 5/8" line for on-shore anchoringDock Lines and fenders3 Aires inflatable fenders with coversTwo Taylor-made bumpers with blue coversMultiple dock lines and chafe guards3 anchor snubbersOne 50ft 50 amp power cableOne 60ft 30 amp power cableOne 40ft 30 amp power cableOne adapter, 50 amp to 30 ampMaintenance EquipmentOne universal adjustable pole with a boat hookThree fixed boat hooksTwo brush heads and curve endsTwo 50ft water hoses(engine) batteries.

New Trinidad bottom paint 2025Top sides buffed and polished 202512” B&G Vulcan chart plotter B&G 4G Radar Icom M802 SSB Radio Iridium GO Sat Phone YB TrackerB&G AIS Spectra Catalina 360R water maker Bamar asymmetrical top-down furler with Selden carbon fiber bowsprit new halyards, sheets, and dock lines All the dodger and Bimini canvas and the cover for the mainsail - Thurston Canvas Shop. The wheel leather has just been rewrapped Quantum replaced V-berth cushions with Tempur-Pedic type foam 15 HP Mercury dinghy outboard RIB Zodiac Inflatable Quantum Mainsail 2023Starlink satellite internet Solar PanelsMagma Infrared Gourmet BBQ grill JonBouy MOB Recovery Module New Dorades ATN storm sail Fiorentino storm drogue Para-Tech parachute sea anchor 3 aires inflatable fenders Water pump Transom shower Power cord Foot windlass switchesStern rail mount Transom pad

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated.
