Vessel Walkthrough and Details

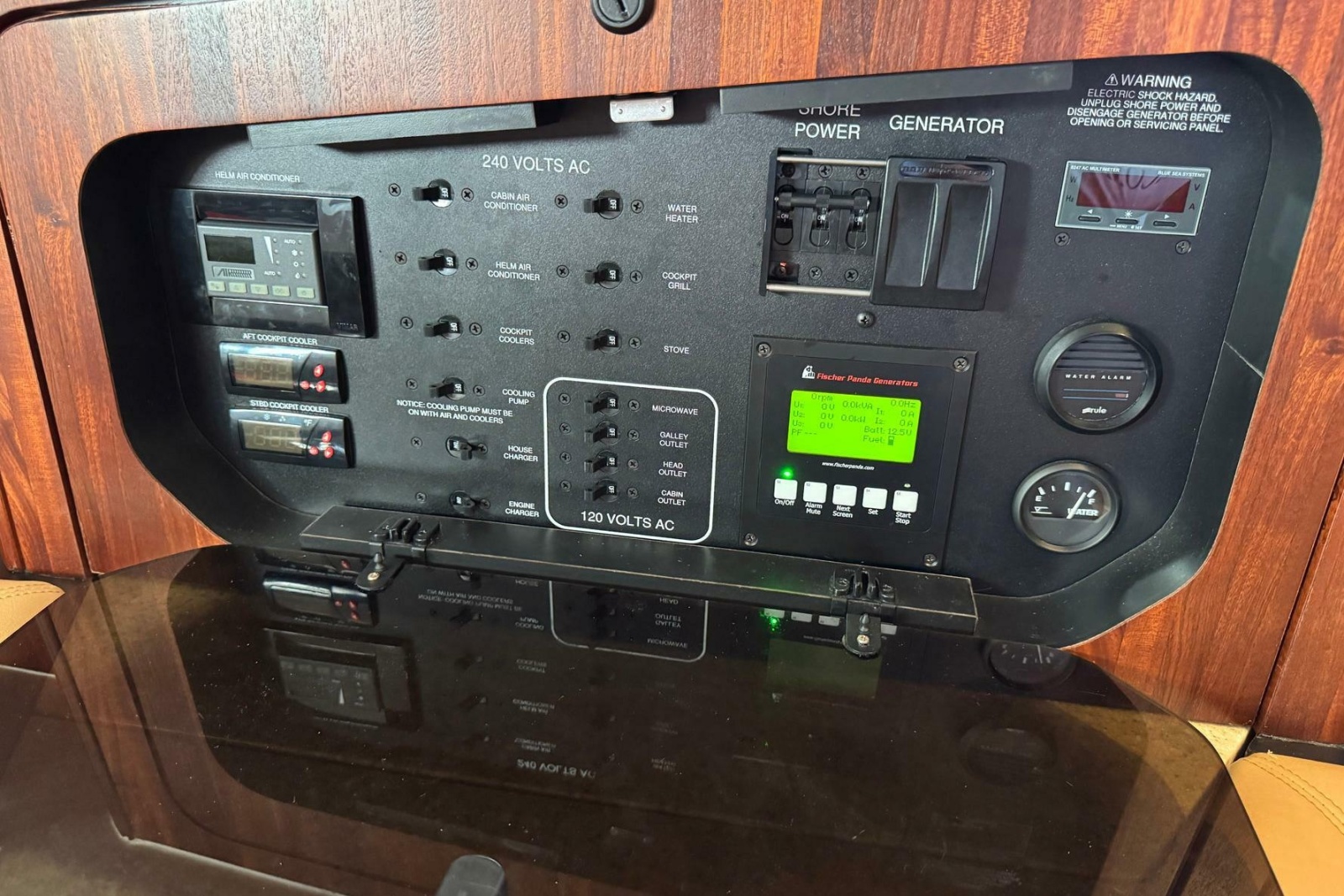

Mechanical/Electrical: Pursuit custom master circuit breaker switch panel for 12V and 110V
Yamaha digital instruments - Commandlink
50-Amp 240V/60 Hz dockside power with 50' cord and adapter
20-Amp battery charger for engines and generator starting batteries
40-Amp battery charger for house, electronics, and bow thruster batteries

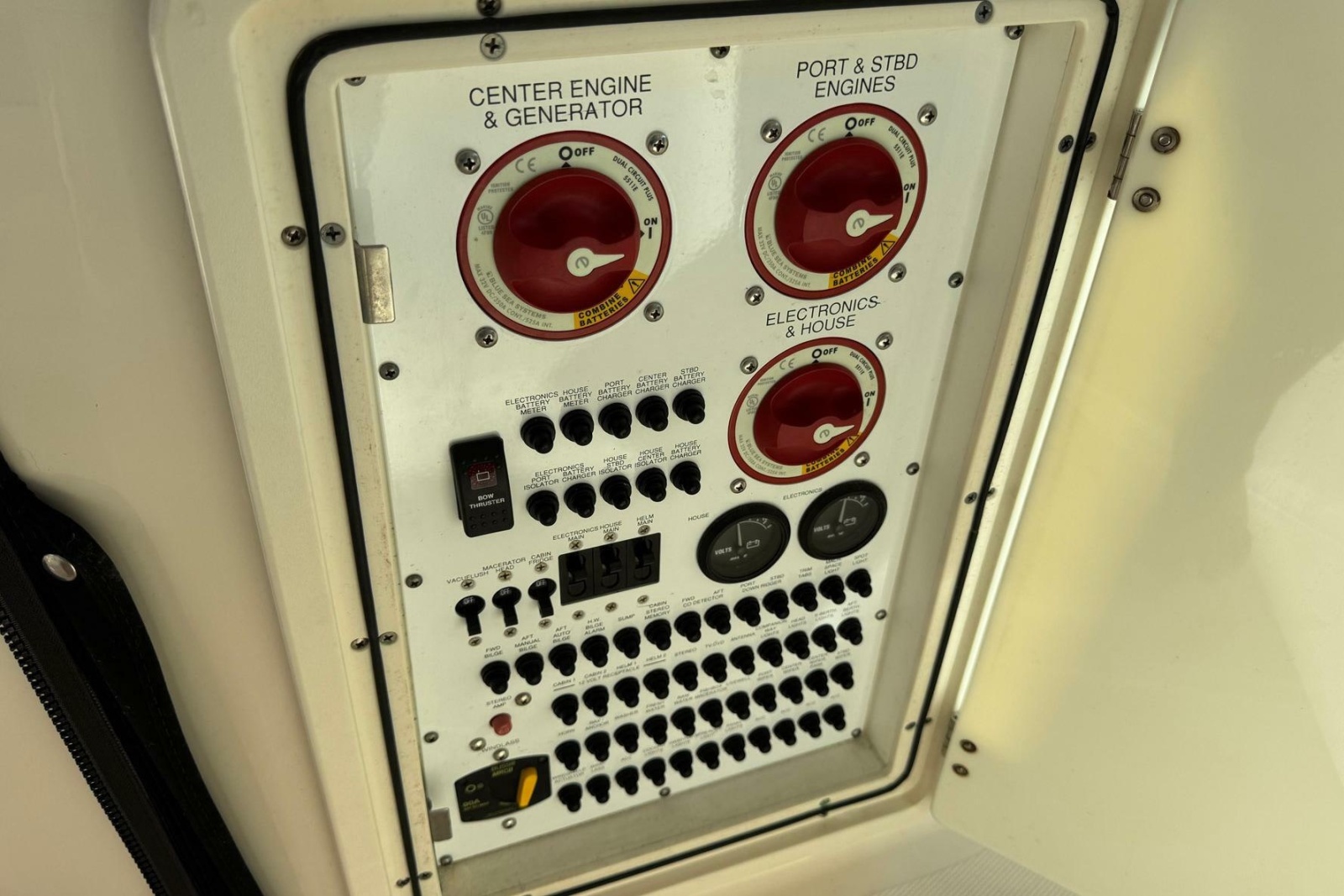

(7) Battery system with batteries, trays and switches
MarineAir 16,000 BTU 240V Air conditioning with reverse-cycle heat
Fischer Panda 9.0 kW diesel generator
25-Gallon diesel fuel tank

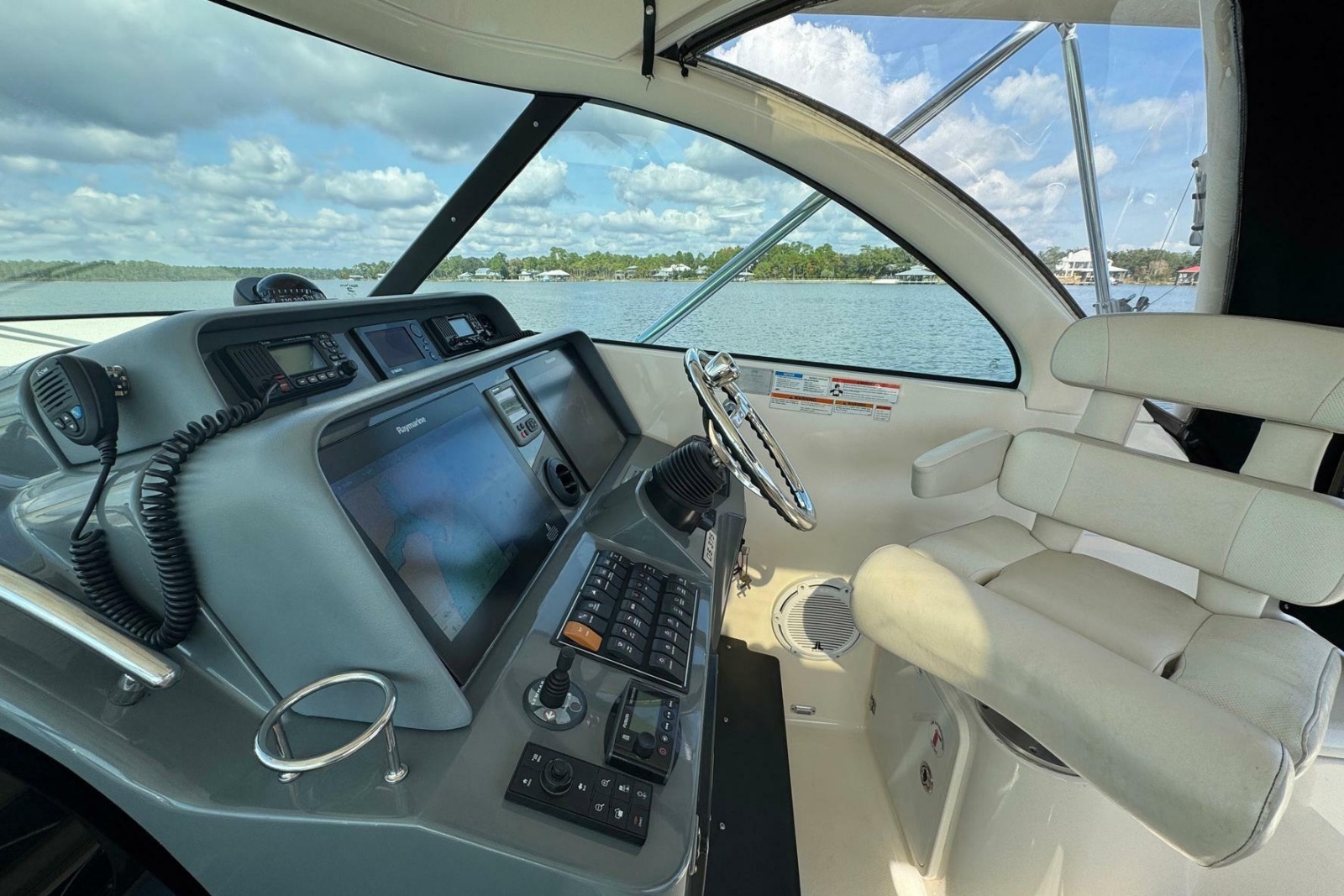

Teleflex power assisted dual cylinder hydraulic steering with tilt sport helm
16" Edson comfort grip stainless steel steering wheel
Deluxe 5" Ritchie compass
Cabin and mid-berth CO detectors
Independent windshield wiper washer controls (4) 12V Receptacles: 2 at helm, 2 in cabin
(3) Fire extinguishers
(3) Bilge pumps: (2) Rule 1500 with float switches, one (1) Rulemate 100 automatic
Certification/standard compliance: ABYC, USCG
High water alarm and audible indicator Fishing: (4) Stainless steel rod holders in gunwale
50-Gallon lighted "Oceana Blue" reticulating live well with bottom drain plug

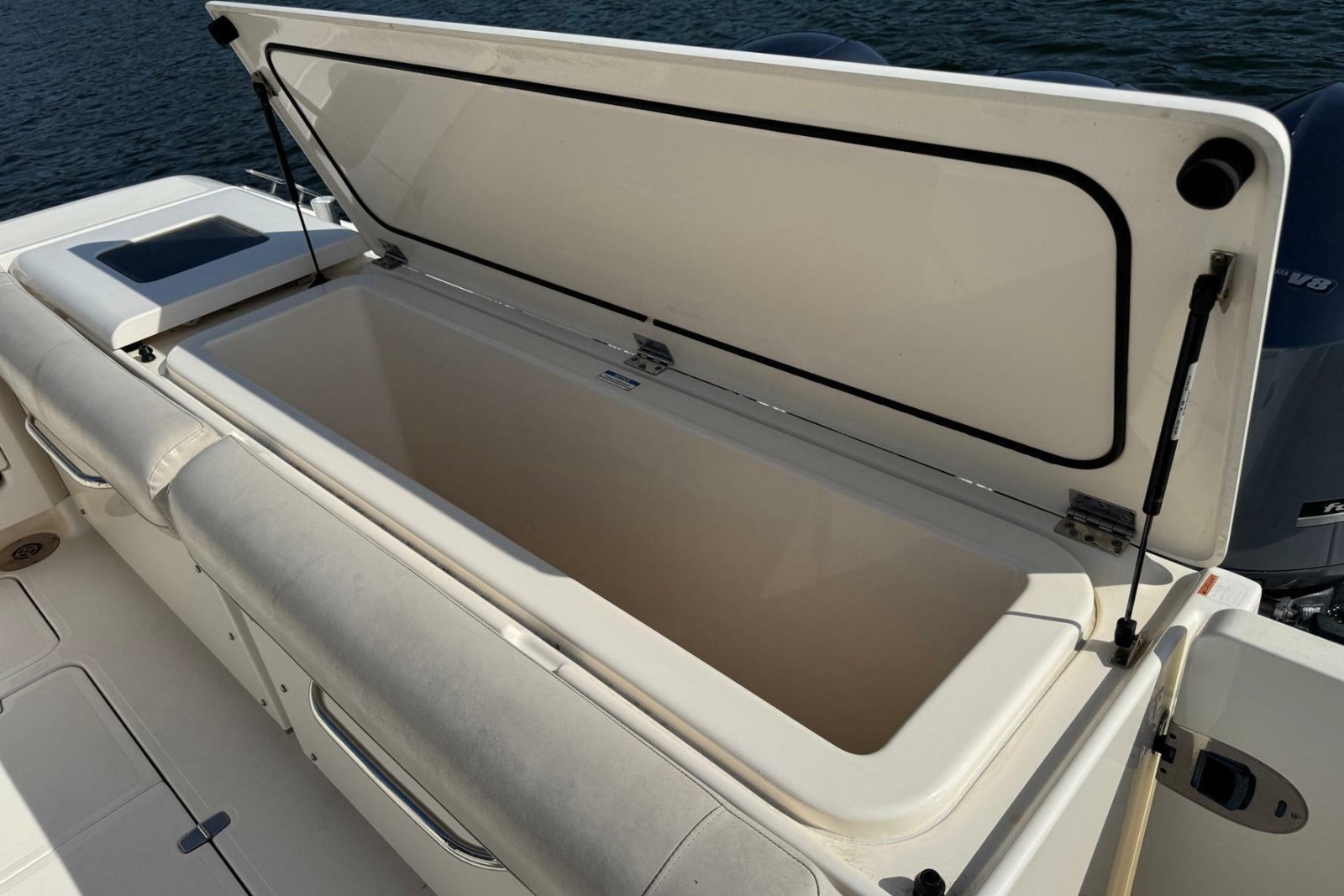

75-Gallon in-transom fish box, insulated fiberglass refrigerator/freezer with digitally controlled thermostat and overboard drain

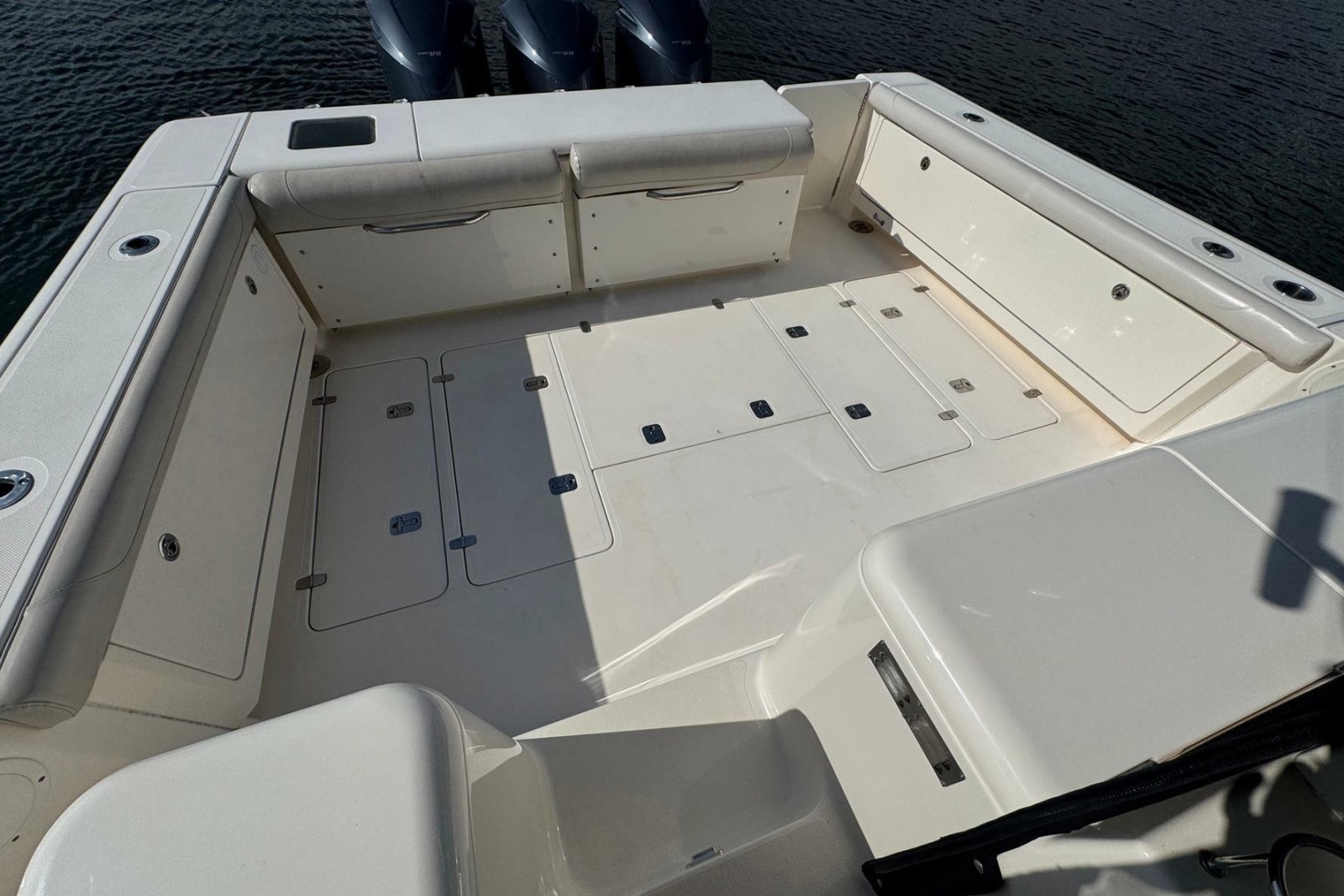

68-Gallon in-deck fish boxes, insulated, located port and starboard; diaphragm pumps with overboard discharge
(3) Cabin rod holders, (6) Gunwale rod storage, enclosed and lockable
Reinforcement for fighting chair
Rupp outriggers, port and starboard Cockpit/Helm/Deck: Custom cockpit upholstery with Dri-Fast foam and mesh backing
Captain's chairs with swivel bases, foldable armrests, fore and aft adjustments and flip-up bolster

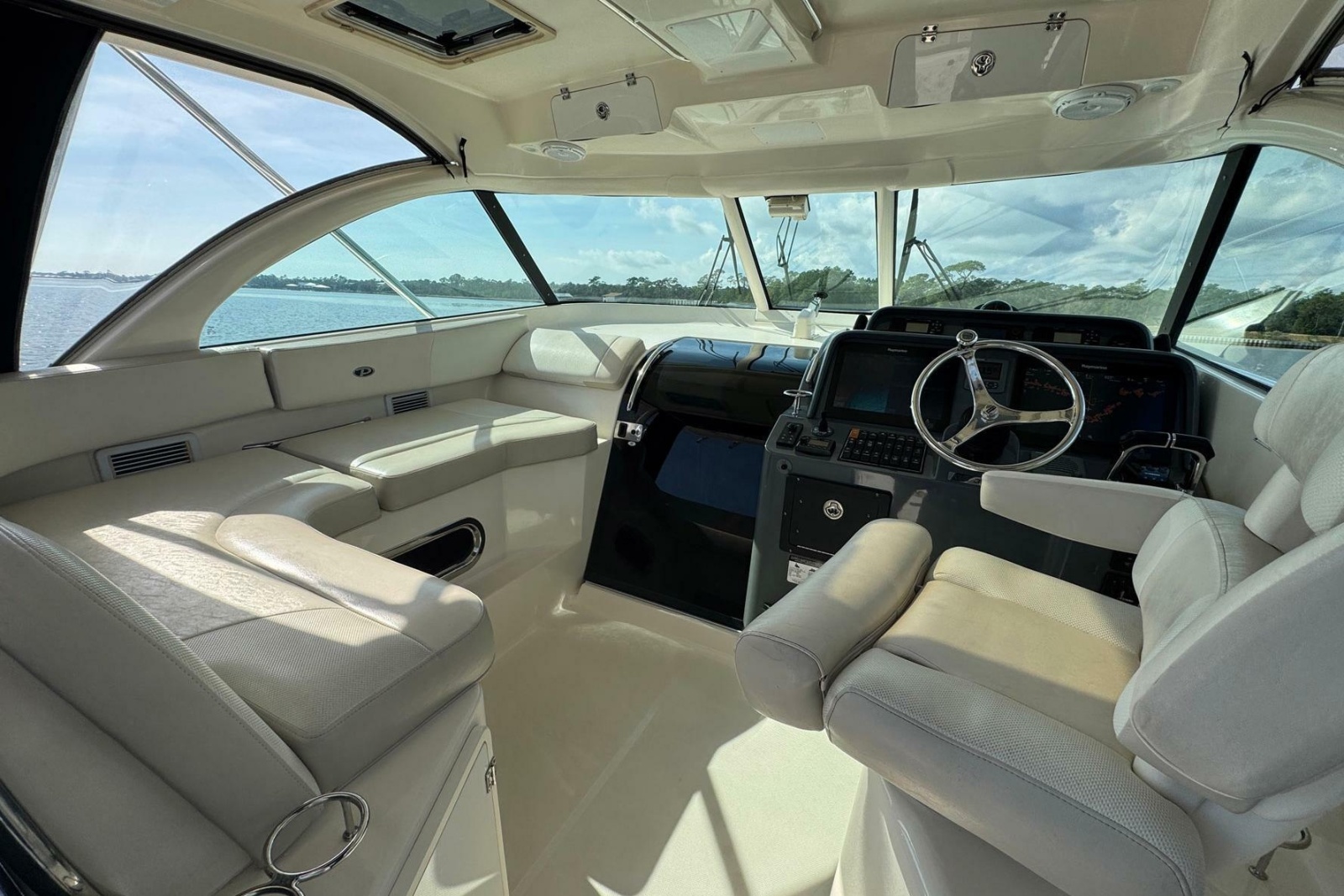

Molded port bridge lounge seating with large backrest, molded footrest and port armrest
Tackle/storage cabinet in aft side of bridge L-Shaped lounge
Pursuit cockpit stereo entertainment system with 12V Bluetooth compatible stereo system, Seven (7) Speakers (4) in hardtop, two (2) interior and subwoofer and amplifier; remote at helm
Molded entertainment center with sink, hot/cold mixing faucet, cutting board and hinged fiberglass lid and doors, storage below
Starboard side 64-quart refrigerator/freezer with digitally controlled thermostat and overboard drain
(2) Folding transom seats with patented adjusting backrests316L Stainless steel drink holders: three (3) on bridge lounge, two (2) at helm and two (2) in gunwale

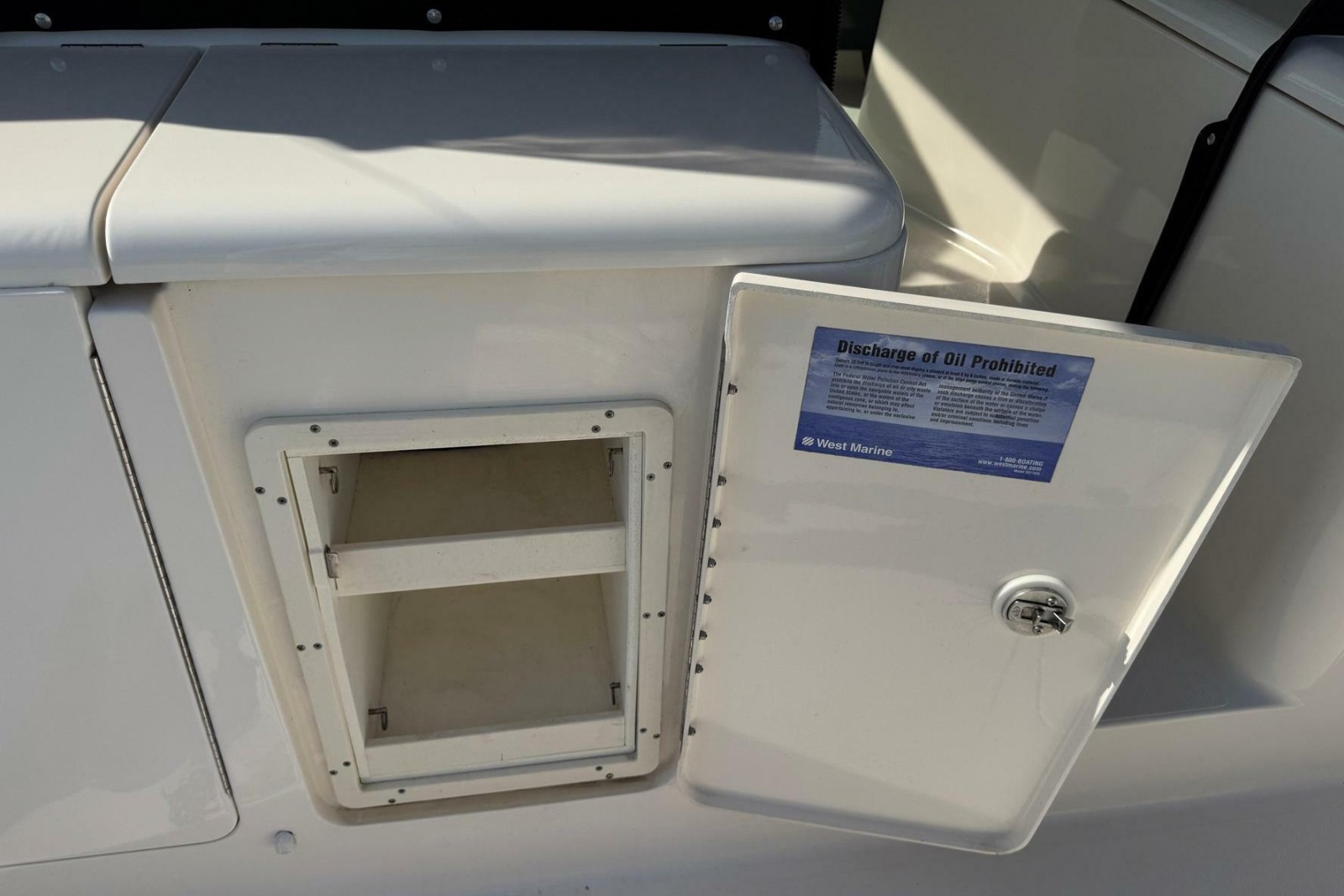

Cockpit machinery access hatch
Fresh water wash down with hot/cold mixing valve and chrome-over-brass pull-out sprayer at transom door
Raw water outlet in cockpit with quick-connect fittings and 25' hose
LED Cockpit accent lights
Acrylic sliding companionway door with lock/keeper, sliding screen, Interior and exterior hardtop handrails

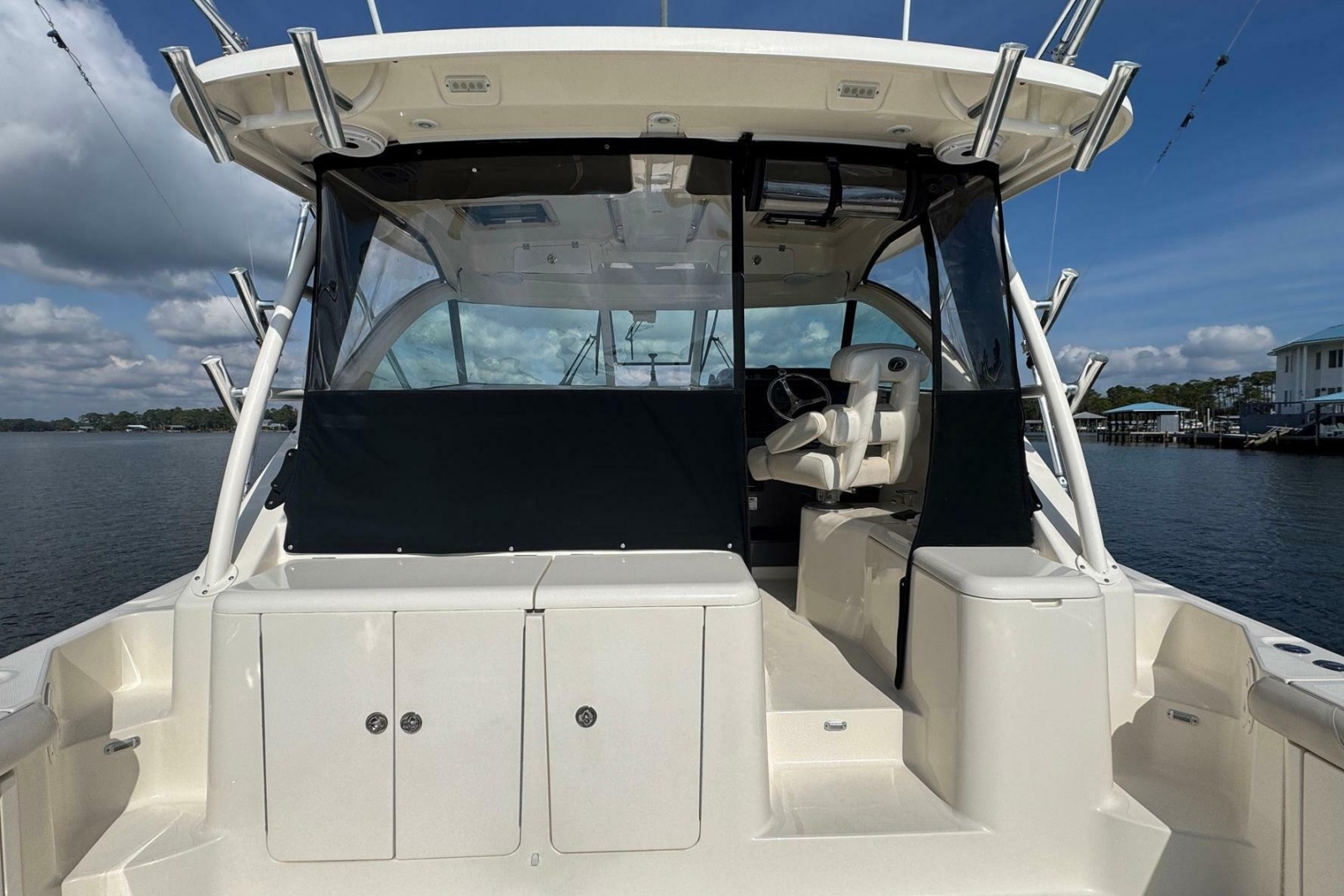

Hardtop with two (2) spreader lights, six (6) LED courtesy lights, four (4) recessed speakers, two (2) acrylic hatches, dual trumpet horns, and canvas storage pouches for PFDs
Poly footrest with non-skid pattern
Dockside fresh water inlet
240V Reverse-cycle air conditioning at helm, 16,000BTU
240V Grill with fiberglass cover
Trim tabs - Lenco electric with auto-retract
Lewmar bow thruster - 5.4hp (4.0 kW) Electronics: (2) ICOM M4240 VHF radios (new 2017)

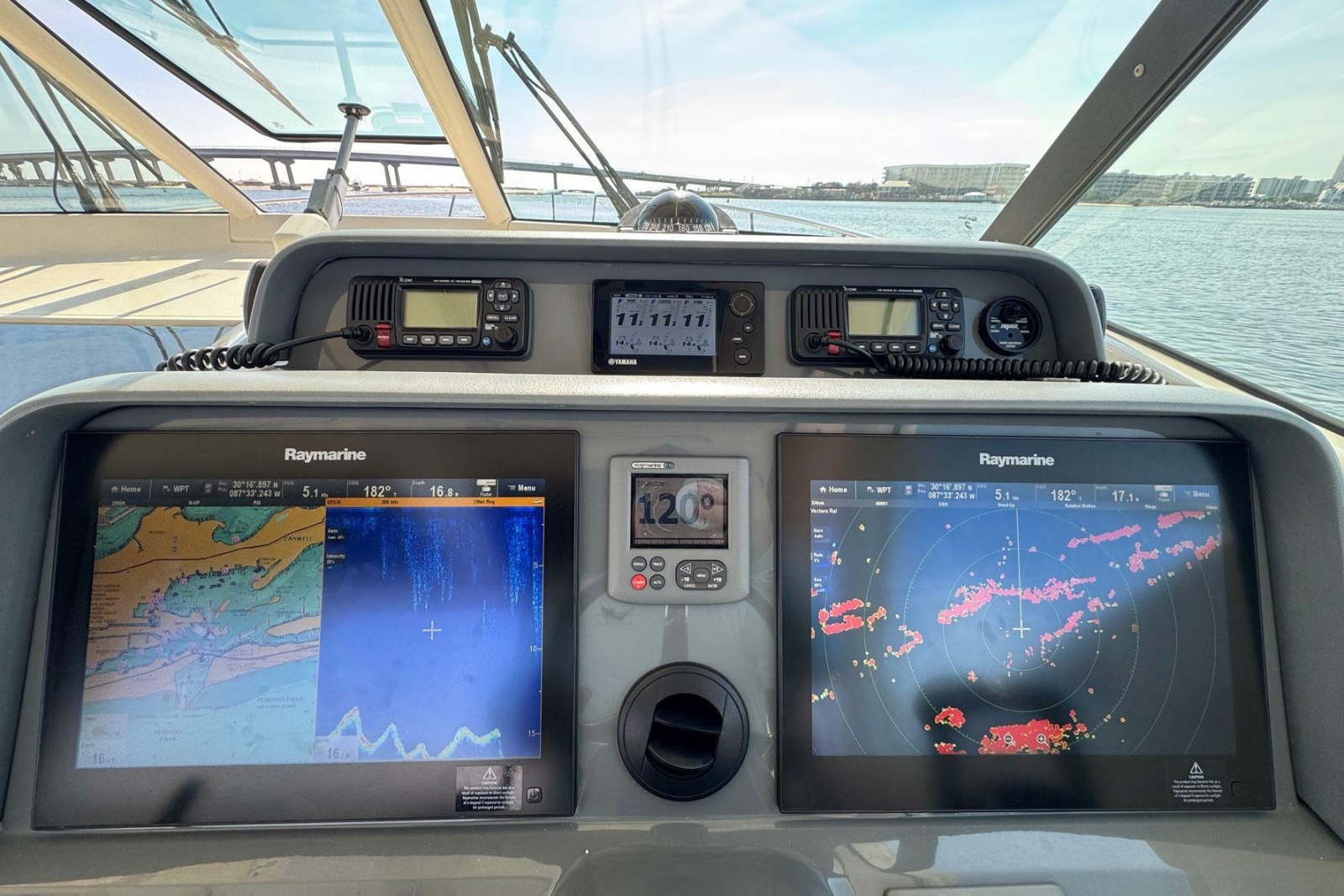

(2) Raymarine MFD GS125 with Seatalk, Yamaha gateway and auxiliary control module (new 2017)
Raymarine HD Magnum open array 4' radar, 72 nm (new 2019)
Raymarine autopilot with Yamaha gateway
Raymarine AIS Raymarine fish finder Head/Shower: Vacu-Flush electric head
Fiberglass head/shower with sump pump
Molded-in fiberglass shower seat
Acrylic shower door with stainless steel stanchion
Designer sink with hot/cold faucet18" towel bar
Corian vanity top
Vanity mirror
Storage underneath vanity
Framed head door with full-length mirror
110V Outlet, GFI protected Galley: 2-Burner Kenyon glass cooktop
Vitrifrigo stainless steel fridge and freezer drawers
Corian Galley countertop
GE microwave
Ample storage cabinets, above and below countertop
Drawers below sink area
Stainless steel sink with hot/cold mixing valve faucet
Trash bin with cover and removable container
110V Outlet, GFI protected Accommodations/Layout: Queen V-berth forward, TV, ample storage
Mid-cabin double berth
Large galley Head, sink and vanity with storage, separate stall shower
Ample storage throughout vessel Solid cherry and maple floor
Fiberglass interior headliner
Cedar-lined hanging locker, starboard
3-Switch panel with eight (8) overhead LED lights and four (4) accent lights
Accent lighting at Dinette base
Cherry table with adjustable pedestal
Dinette seating area with storage underneath; converts to berth
Mid-Cabin berth with one (1) adjustable reading light
Mid-Cabin settee
32" Flat Screen TV with DVD player
HD TV antenna
TV inlet and cabin outlets
V-Berth step lighting
Clarion stereo with Bluetooth streaming, six (6) speakers, subwoofer and audio amplifier
110V Outlets, GFI protected

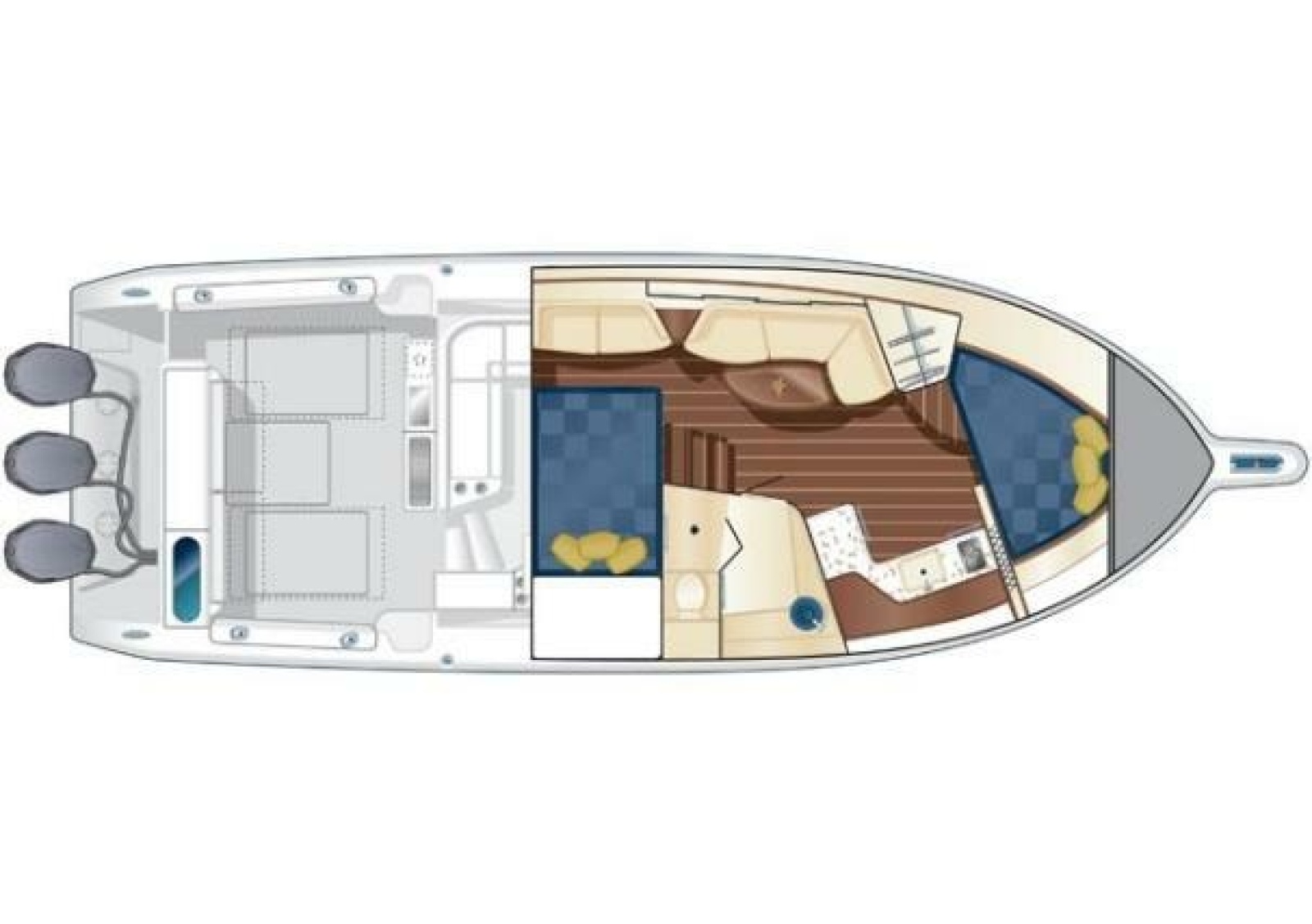

Helm is two (2) steps up from cabin, starboard, with captain's chair and refrigerated box aft

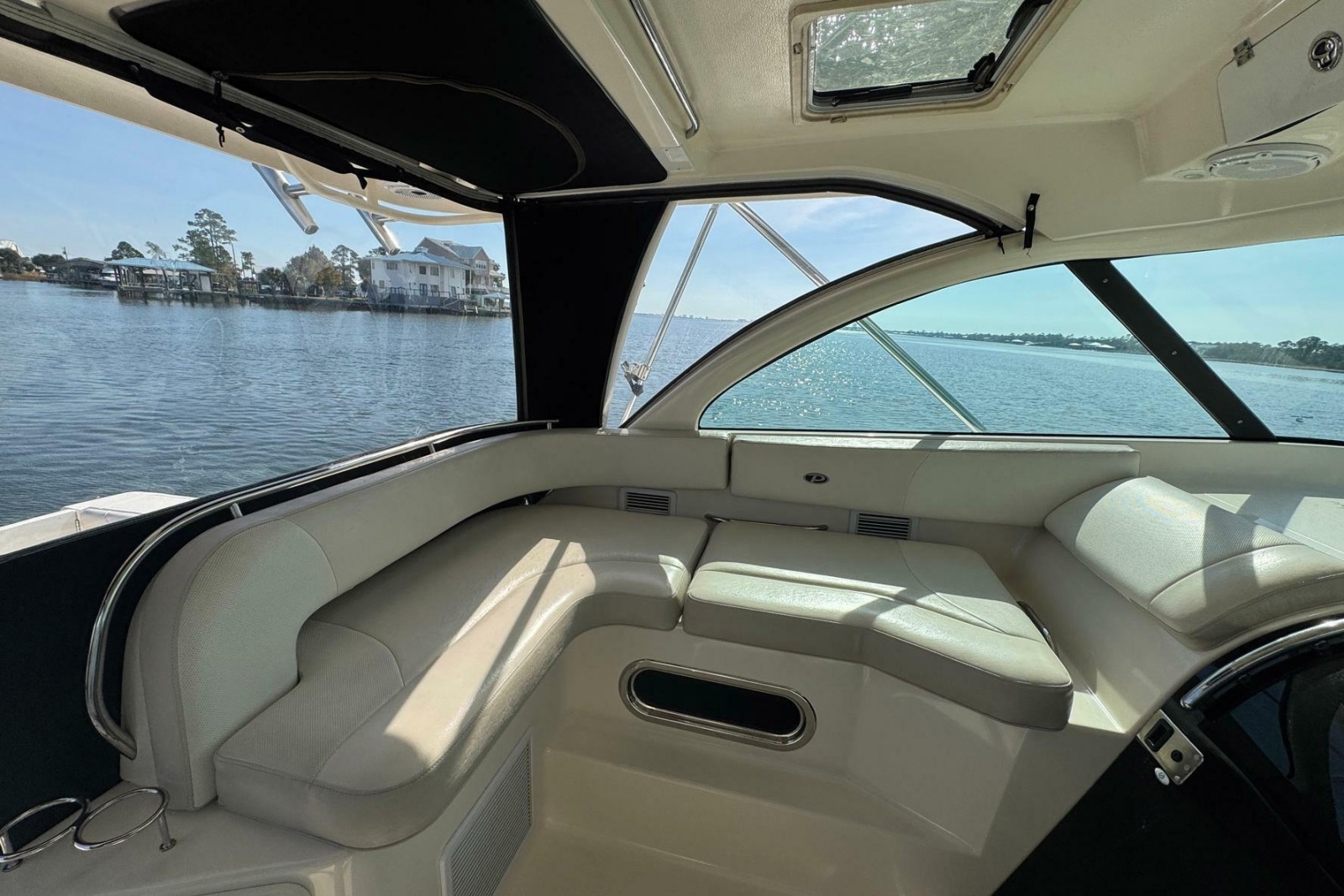

L-Shaped settee for guests to port
Two (2) steps down to the cockpit, sink with tackle center below and grill are to port
Fold-Down Forward-Facing transom seating with freezer and live well aft, starboard
Entry gate to port leads to outboard engines
