2013 Overmarine Mangusta 108

Builder: Overmarine MangustaModel: 108Year Built: 2013Refit: 2022LOA: 109' 11" (33.48m)Beam: 23' 4" (7.10m)Max Draft: 4' 6" (1.35m)Exterior Designer: Stefano RighiniInterior Designer: Sturge TothGuests: 6 in 3 cabinsCrew: 5 in 3 cabinsClassification: Bureau VeritasVAT: PaidFlag: Malta

Cruise Speed: 24 KtsCruise Speed Range: 420nmMax Speed: 30 KtsDisplacement: 106 tonsGross Tonnage: 184Water Capacity: 2,000 litersFuel Capacity: 14,000 litersGrey / Black Tank Capacity: 300 liters

Engines: 2Manufacturer: MTUModel: 16V 2000 M94 2600HPFuel Type: DieselPort Hours: 1620Starboard Hours: 1619Generators: 2 x Kohler 33EFOZD 33 kWPort Hours: 4087Starboard Hours: 4112

Stabilizers: 2 x Gyro Zero Speed Stabilisers (ITEM Mare)Gearbox: 2 x ZF type BW (4600)Steering / propulsion: Steering KaMeWa Water JetsWater makers: Idromar with UV sterilizer MC5S 240 l/hr Fuel Cleaning System: 100 litres (26 US gallons)Angle Indicators: Rolls Royce System Analog and Digital Bow Thruster: BCS Hydraulic 47kW/63HPFuel Filters: Separ SWK 2000/40/UMSFuel Oil Separators: MTU KFWA3Bilge Pump: Gianneschi ACM 401 BT 15kW 400VFire Pump: Gianneschi ACM 401 BT 2.2kW 24V-DCSewage Treatment: Hamann Super Mini WC's: TECMA Vacuum system (total x 7)Ventilation: 6x 380V axial flow fan/blowers

Voltage 24 VShore power: 380 V

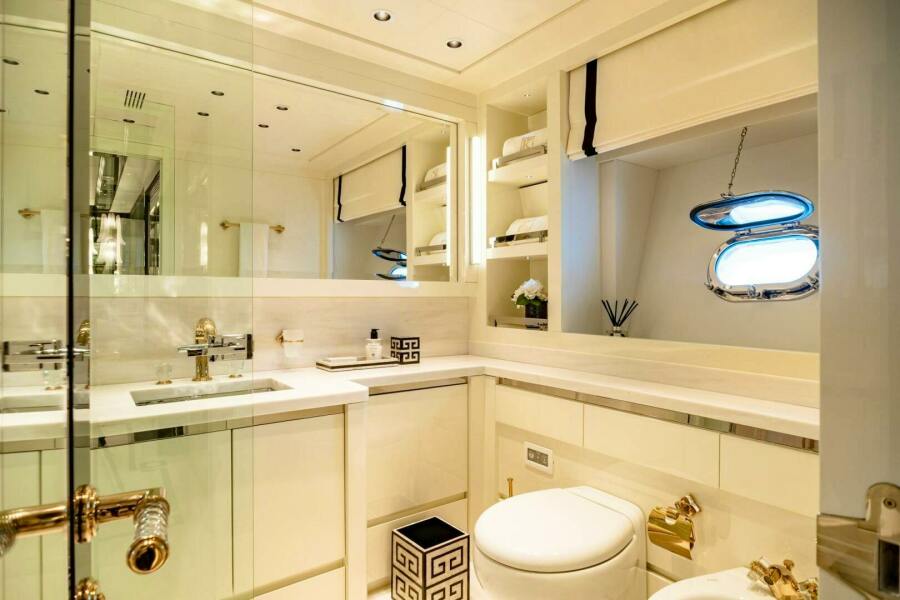

Crew quarters are aft, accessed from the main salon, with guests forward.Master Stateroom King Size double Bed. WardrobesBathroom – Shower / Sauna. VIP Stateroom Queen Size double BedWardrobeSofaBathroom - ShowerGuest Stateroom 1 Twin BedsWardrobeBathroom - Shower Crew Cabin 1 Captain and First Mate Cabin. 2 bedsBathroom with shower and basinCrew Cabin 2 Interior Crew and Chef Cabin. 2 bedsBathroom with shower and basin.Crew Cabin 3Cabin/Storage area. 1 bed

1 x Oven – Miele1 x Microwave – Miele1 x Cooking Hob – Miele1 x Extractor Fan – Miele1 x Dishwasher – Miele2 x Fridge/Freezer – Frigit in galley1 x Washing Machine – Miele1 x Ice Maker1 x Tumble Dryer – Miele1 x Freezer Forward Bilge

1 x VHF DSC (crew area) - Simrad RS821 x Transceiver - Simrad RS801 x Speaker - Simrad LS801 x Intercom Phontech - Jotron CIS31001 x Radiotelephone simplex GMDSS - DSC- Class A - Sailor VHF – 62221 x Satellite antenna Tracvision in dome M9 - KVH KTV-M91 x Dome M9 – KVH1 x Thermocamera + Joystick control unit - FLIR - M324L

2 x NSO Processor box with card reader and charts Navionics Silver + chart Navionics Platinum plus 33+P – Simrad1 x Keyboard Control Unit - Simrad OP401 x Radar Scanner 6Kw , 4” ft - Simrad TX06-13 x Multifunction Graphic Display - Simrad IS202 x Hull Trasducer 50/200, 600W - Simrad B744V1 x Broad band sounder Interface - Simrad BSM-1 x Antenna GPS, 5HZ - Simrad GS151 x Wind Display - Simrad IS201 x Wind Sensor - Simrad IS201 x GPS Gyro Compass - Simrad HS701 x Gyrocompass repeater - Simrad HR801 x Autopilot - Simrad AP501 x Kamewa Interface - Simrad AD501 x Remote Control - Simrad QS502 x Monitor 15” – Boening1 x Monitor 19” - Boening1 x AIS Automatic Identification System - Class B - Simrad AI501 x Navtex - Furuno NX700B

2 x Lofrans Anchor Windlass 3kW 400VCapstans – 2 x Lofrans 400VAnchors – 2x 145KG eachAnchor Chains – 2x 14mm 125m eachBensenzoni gangway with teak grating and hand railsSwim platform – Swim ladder in teak and stainless steel2 x Besenzoni cranes for jet skis and tenderPVC covers

Control levers to open CO2 system on deckCO2 fixed station in engine room2 x 8 pers ARIMAR Life raftsSmoke sensors in all interior areasCentral fire alarm panel with heat sensors in galley and engine roomSecurity system with cameras in engine room and deckAlarm panel on bridge20 x life jacketsFire extinguishers throughout

1 x Castoldi diesel Jet Tender 15’’ / 4,45m 110 CV2 x Yamaha Wave runner 1300 / 163 hp
