2024 Hargrave Raised Pilothouse

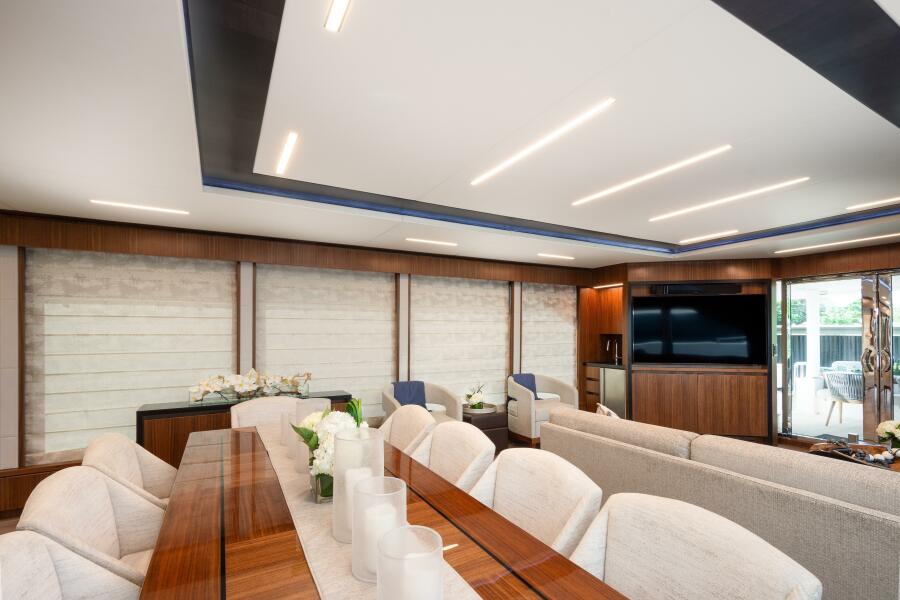

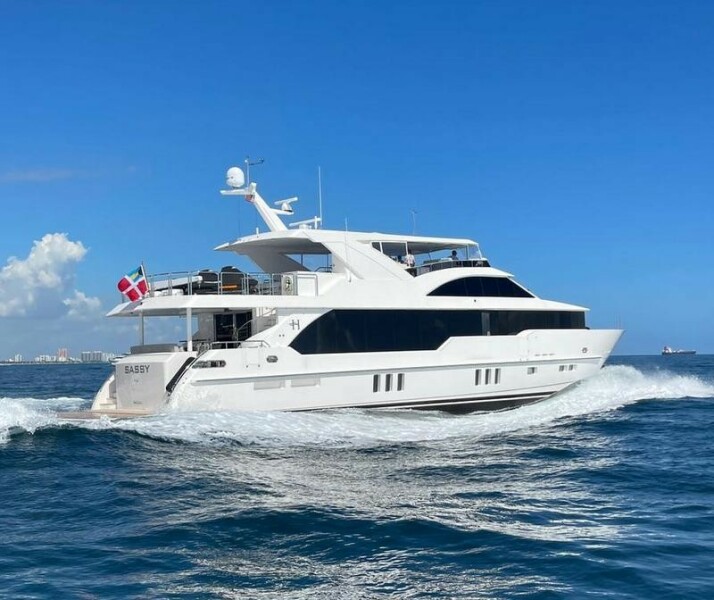

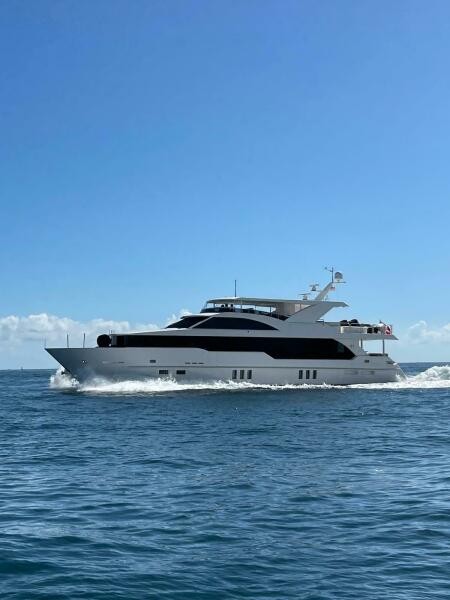

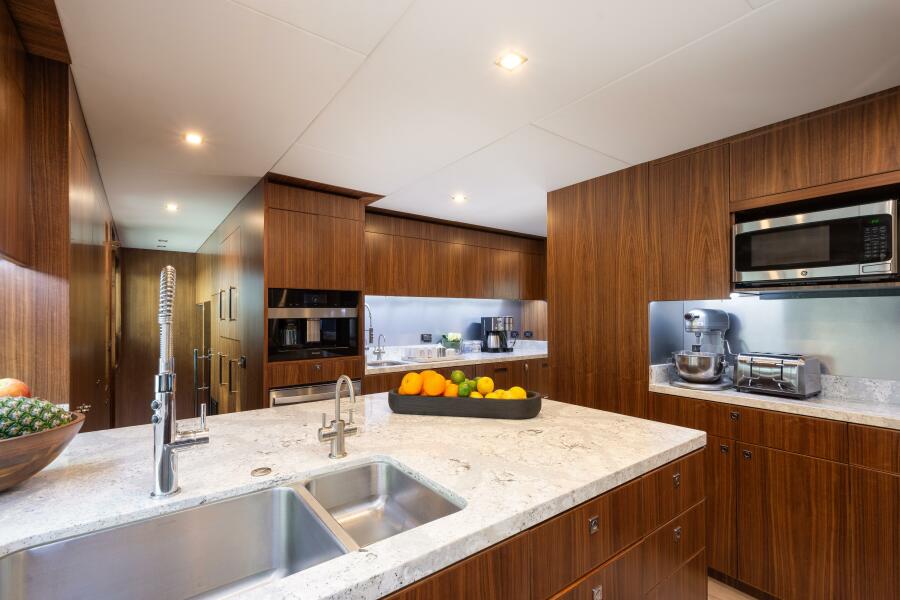

102’ Hargrave Raised Pilothouse – Hull 678This 102’ Hargrave Raised Pilothouse represents the finest of Hargrave’s custom yacht program. Hull 678 was built for an experienced owner with upgraded engineering, quiet operation, and luxurious interior appointments by Yacht Interiors by Shelley. Powered by twin CAT C-32 2000 HP engines and set on Hargrave’s proven 102’ x 21’ beam platform, the yacht offers exceptional performance, extended cruising capability, and spacious owner/guest accommodations.Principal Dimensions & PerformanceLOA: 101’Beam: 21’Engines: Twin CAT C-32, 2000 HPGenerators: (2) Northern Lights 38 kWFuel: 3,200 gallonsWater: 600 gallonsStabilizers: Naiad 302 with Datum controlBow Thruster: Hydraulic 48 HP, 16” tubeHull & ConstructionHand-laid fiberglass hull with foam-core reinforcementVacuum-bagged stringers bonded to hullFRP superstructure, decks, and bulkheadsV-shaped keel with longitudinal stringersTeak or non-skid exterior deck optionsStainless steel portlights and deck fittingsCustom fiberglass swim platform with ladderStainless steel handrails, cleats, and hawse pipesTransom with integrated stepsAquamet shafts and bronze running gearSea chest and Groco sea strainersEngineering & MechanicalEngine Room & MachineryUnderwater exhaust with idle bypassRacor 1000 FG engine filters (double Racors for redundancy)Racor 500 MA10 genset filtersOberdorfer fuel transfer pumpReverso oil change system (engines, gears, generators)Hydraulic Hynautic steering with autopilot capabilityDelta “T” ventilation systemAdditional insulation for quiet rideTide Seal dripless shaft logs and rudder sealsElectrical Systems220V/110V/60Hz electrical systemMastervolt chargers: 80A/24V, 30A/24V, 30A/12V(2) 100-amp MasterVolt AC/DC transformers(8) 200-amp/hr batteries for ship & engine systems(2) Glendinning 100-amp Cablemasters (125' cords)Newmar 50A 24V-to-12V converter100-amp galvanic isolatorStabilization & ThrusterNaiad 302 stabilizers w/ 12 sq. ft. fins and Datum controlBackup stabilizer & bow thruster hydraulic pumpsPVC-shielded hydraulic line protectionExterior & Deck EquipmentBowFRP bow seating with storageEight waterproof deck lightsStainless umbrella baseMaxwell Nilsson VW4000 windlass210 lb stainless steel anchor with 300’ chainQuartz floodlightsAft DeckBuilt-in bench seatingTeak table (sliding & hi-low)Wet bar with sinkStorage lockers & ladder lockerTV on an electric liftStainless baby gatesTeak deck chairsFlybridgeCustom hardtopLarge granite-top wet bar with stoolsHot tub with FRP seating & whirlpoolL-shaped seating with coffee tableStainless rails and footrestsFire Magic grill stationRefrigerator drawers, wine cooler, ice makerHelm chair with storageSliding hatch from pilothouseSwim PlatformCustom FRP platformStainless U-railsPop-up cleatsFreshwater showerInterior – Designed by Yacht Interiors by ShelleyGeneral InteriorWalnut cabinetry & Toseva veneersVinyl-covered headliner systemRecessed tray ceilings & custom soffitsCantalupi LED lightingVimar switches w/ dimmersMarble & granite surfacesItalian hardware & German latchesMain SalonCustom cabinetry and furnitureDecorative rain-glass panelsMarble-top bar with sinkThree bar stools in Pearl GrayGlass shelving & bottle storageCustom club chairGlass cocktail tabletopGalleyGranite countersMarble backsplashStainless railings & handrailsPneumatic lift-up steps for storageHafele pull-out pantry systemMultiple utensil drawersLower Foyer & Guest AreasMarble floors with stainless inlaySamdam K-Pro sound insulationMirrors on closet doorsCustom upholsteryPneumatic lift beds in the Master cabin & Captain’s cabinSliding bed mechanisms (Captain & Starboard Guest)Master SuiteFull-beam layoutMarble counters, flooring & showerDual Kohler sinksFrameless glass shower doorNon-slip shower floorMarble shower seatVIP & Guest HeadsMarble floors & countertopsGrohe fixturesFrameless glass doorsMarble shower seatsAppliancesGalleyGE Profile refrigerator, oven, cooktop, microwaveSub-Zero integrated fridge drawerGE dishwasher & disposalGE trash compactorFranke stainless sinkBlanco chrome faucetSalonU-Line ice makerGE ice maker w/ panel kitKohler bar sinkAft DeckU-Line refrigerator and ice makerFlybridgeSub-Zero refrigerator drawersU-Line wine coolerWhirlpool 68" spa tubFire Magic grillScandvik faucetLaundryGE washer/dryer sets (lower foyer & crew lounge)Crew & Service AreasSeparate crew loungeWasher/dryer setsPullman berth in the forward crewPneumatic storage accessExcellent machinery access throughoutNavigation & AVSee the separate detailed electronics and A/V equipment list.(Will be inserted once we receive it.)USA-Installed OptionsFull safety packageLife raftsQuick Lift 2000 lb davit1500 GPD BWD watermakerStidd 500N Admiral helm chairUMT Sea StairsInterior Décor Package (YIBS)Includes carpeting, upholstery, drapery, spreads, chairs, stools, lighting, hardware, fixtures, and complete interior design services.
